WHATEVER THE WEATHER
GO FURTHER ON YOUR JOURNEY



Less sportsboat, more Gran Turismo, the Axopar 28 Cabin opens up a world of possibilities for extended voyages and longer average journey times and with the Aft Cabin option, this is our biggest selling model so far.



*Starting price: 44 950 €



Previous Axopar 28 model range awards:

awards

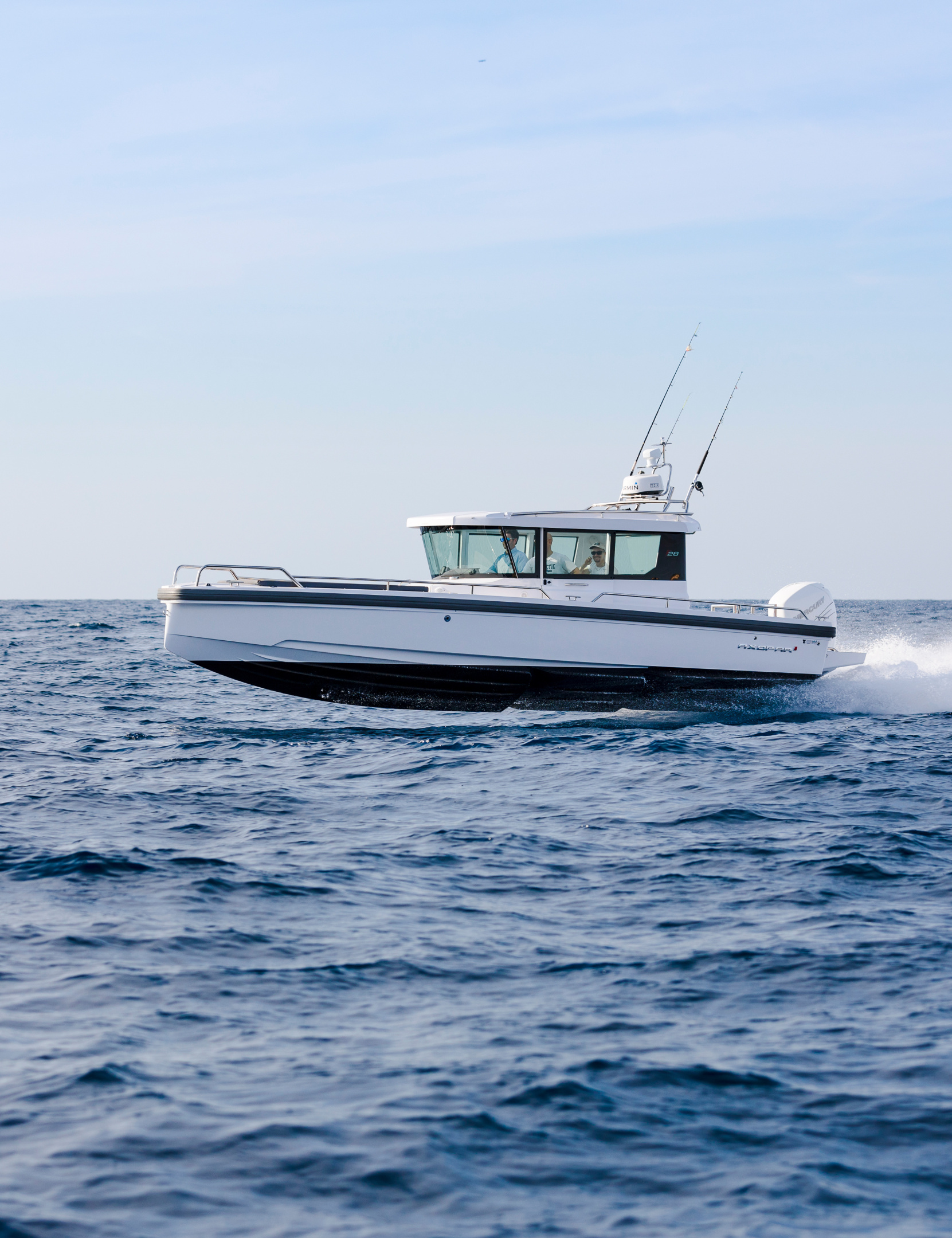

AXOPAR 28 CABIN

EXPLORE A WORLD
OF ADVENTURES

WATCH THE VIDEO

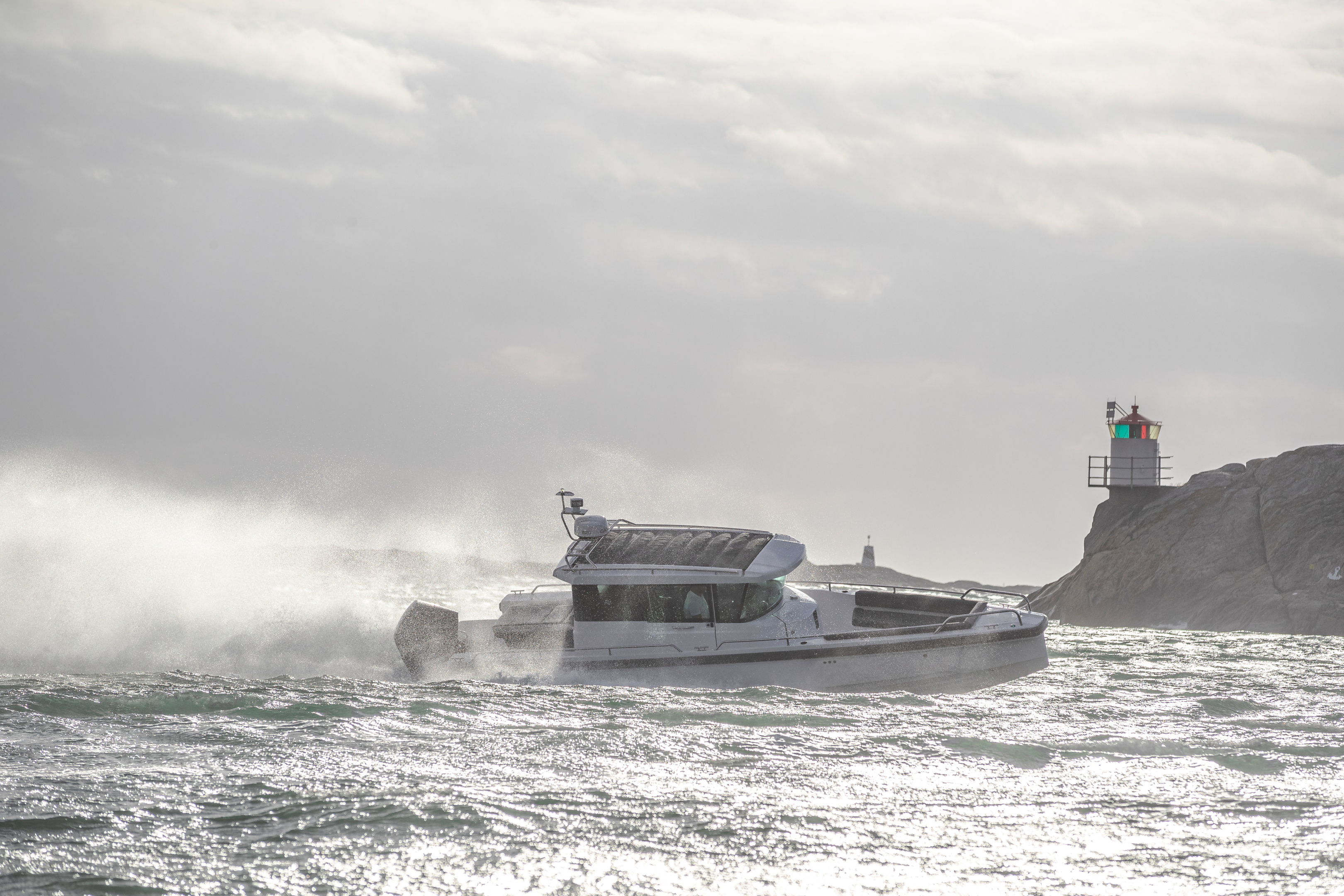

Boating people know the weather can be an unpredictable force and being caught out in a rain storm, or being buffeted by strong wind for hours on end can be tiring.

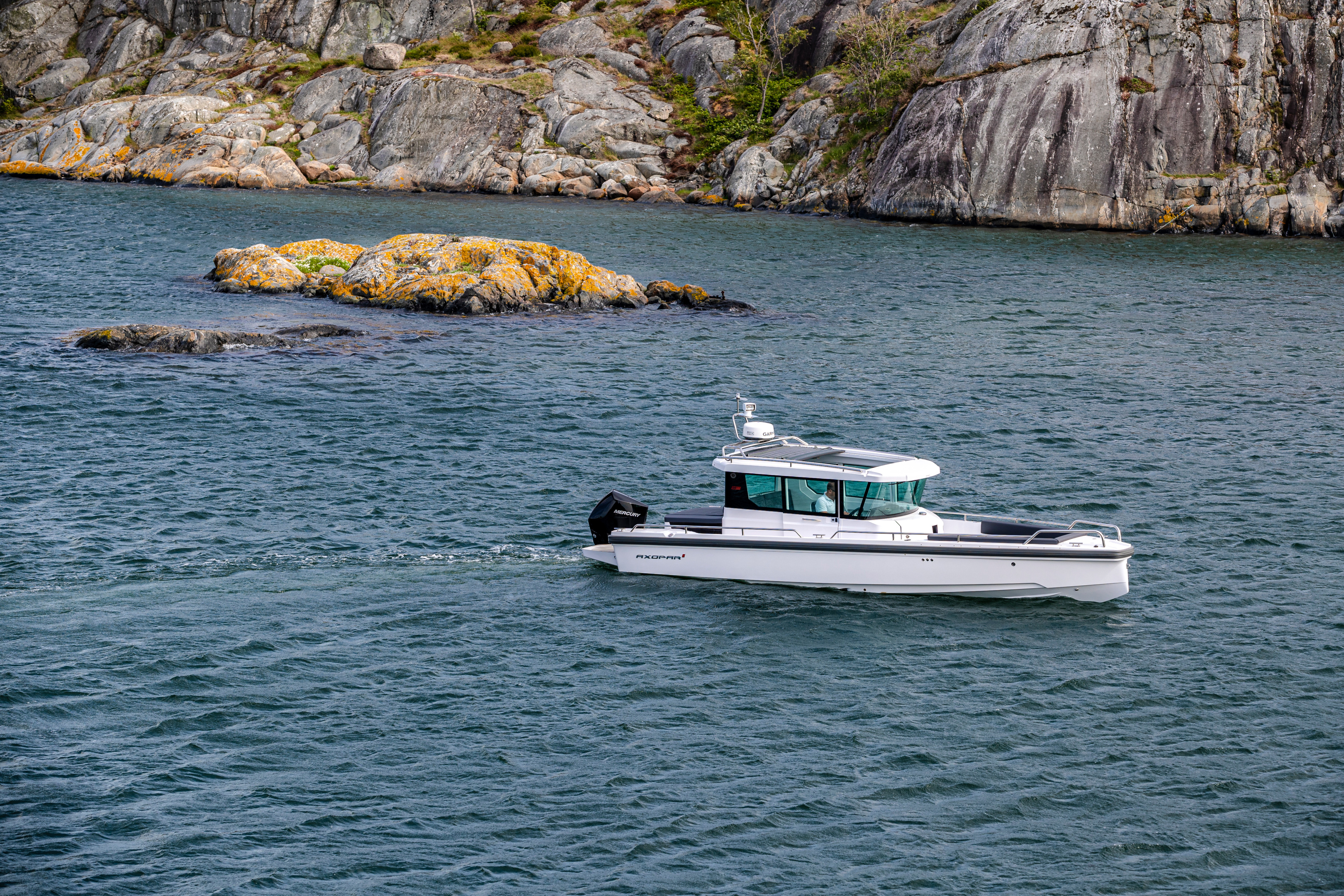

AX28 2018 Cabin 1

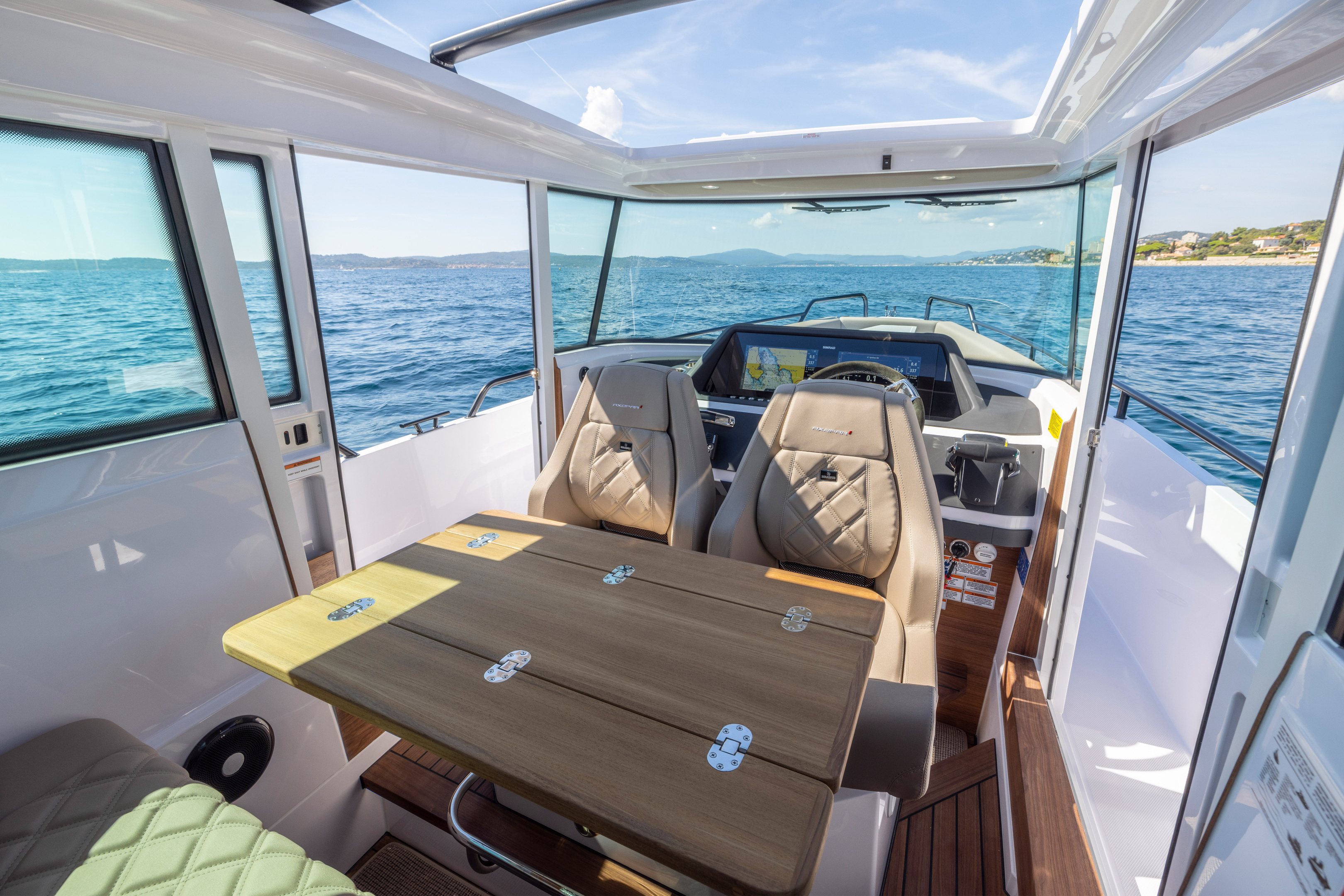

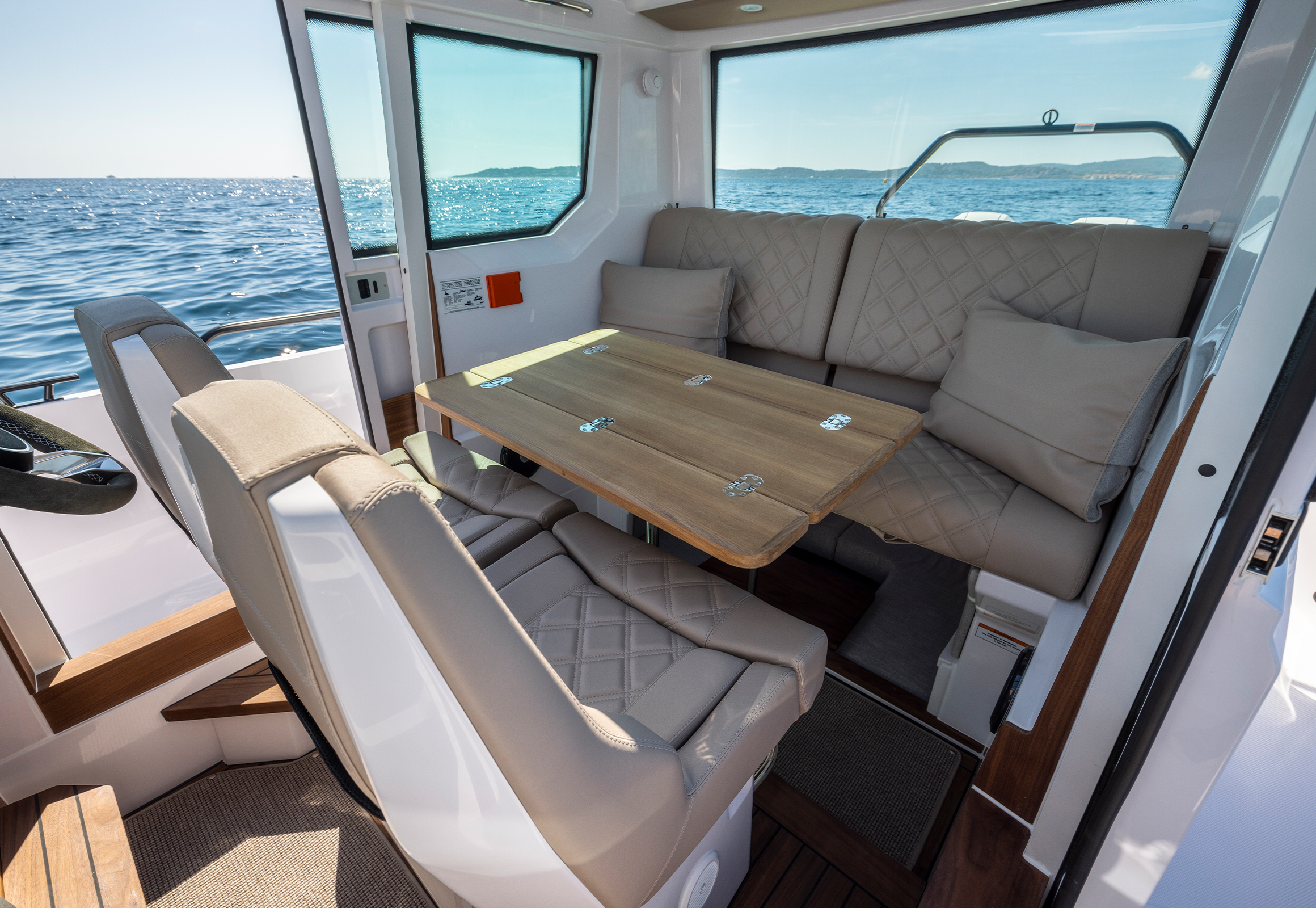

With capability of seating up to five people within a bright and airy, full weather protected environment, there’s ample incentive for an owner and guests to spend not just a few hours onboard, but several days and even weeks enjoying their Axopar Cabin version to the full.

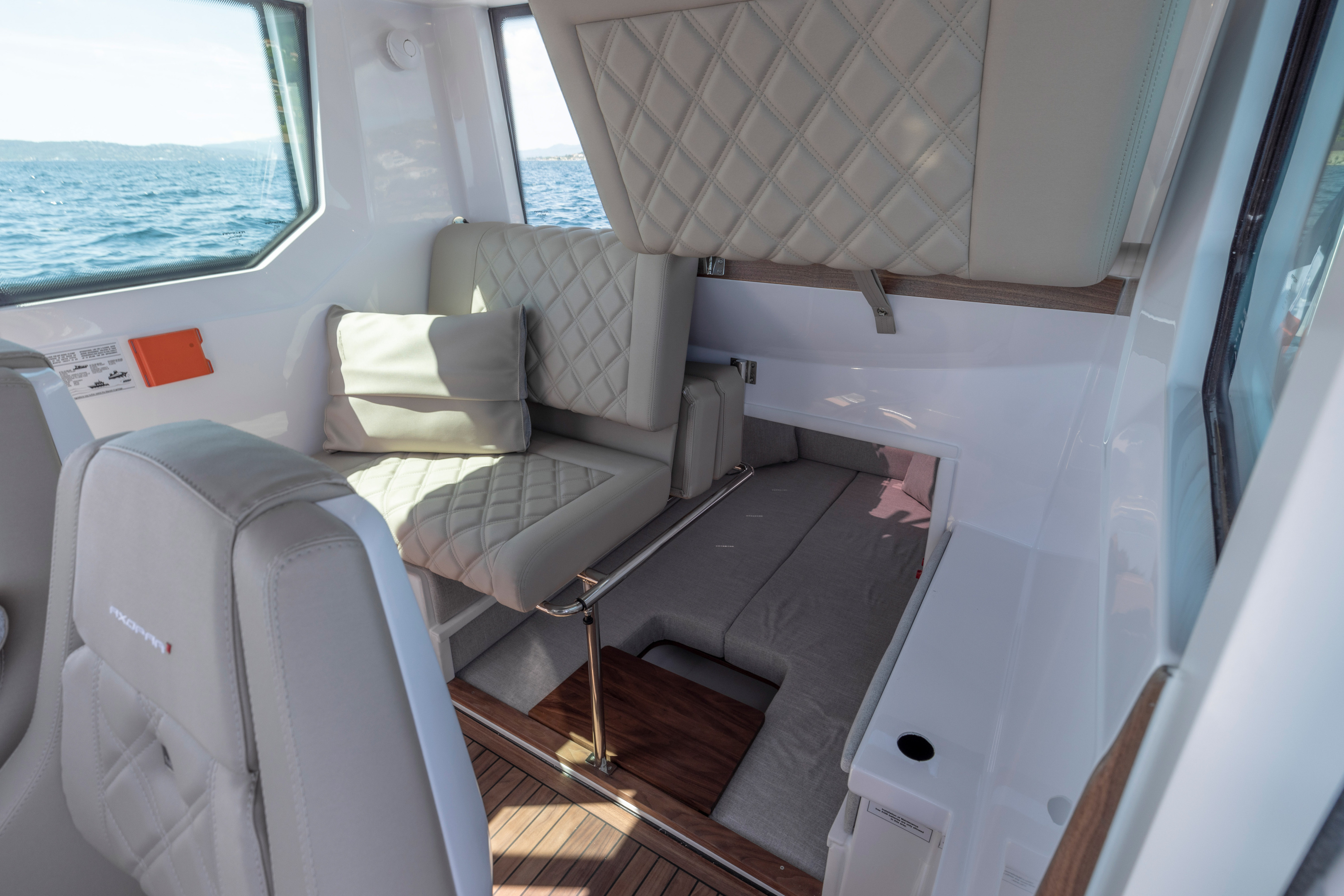

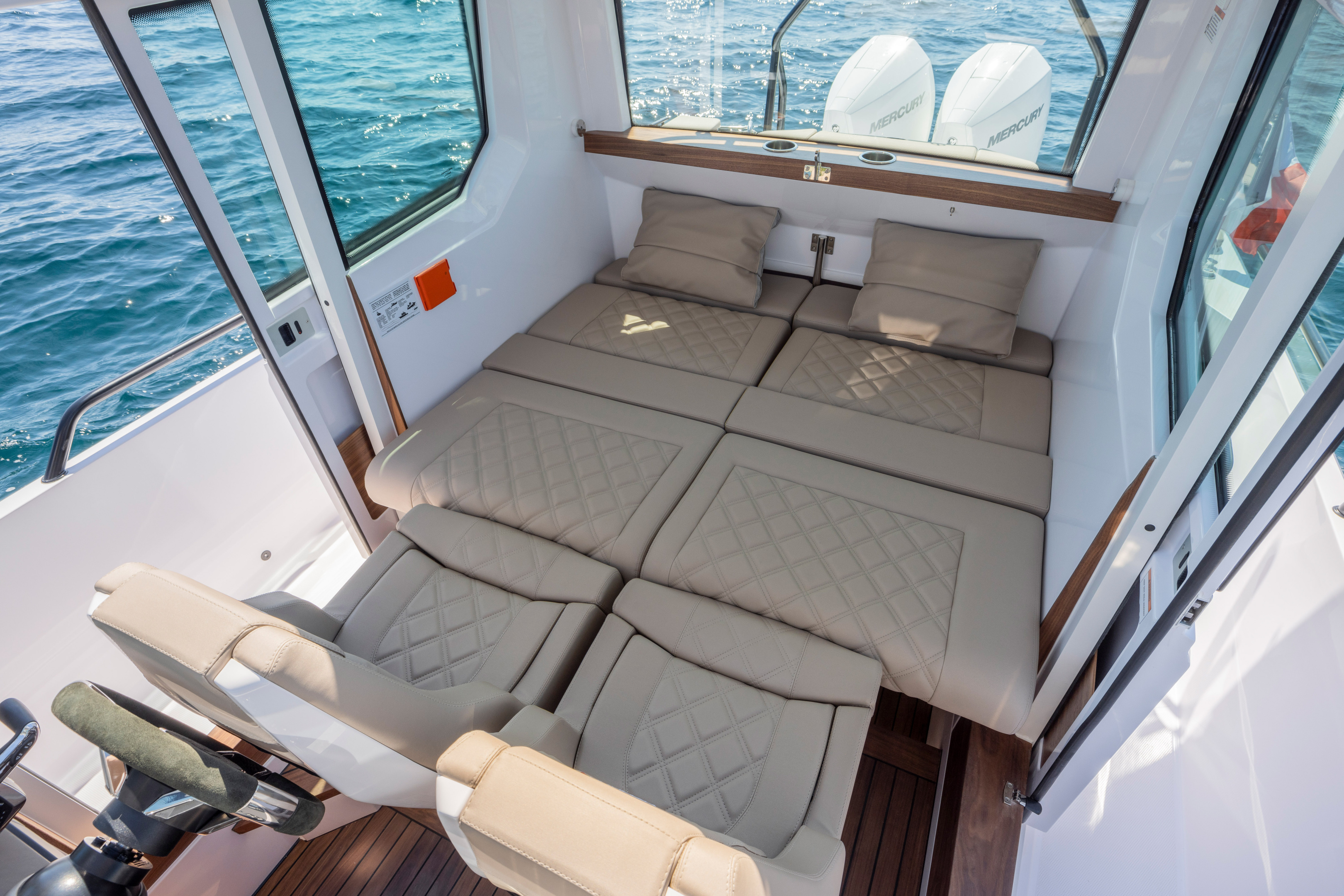

The cabin does offer occasional sleeping possibilities for one or two, but customers find the Aft Cabin option is an even better solution for genuinely comfortable, dedicated overnight stays and drop-of-the-hat weekends away will soon become your boating norm.

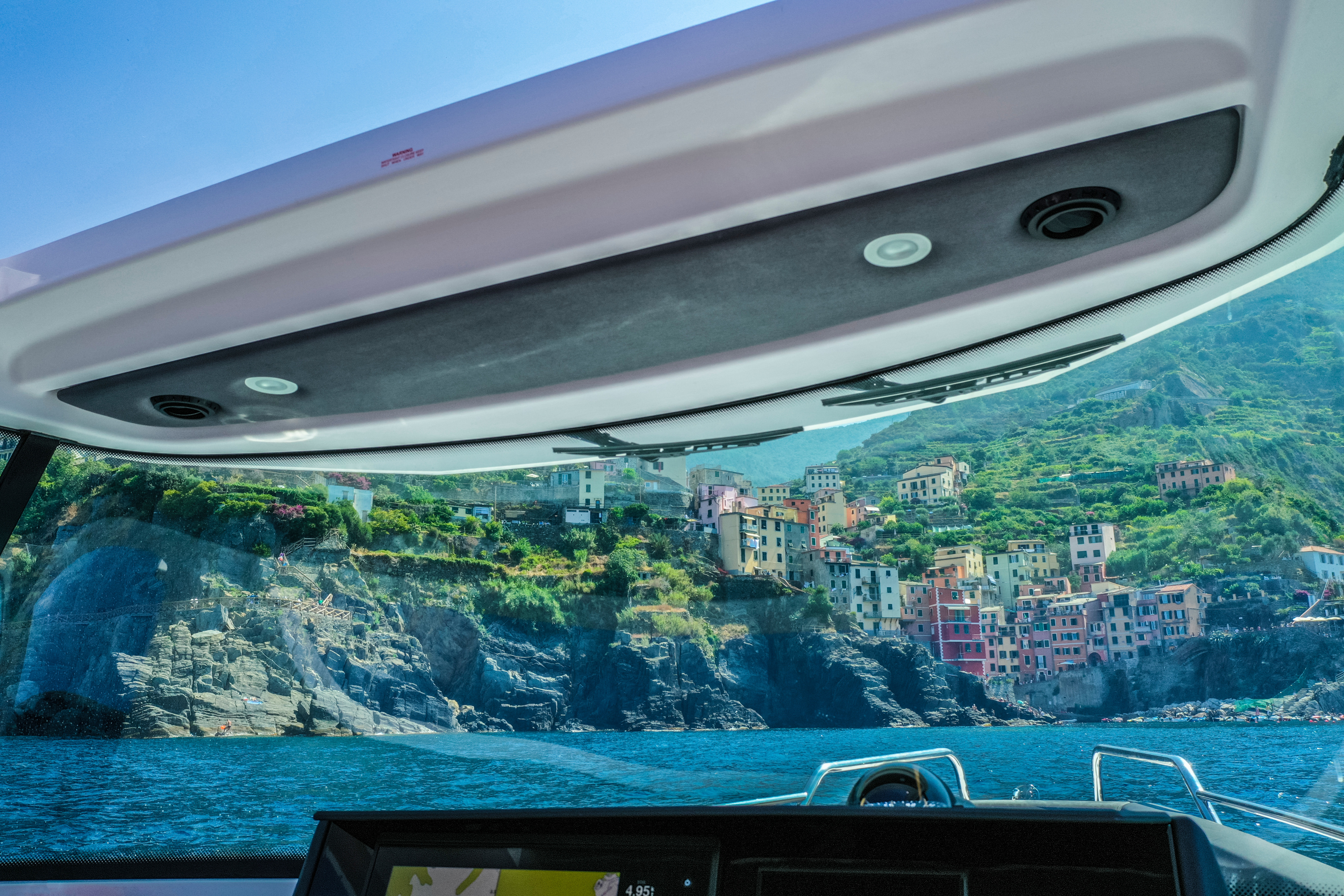

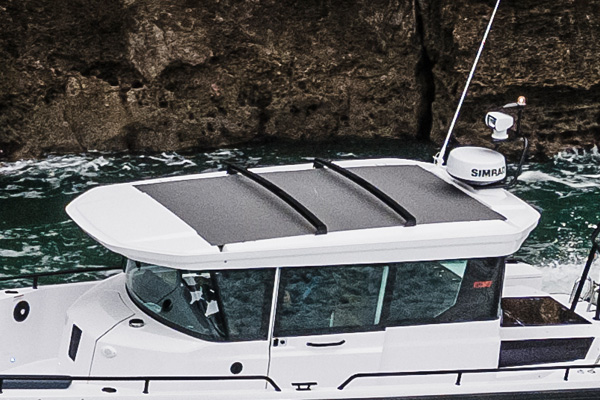

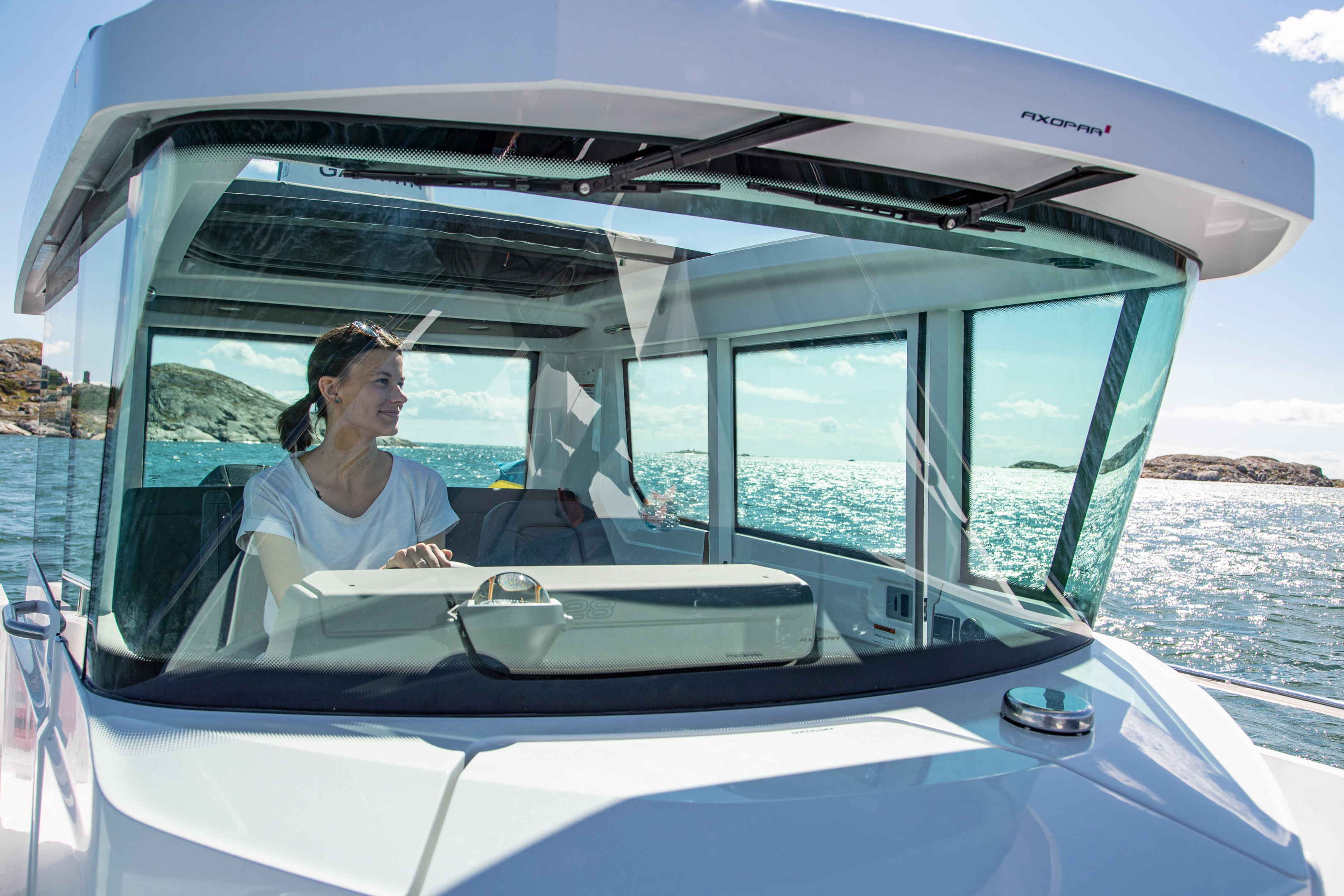

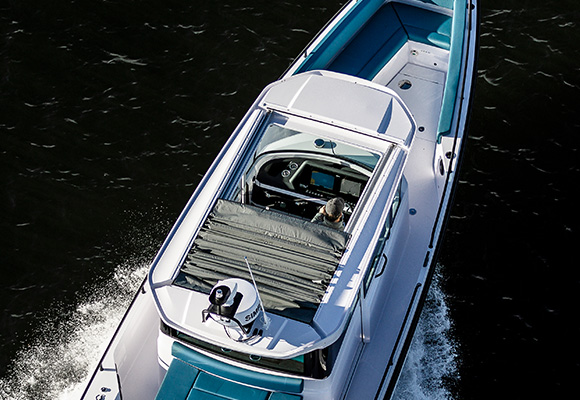

Above the cabin there’s a full-length Webasto manual sliding canvas roof that loves to be thrown open at any time and large, side-opening doors either side, mean there’s natural light and ventilation always readily to hand.

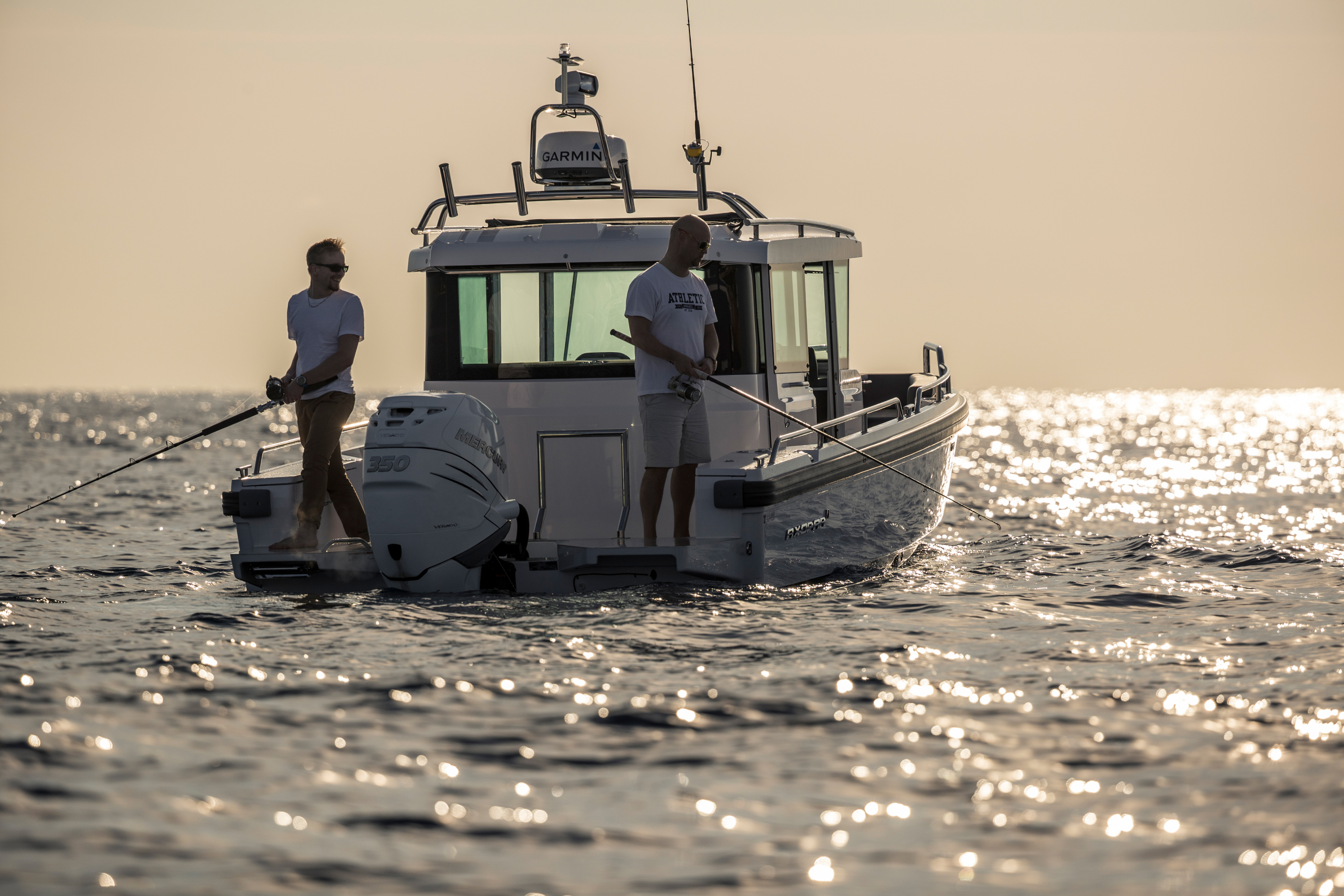

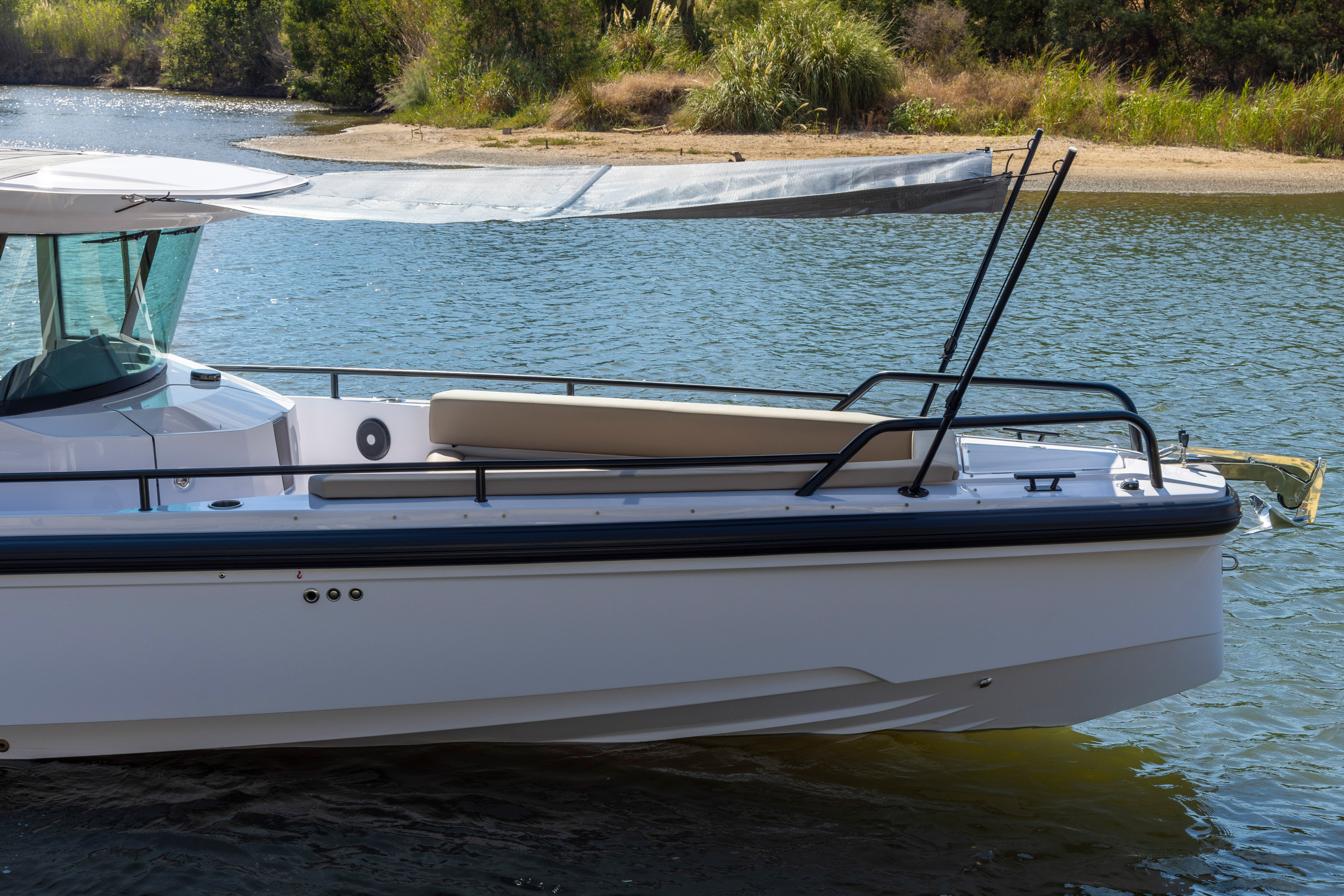

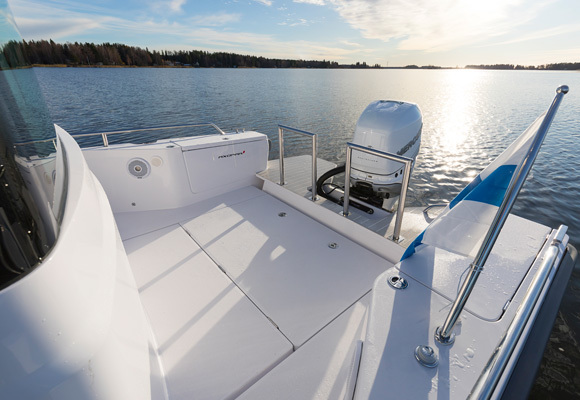

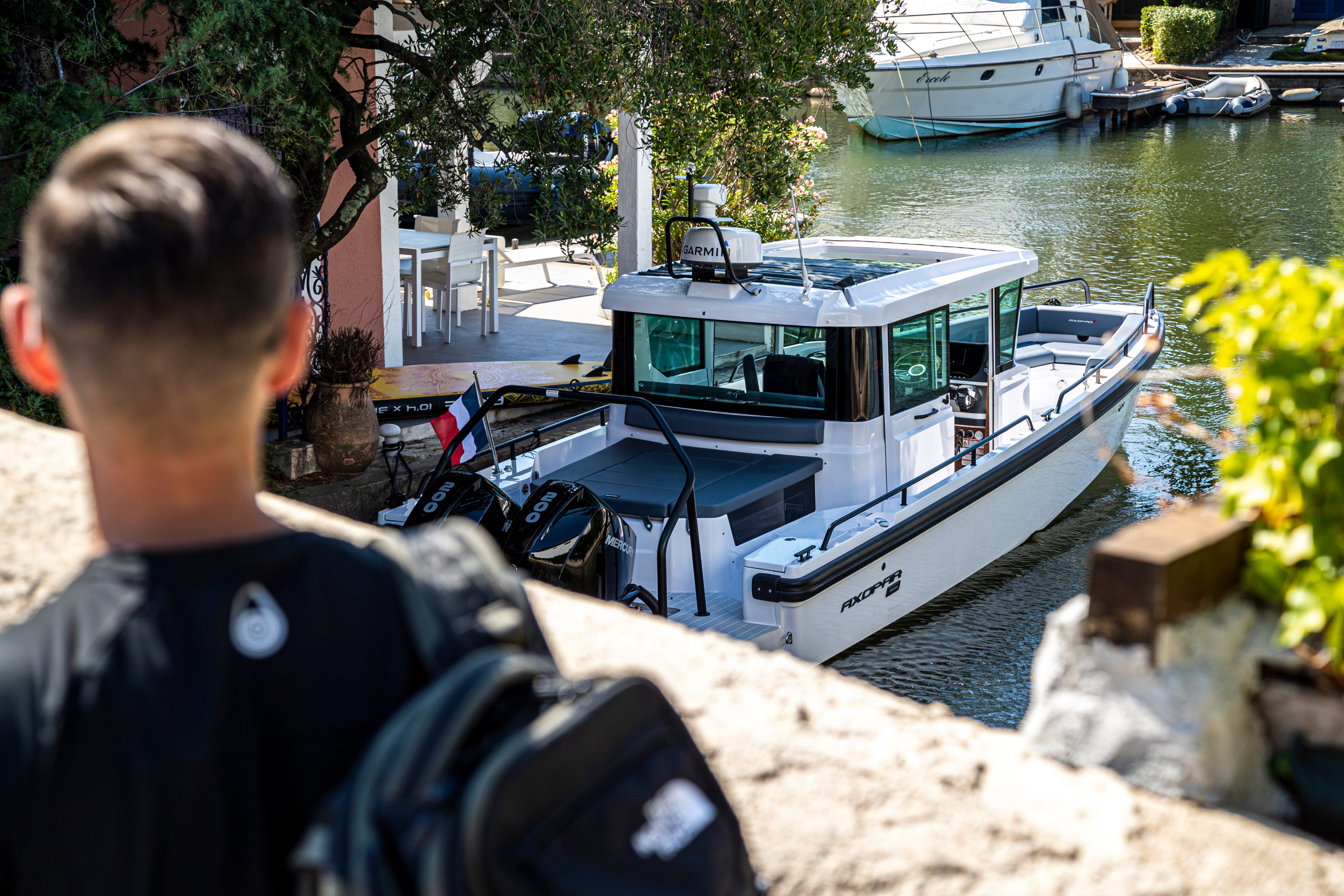

Versatile by design, the walkaround side access and aft-deck in standard form is a large, flat and practical space that works well as a home for fishing, or water-sports activities and such-like.

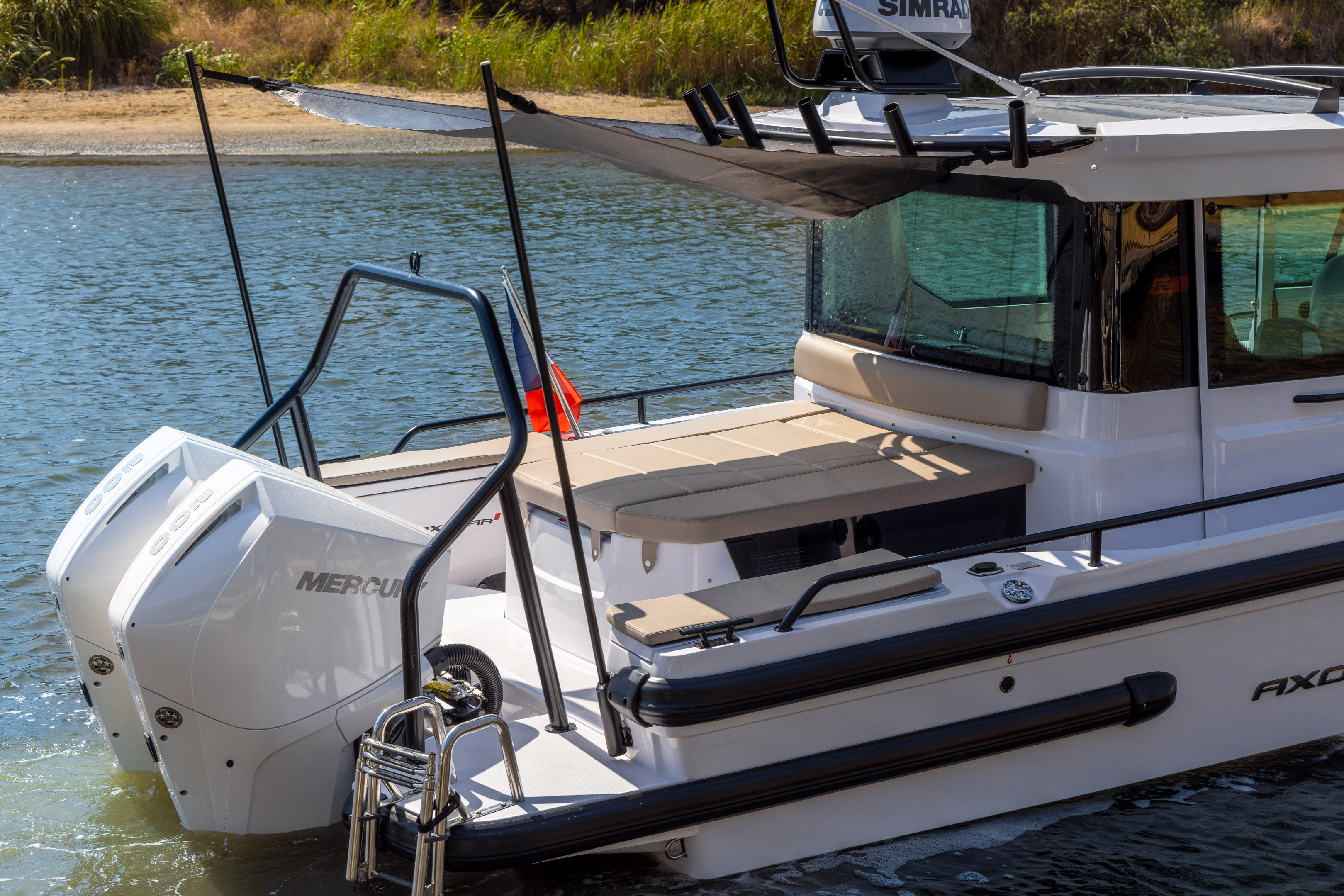

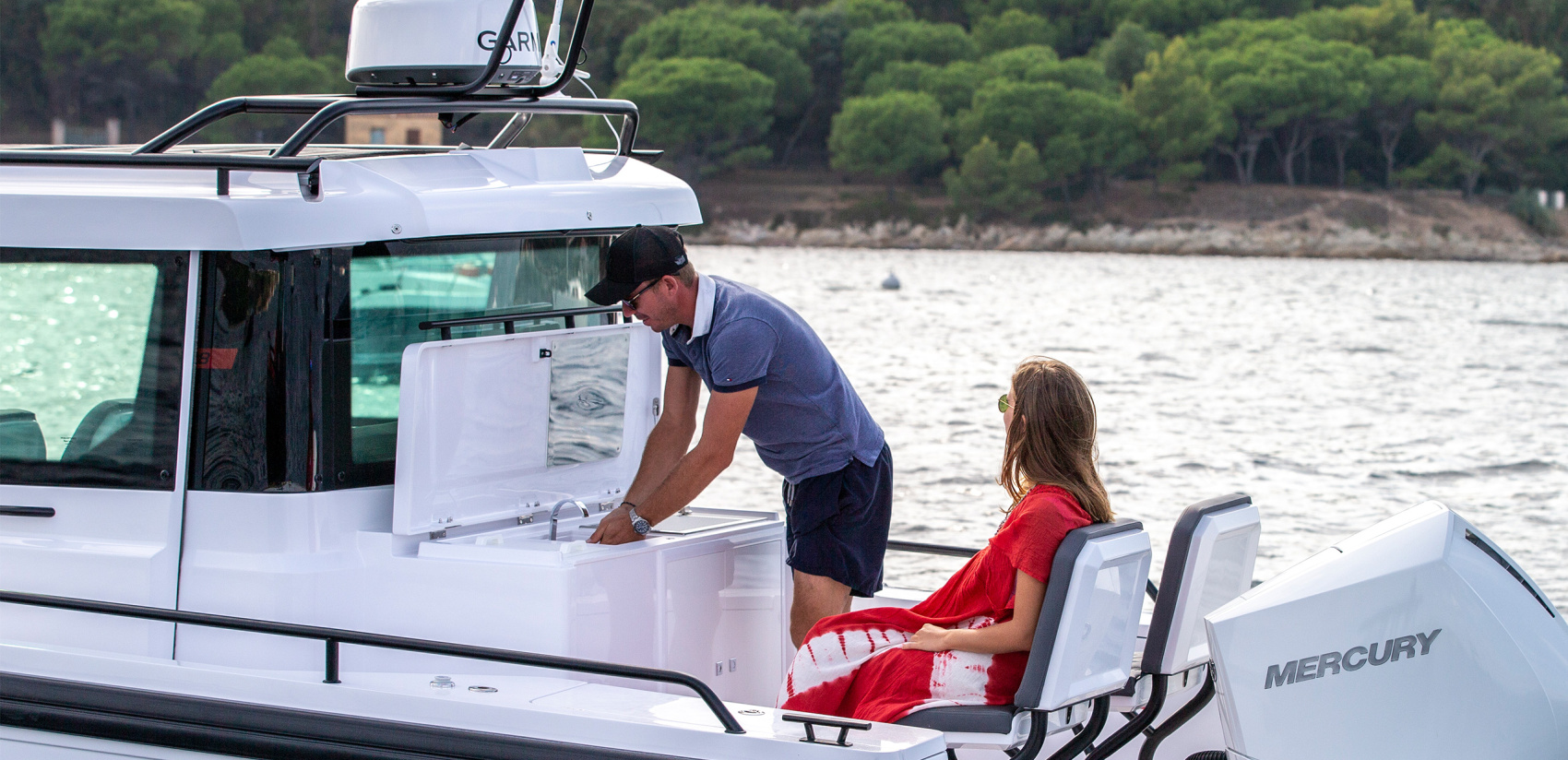

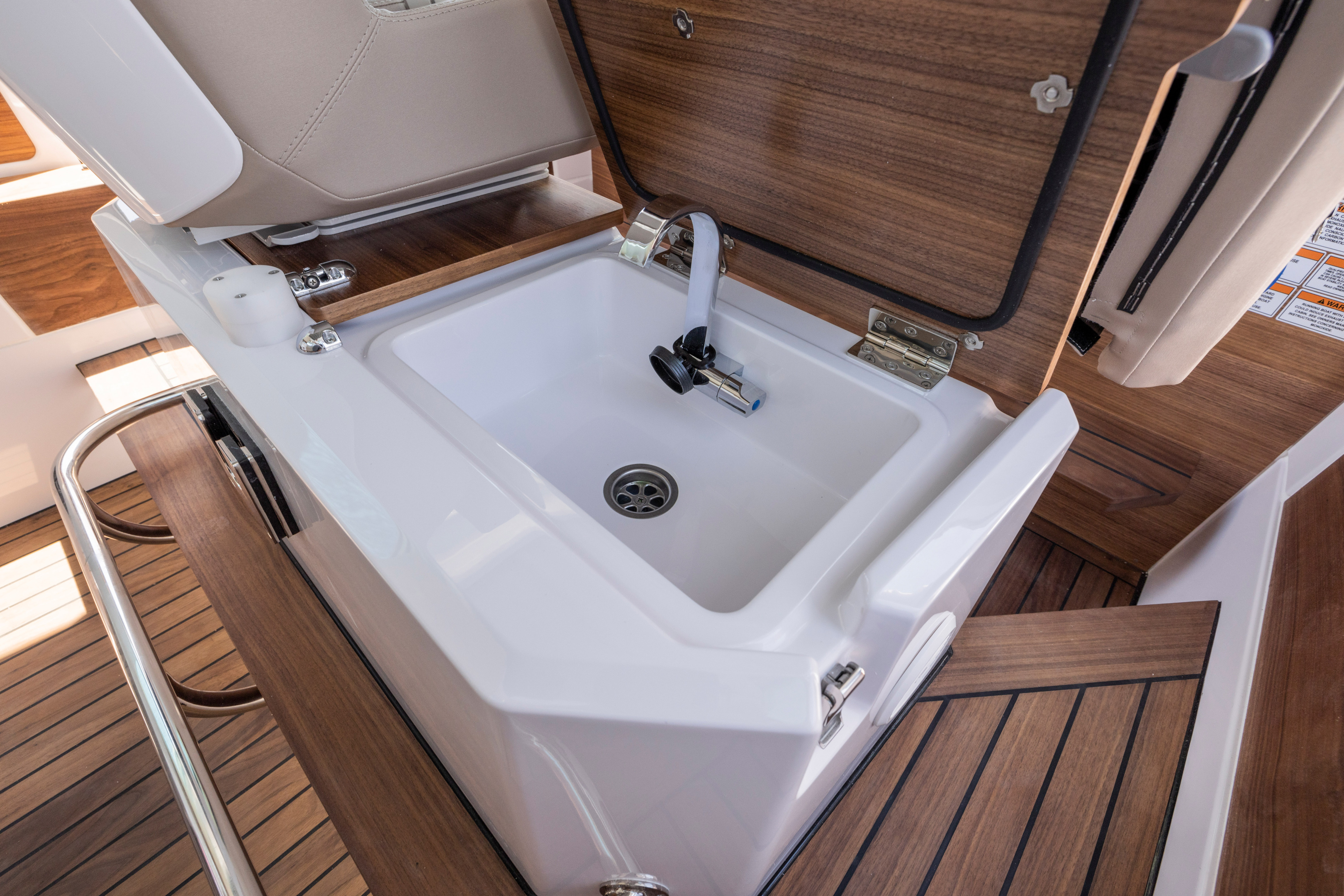

As with other models across our range, the aft-deck can be configured either with, or without, an additional rear-facing bench seat and storage box, or for all-day hospitality, our dedicated drinks serving area and wet-bar module option is a must.

Go further and stay out longer with the Axopar Cabin.

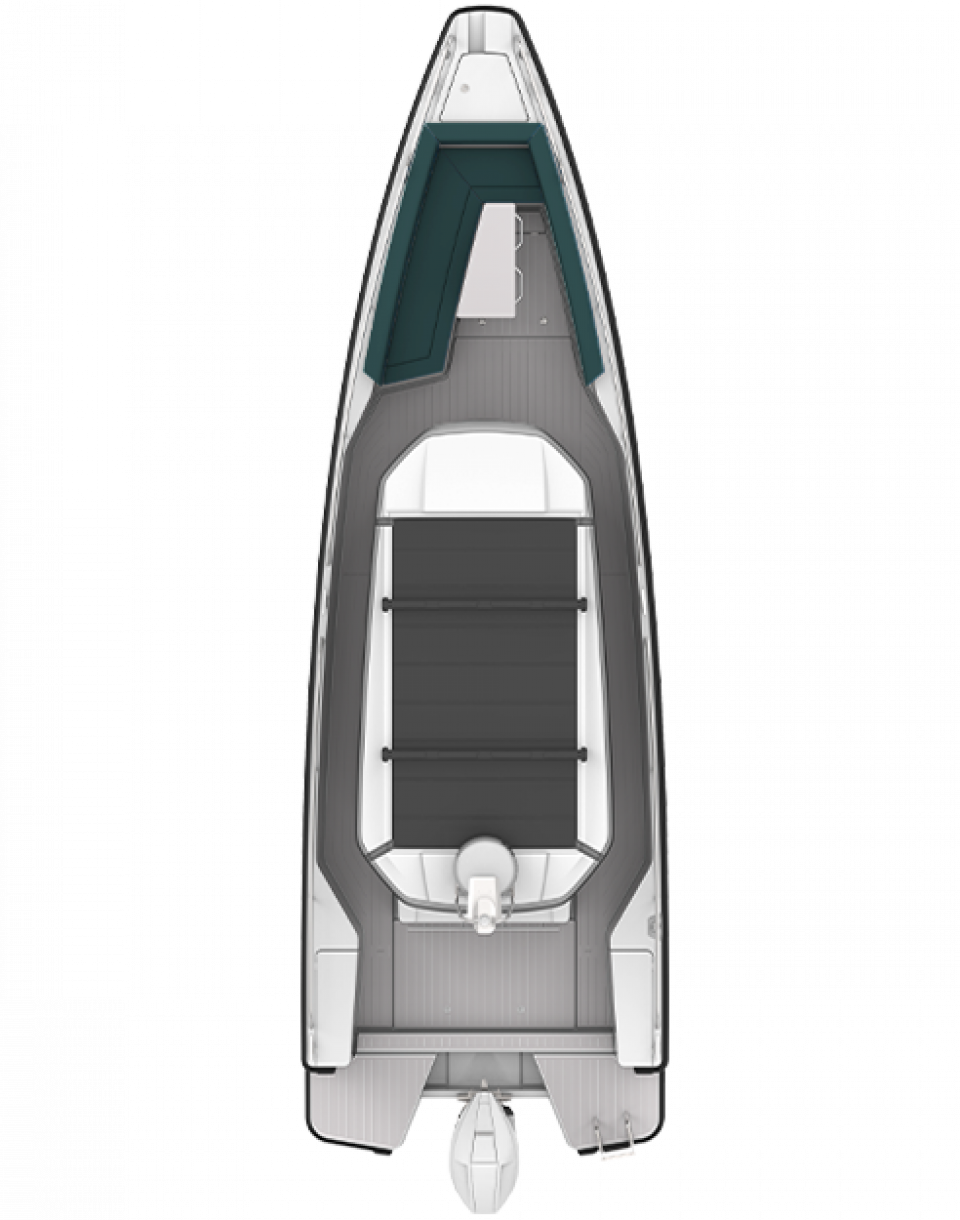

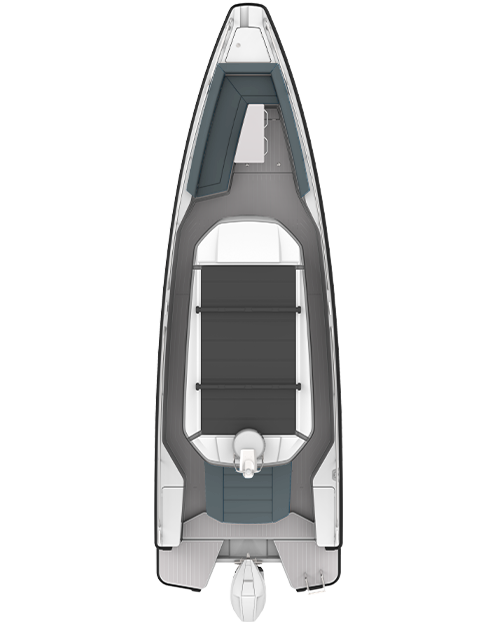

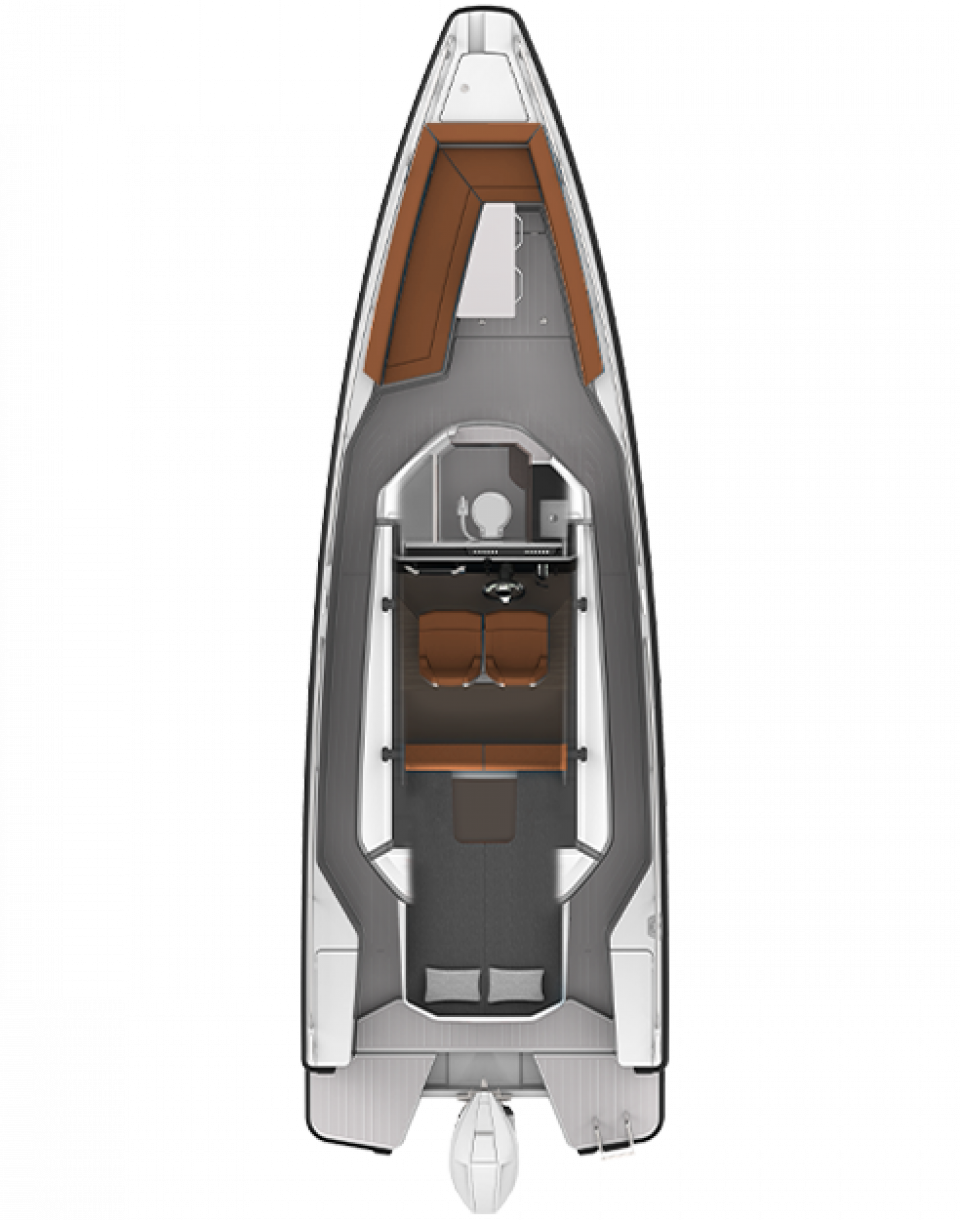

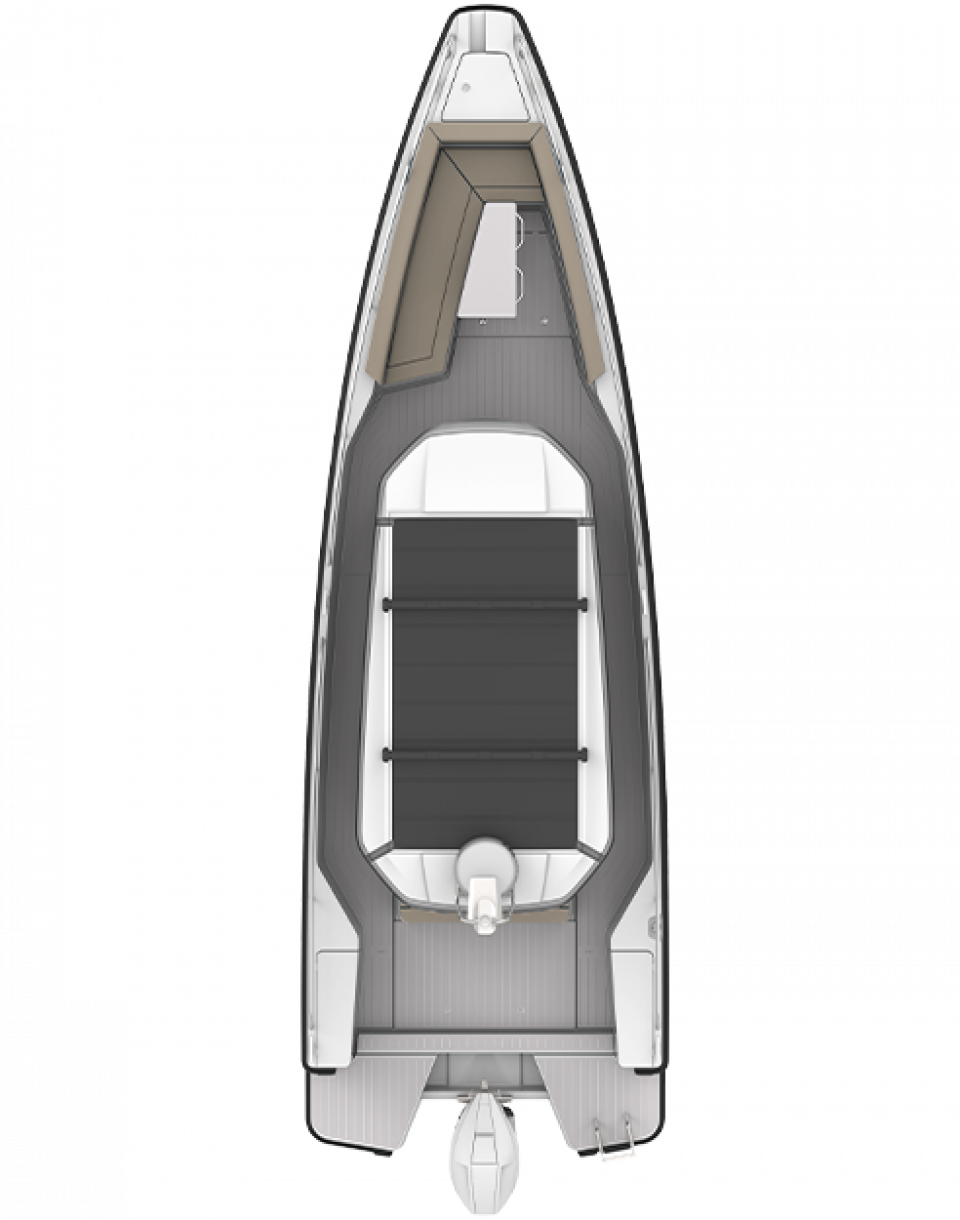

LAYOUT ALTERNATIVES FOR AFT DECK

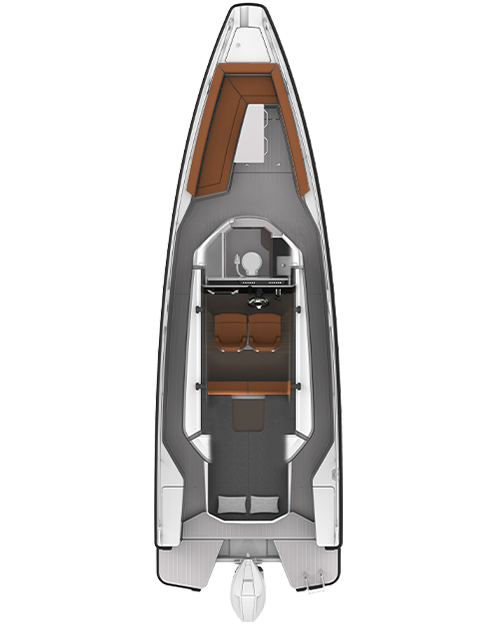

AX28L CABIN MY2018 layout alternative

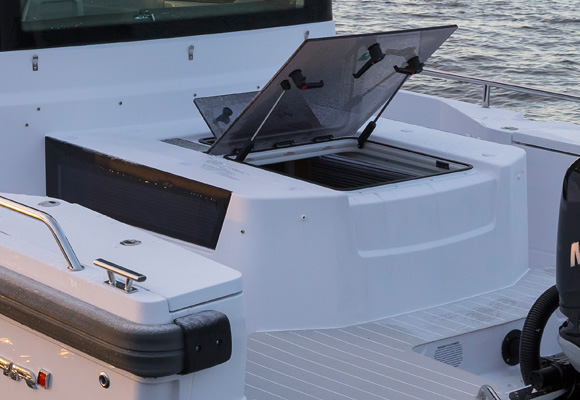

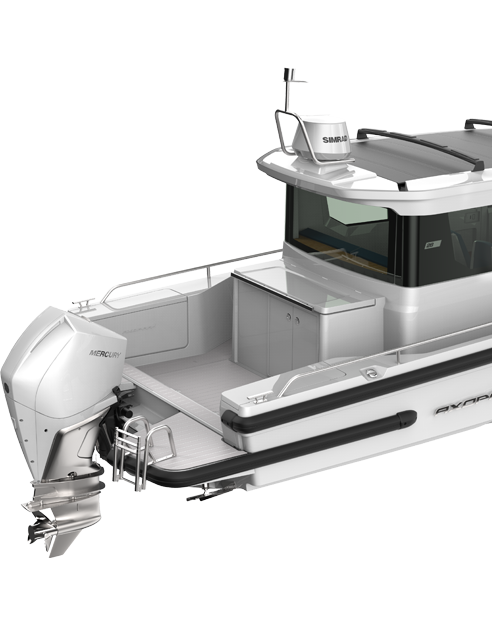

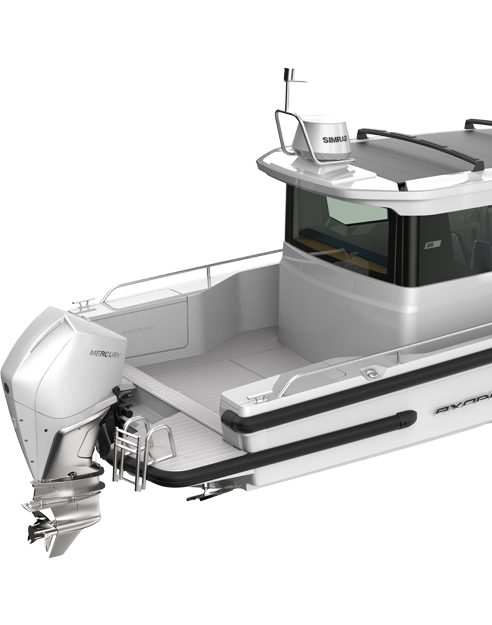

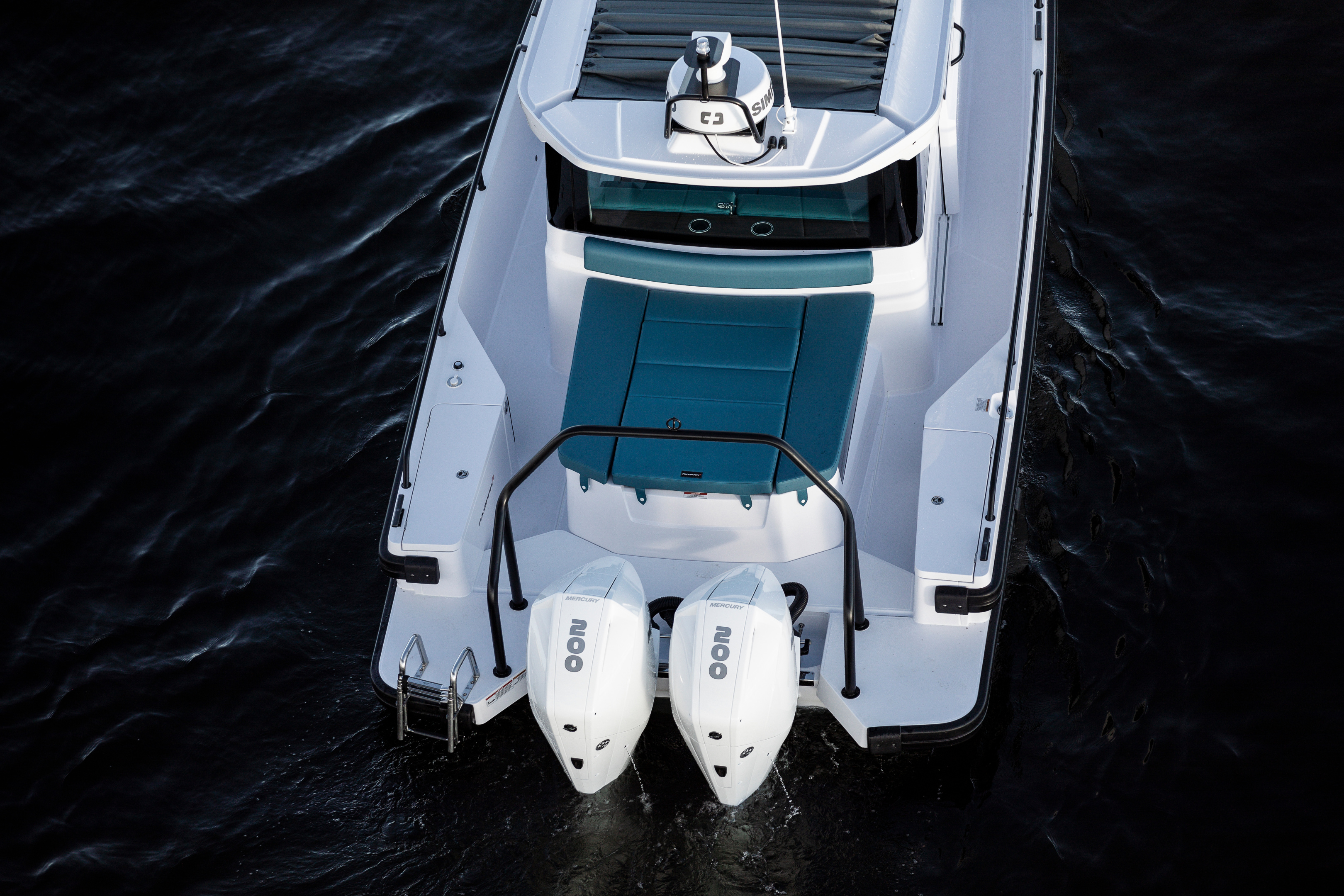

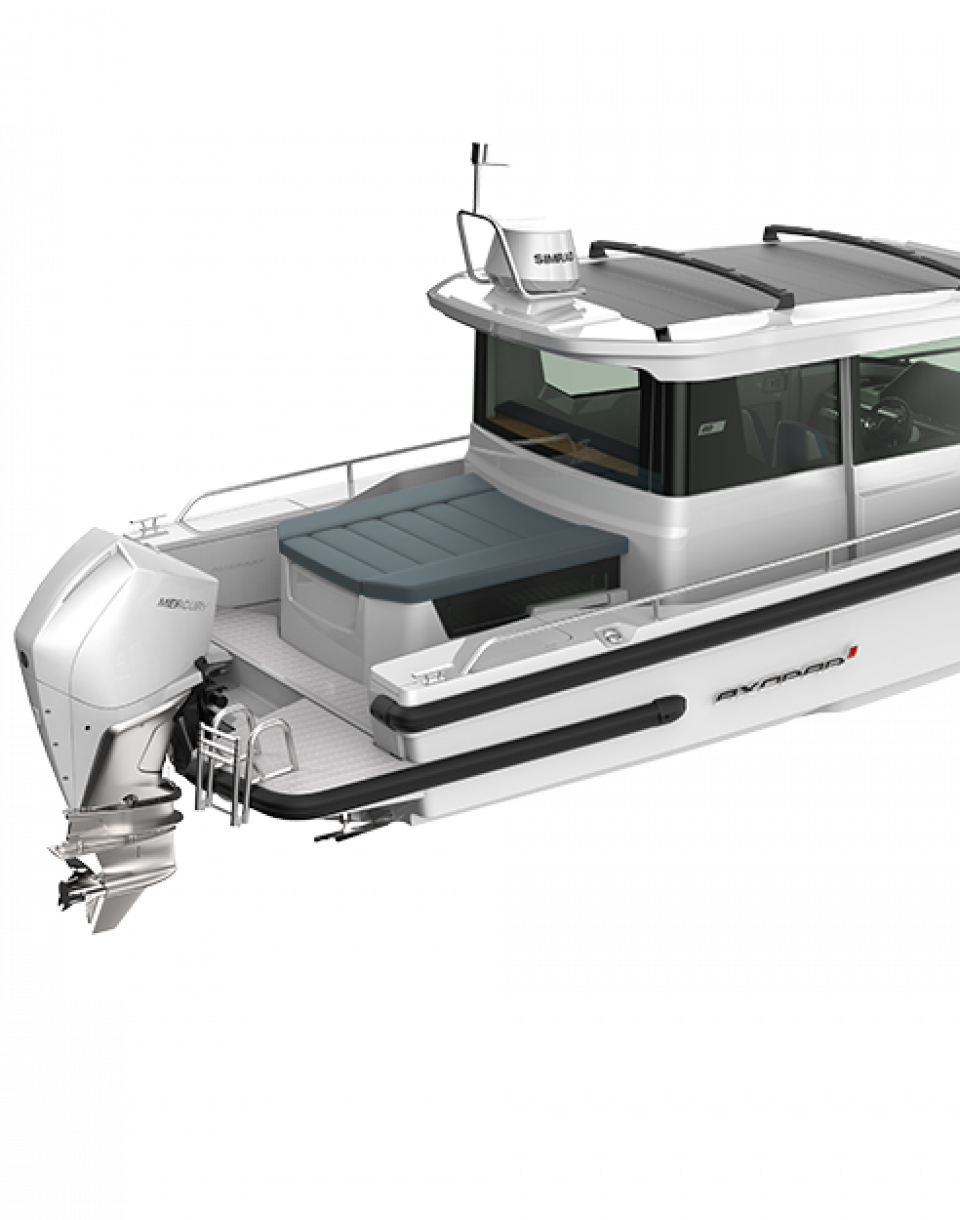

The Axopar 28 Cabin comes with a spacious open aft deck with a large stowage hatch in the floor as standard. It can be equipped with an optional bench/storage box, a wet bar module with refrigerator and sink with faucet or a daycruiser aft cabin which sleeps 2 persons.

Specifications

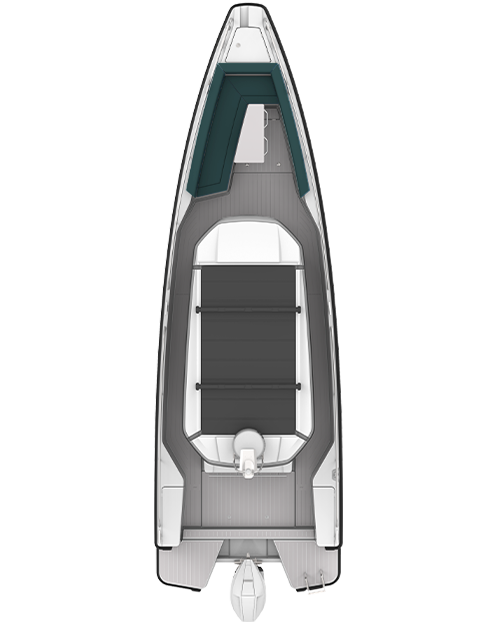

AX28C CABIN MY2018 interior and empty deck

Technical specifications

Overall Length (excl. Engine) 8,75 m (28ft 8in)
Overall Length incl. Bathing Platforms 9,18 m (30ft 1in)
Beam 2,95 m (9ft 8in)
Height (Waterline to Roof incl. Light Mast) 2,83 m (9ft 3in)
Draft to props 0,80 m (2ft 8in)
Weight (excl. Engine) 1940 kg (4277lbs)
Passengers B: 6 persons / C: 9 persons
Berths 2 persons
Fuel capacity 280 l (74 gal)
Construction GRP
Classification B – Offshore / C – Coastal
Max speed range 32–46 kts

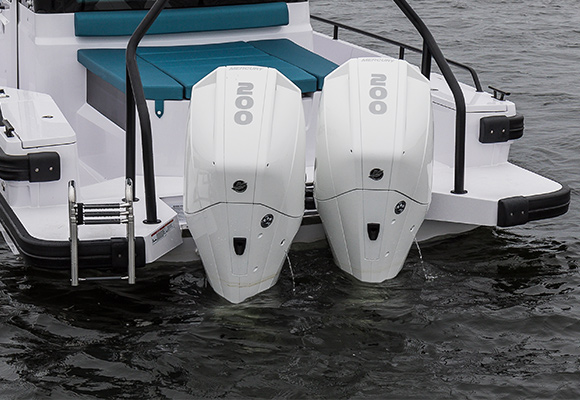

Outboard engines 200 – 400 hp
Fuel consumption, cruise 1.75 l / nm (350 hp @ 30 knots)

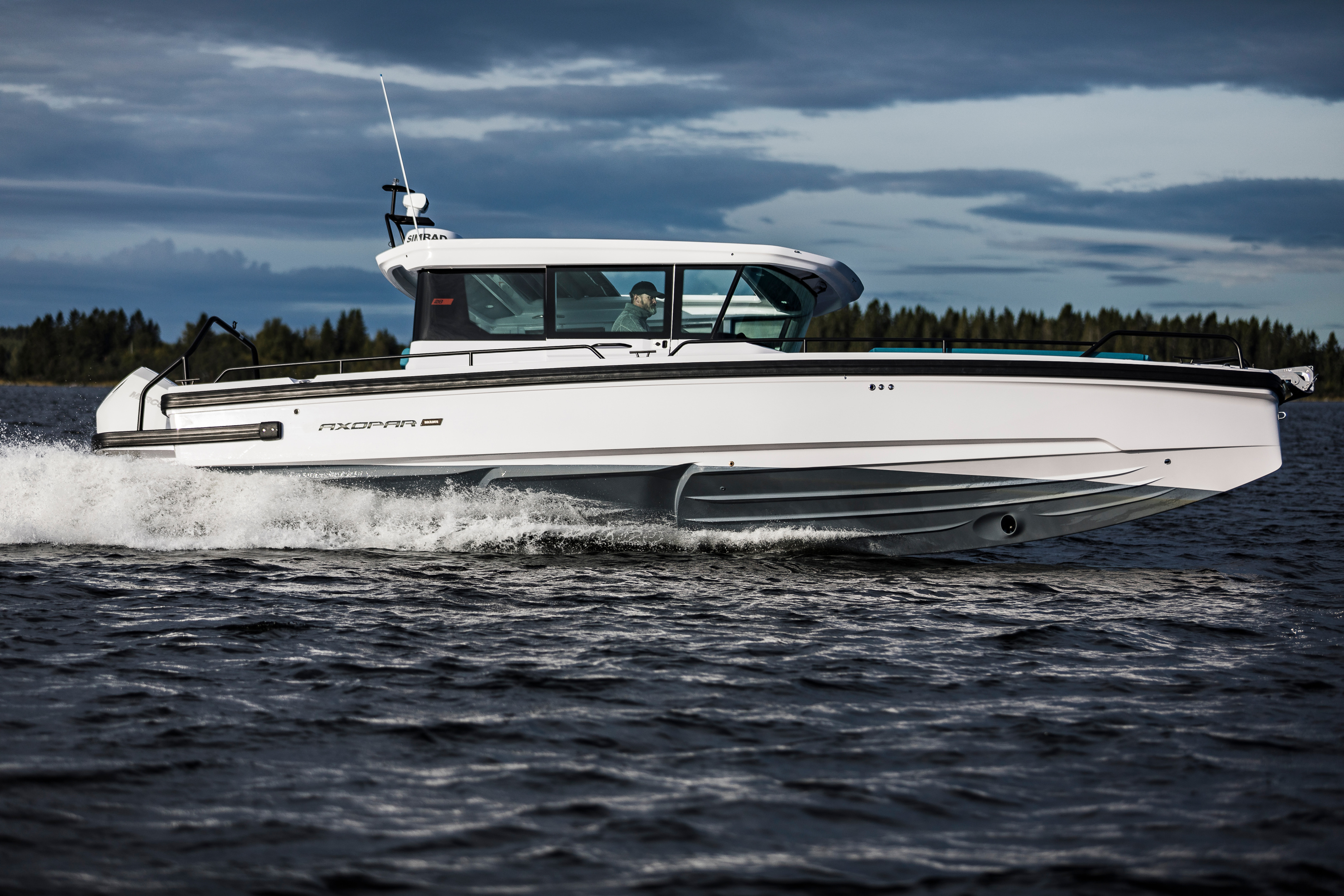

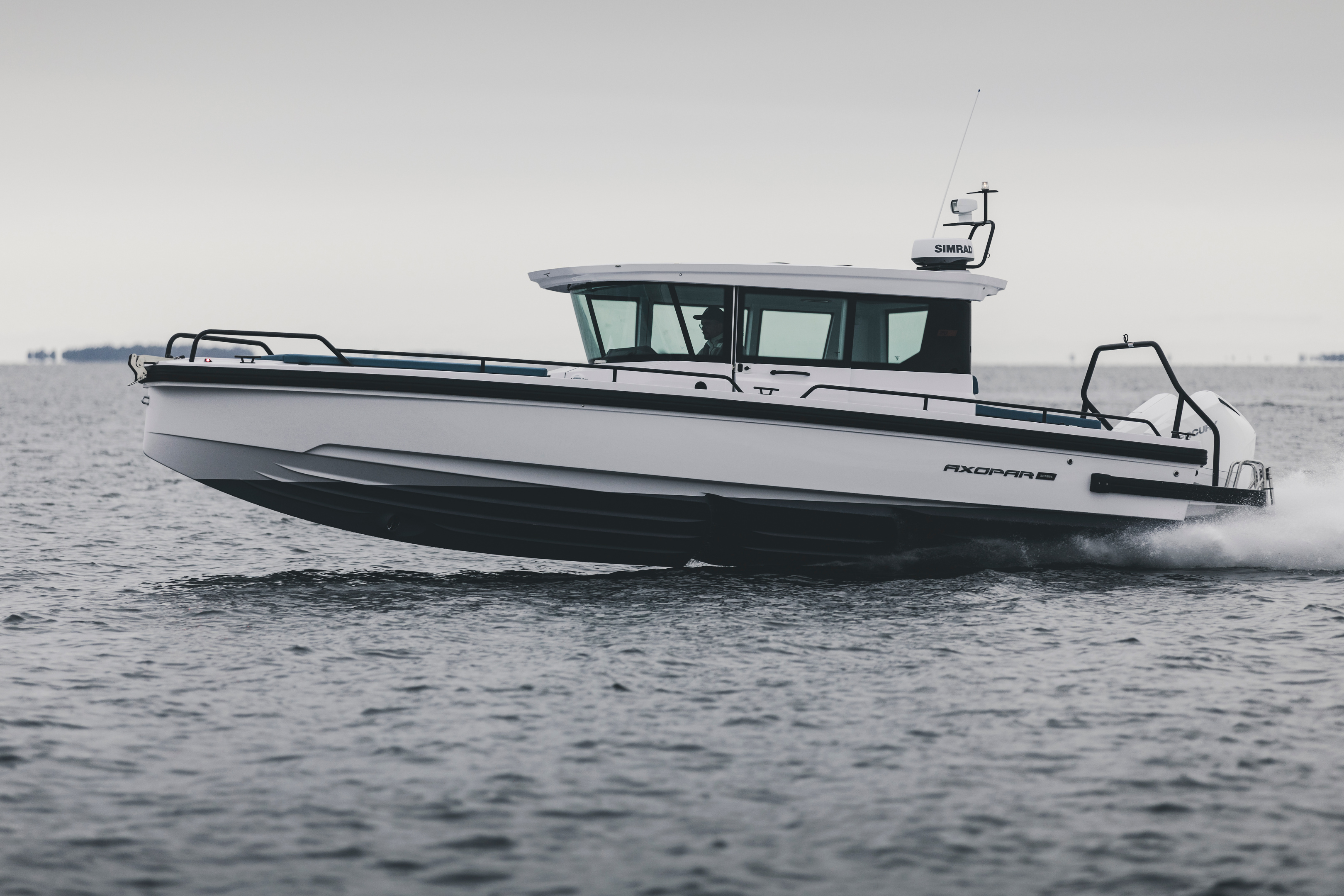

Hull design Twin stepped 22 degree V “Sharp entry hull”

Specifications may be changed without prior notice. Performance may vary due to equipment, weather and load conditions.

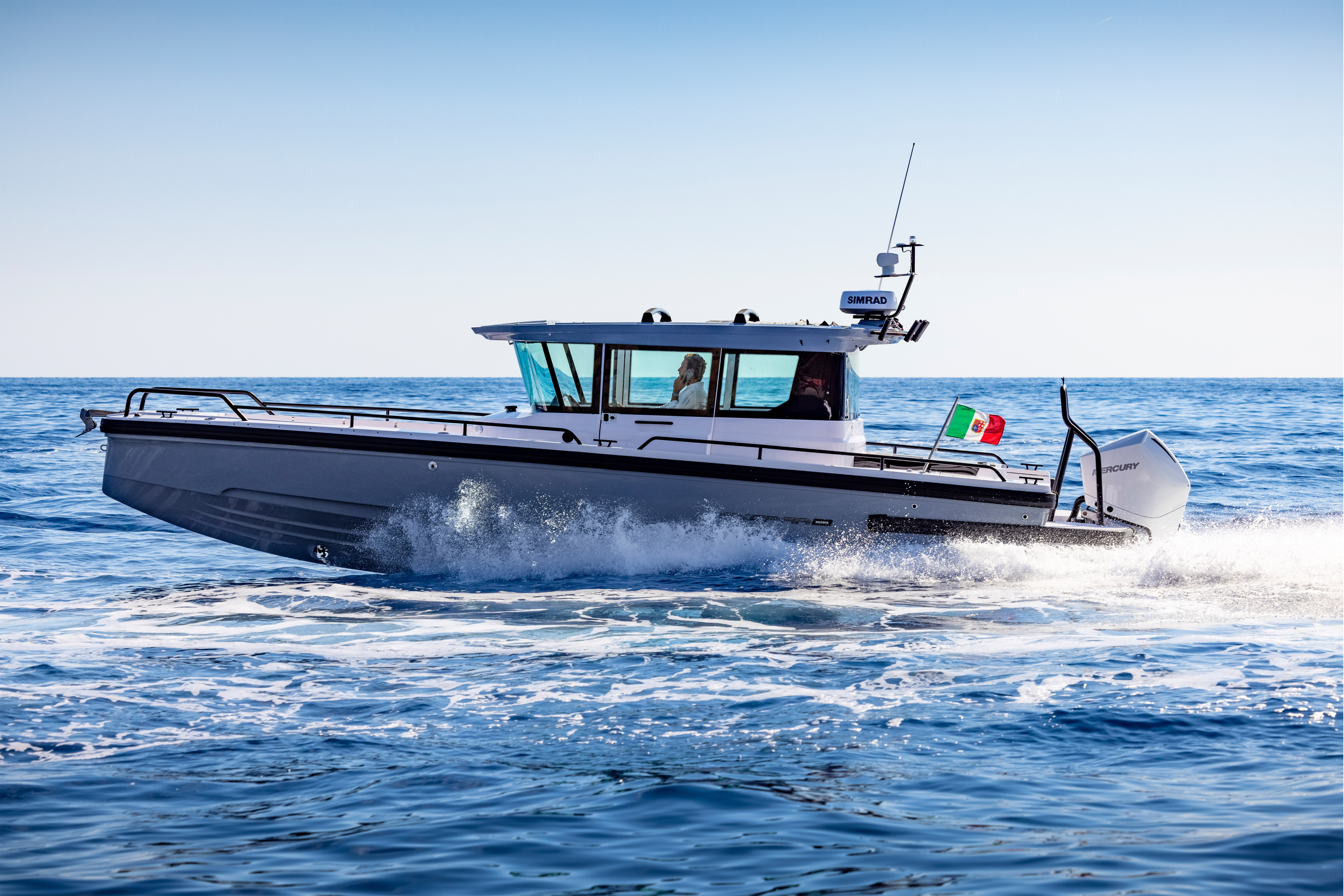

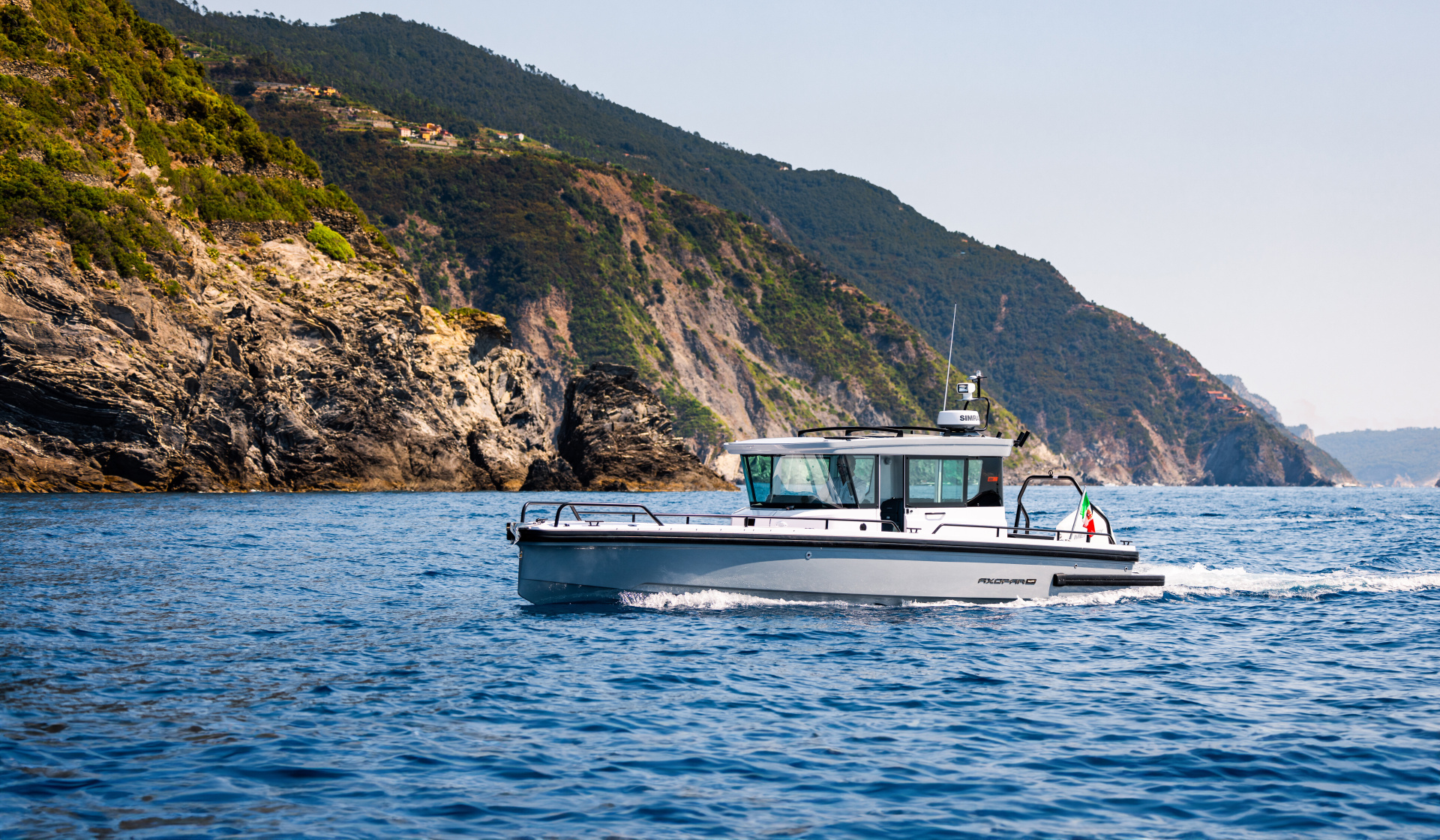

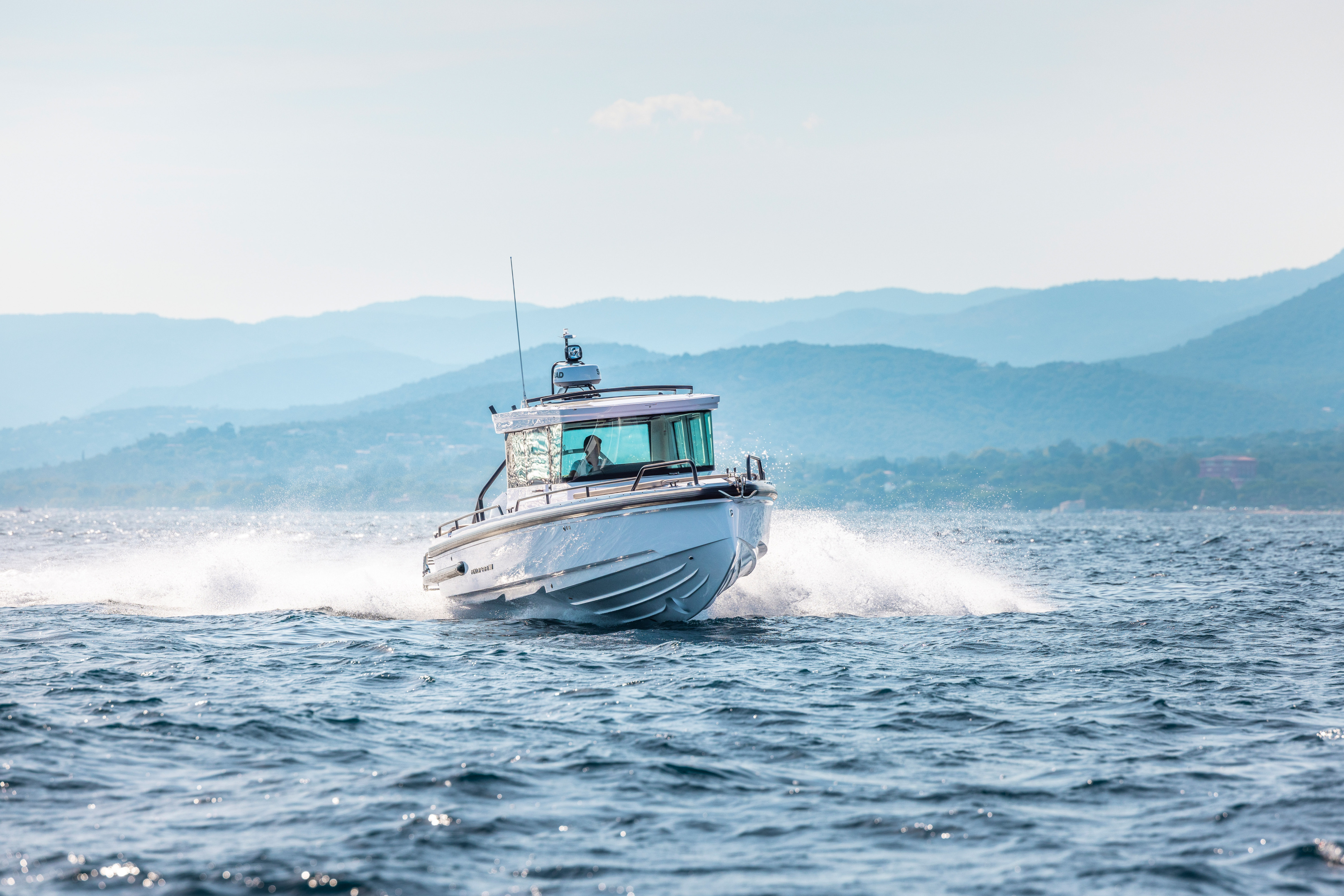

AX28 Brabus Cabin



AXOPAR 28 BRABUS LINE TRIM PACKAGE

All Axopar 28 models can be ordered with BRABUS Line options.

Style-conscious customers can now differentiate and characterize the look and feel of a
standard specification Axopar by ordering from our BRABUS Line options, adding value with
discreet interior & exterior trim & styling enhancements.

Sample a taste of BRABUS Marine refinement by selecting the BRABUS Line Trim Package,
which includes:

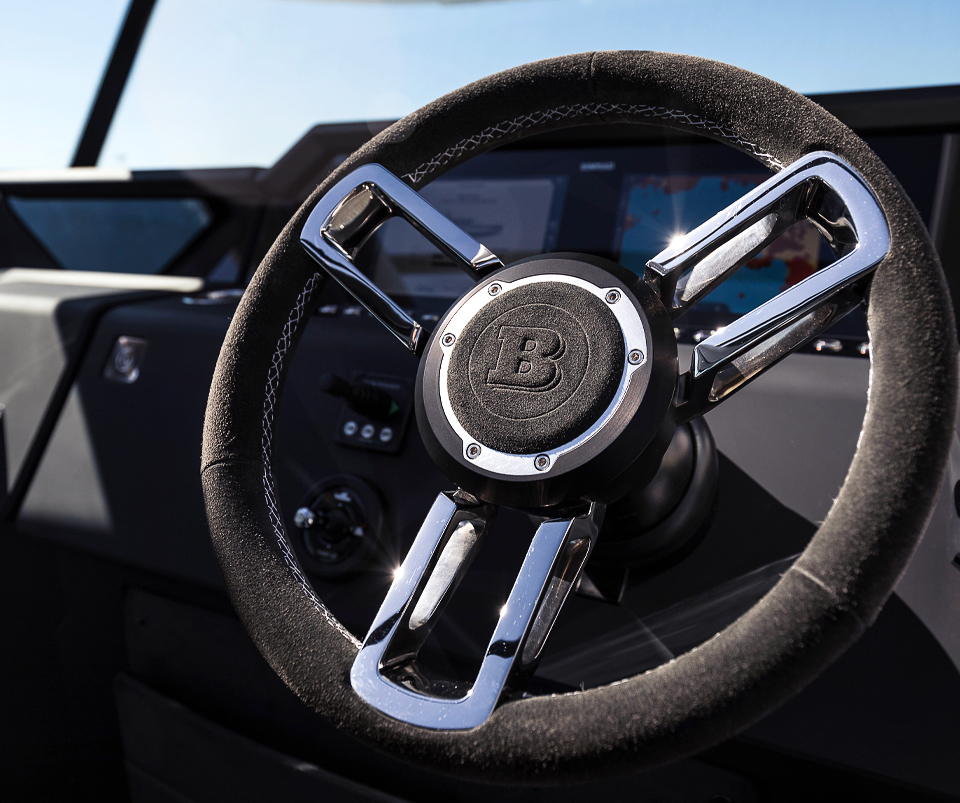

Black rub rail, Suede steering wheel with "doubleB"® logo, Exterior
black-painted stainless steel parts, Suede co-pilot grab rail with BRABUS logo, Black cleats with

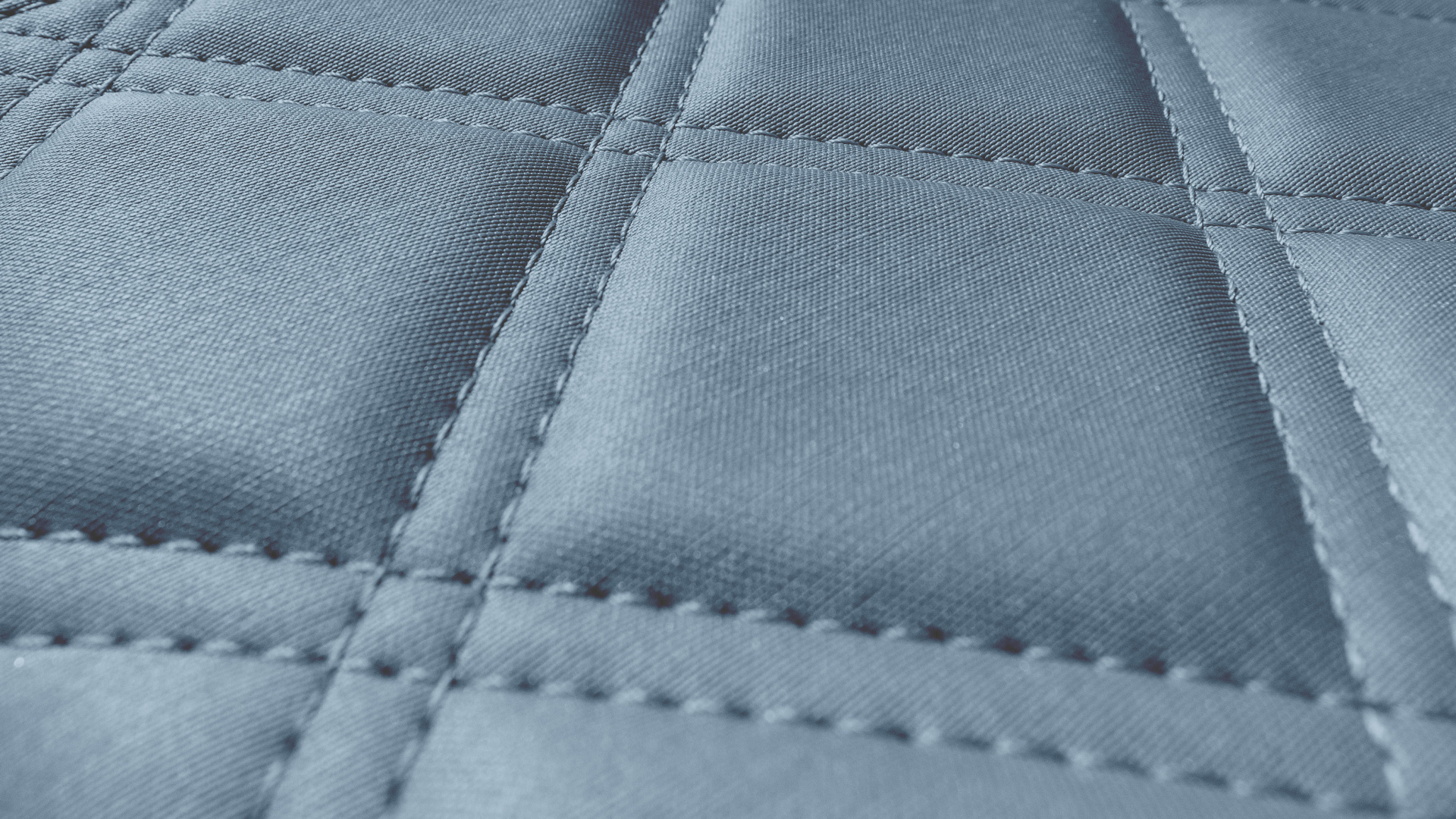

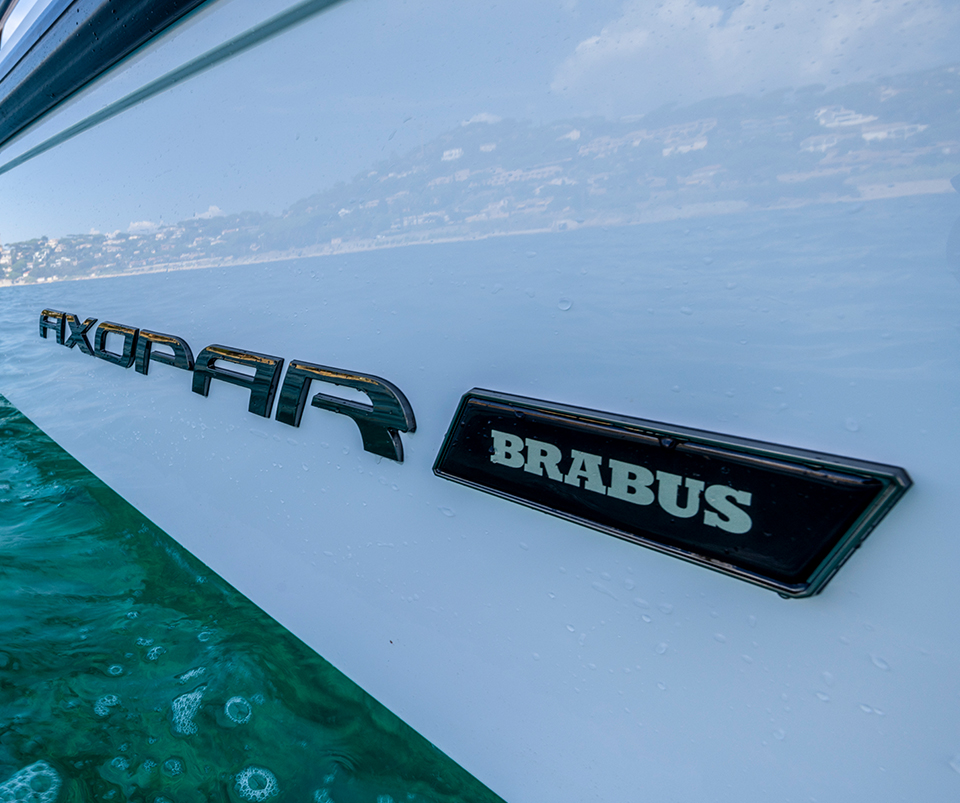

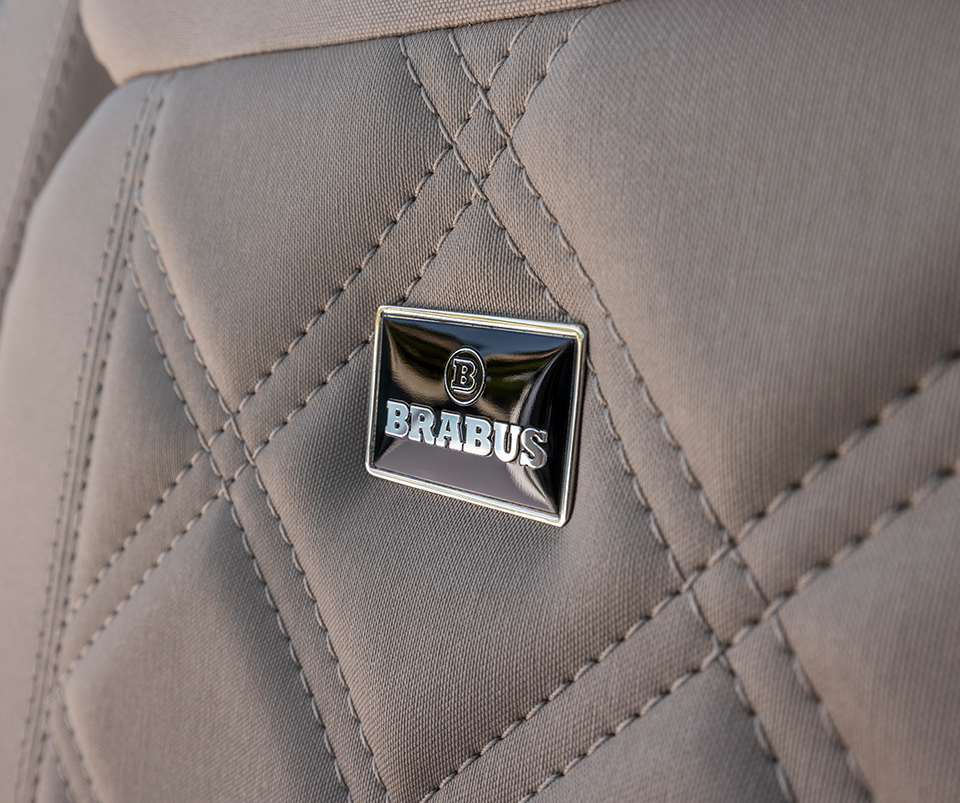

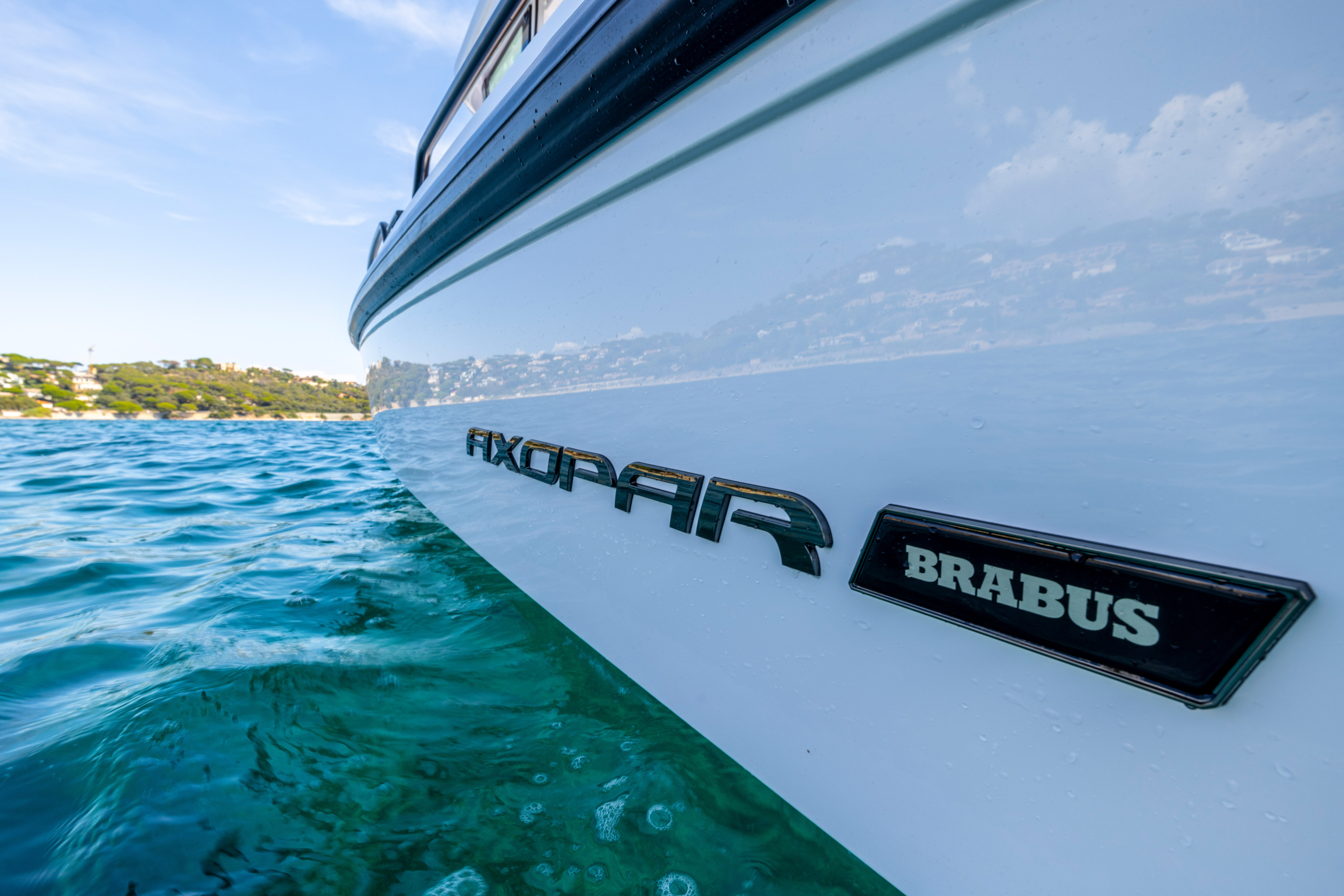

"doubleB"® logo, New design Axopar seats, Axopar BRABUS Line hull signature, Niroxx upholstery
w. diamond stitching, Axopar model plaque in carbon fibre.

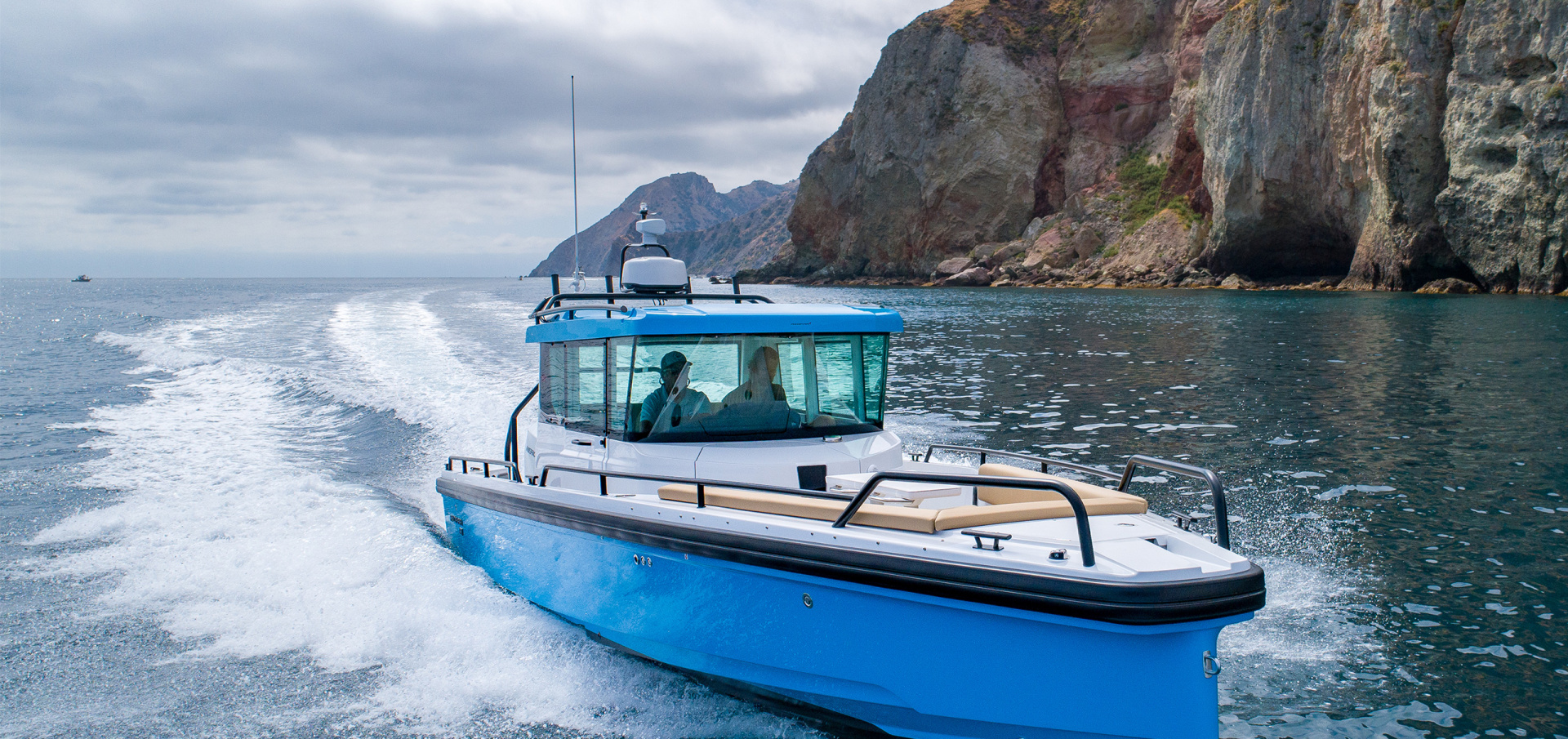

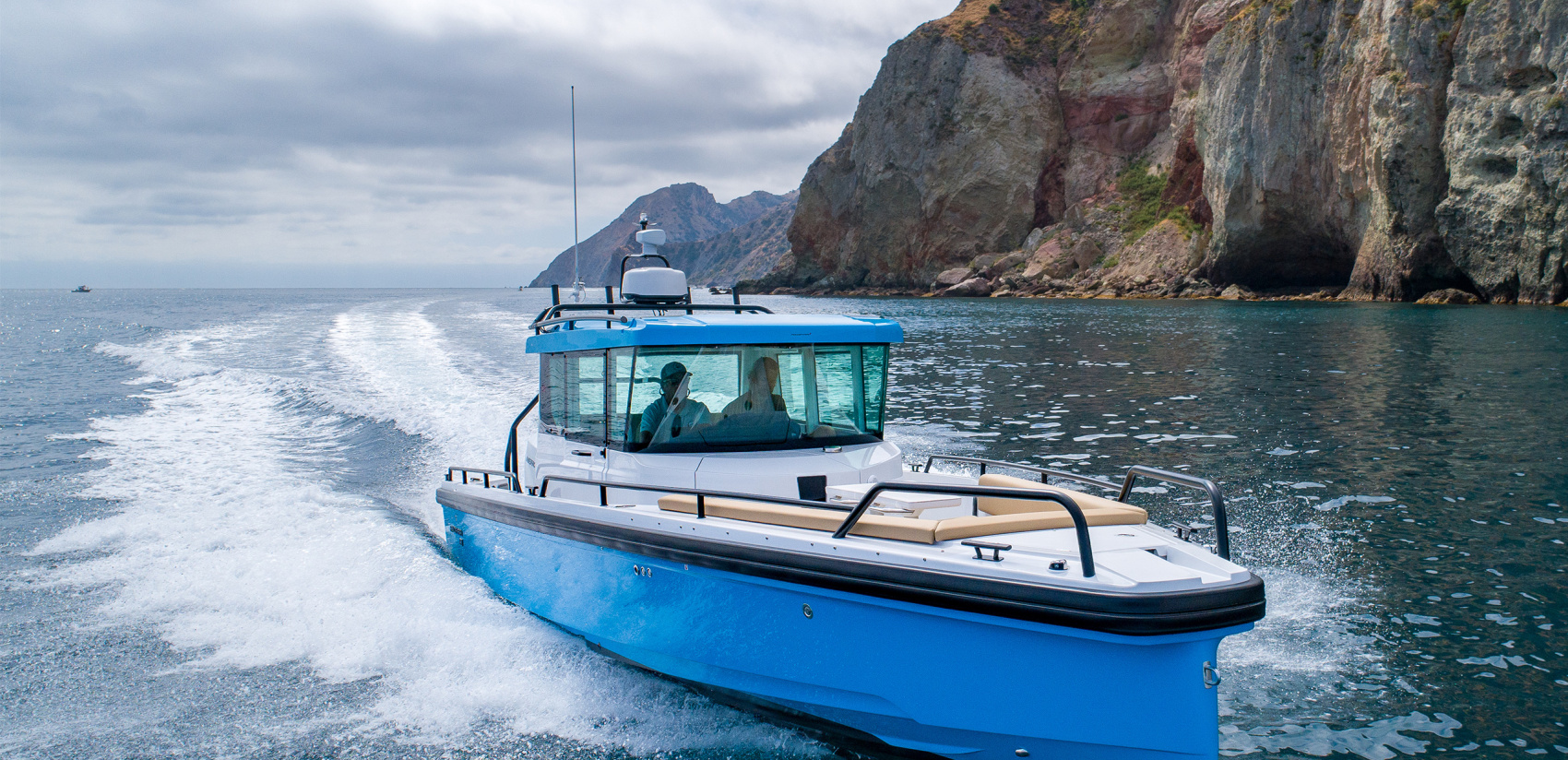

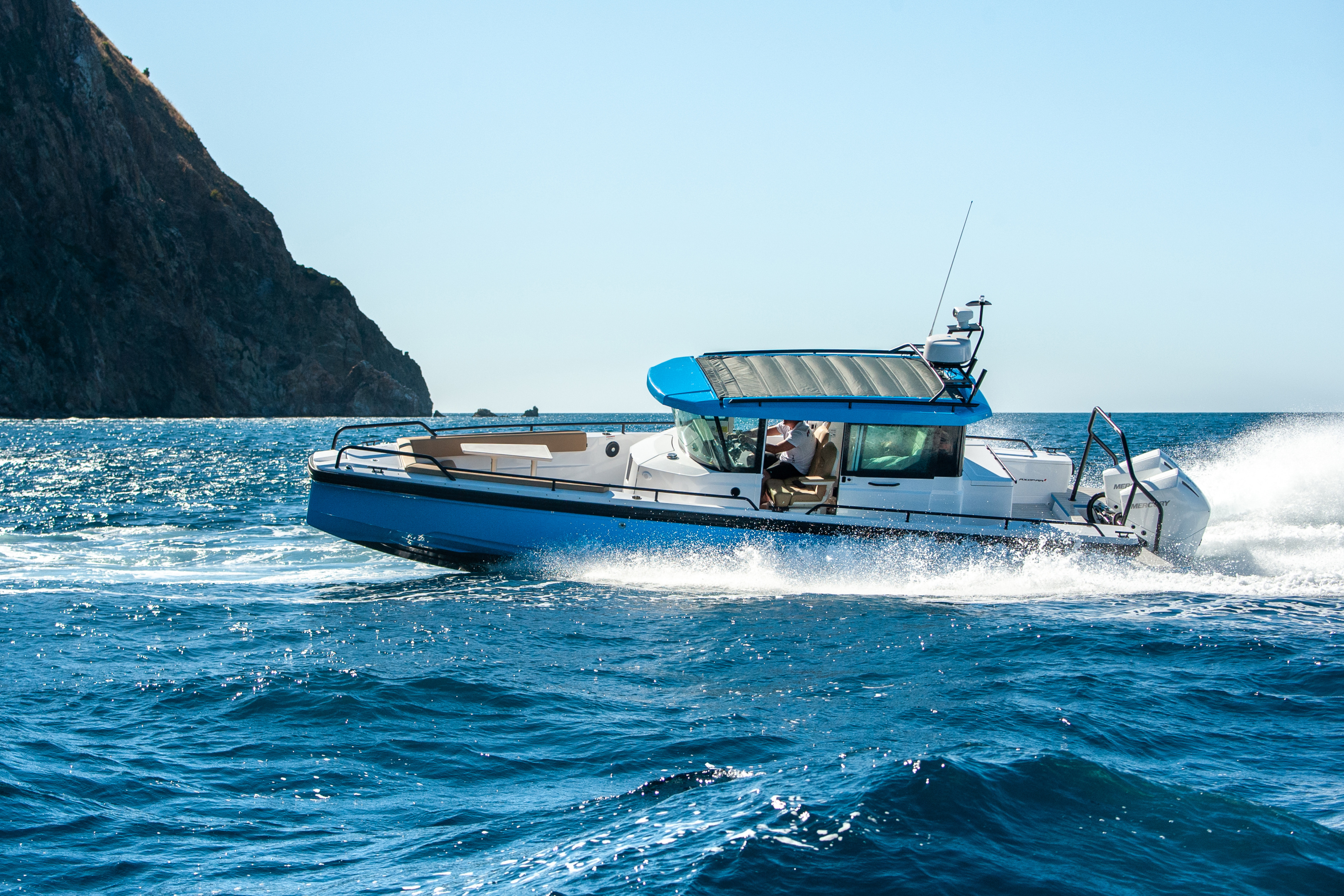

BRABUS Line Color Edition: The BRABUS Line Trim Package can be further enhanced by selecting
one of our two exciting new hull, deck & roof colours: Choose from vibrant and playful Miami
Blue, or a more discreet Platinum Grey.

BRABUS Line Premium Package: If you are ordering a 28 Open, T-Top or Sun-Top with BRABUS
Line Trim Package, and you want to make an even greater styling impact, our BRABUS Line
Premium Package includes super-cool Baltic Blue cushion upholstery throughout, front deck
seat cushions, table, harbour cover, and mooring kit.


AX28 Brabus Cabin small

FEATURES

Below are examples of some of the features that can be found on the models in the 28 range

Fabric colours for MY2019 boats

New Colours

The model year 2019 28 foot models are available in the above fabric colours. Silvertex marine quality coated fabrics:  Taupe, Graphite, Sterling and Cobre.

Standard equipment

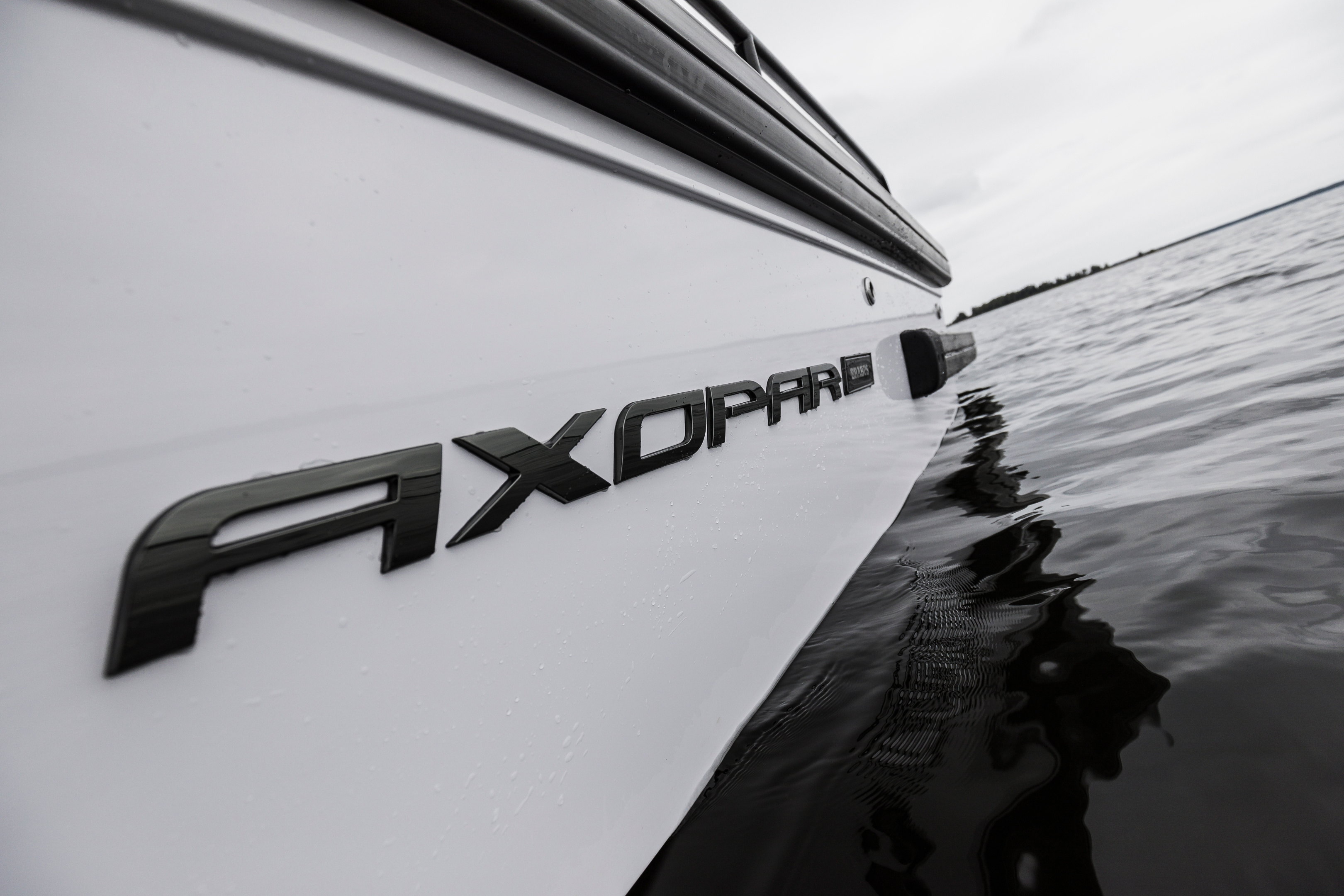

Hull and deck: 130mm added length and 50mm added width, raised hull sides by 80mm, softened spray rails and rounded keel shape. New stringer system based on 37 range. Improved shape and water deflection on bow thruster flanges. Vinylester resin for the first coat of the hull in GRP material, New anti-skid pattern on deck and deck hatches, enlarged service hatch on fore deck, Revised large bumper list with improved cushioning in grey color, Wraparound windscreen and side windows in toughened 6mm glass and tinted light green with optional illuminated 28 designation, Pulpit and cockpit handles in hand polished stainless steel, 6* Stainless steel cleats aft, mid and bow, Fender storage on aft Deck SB and Port sides, Widened bathing platform with integrated Esthec Platinum decking with and telescopic bathing ladder, Self-draining deck with large diameter scuppers, Integrated engine bracket for outboard engines. Axopar 3D lettering on hull sides and model designation on side glasses.

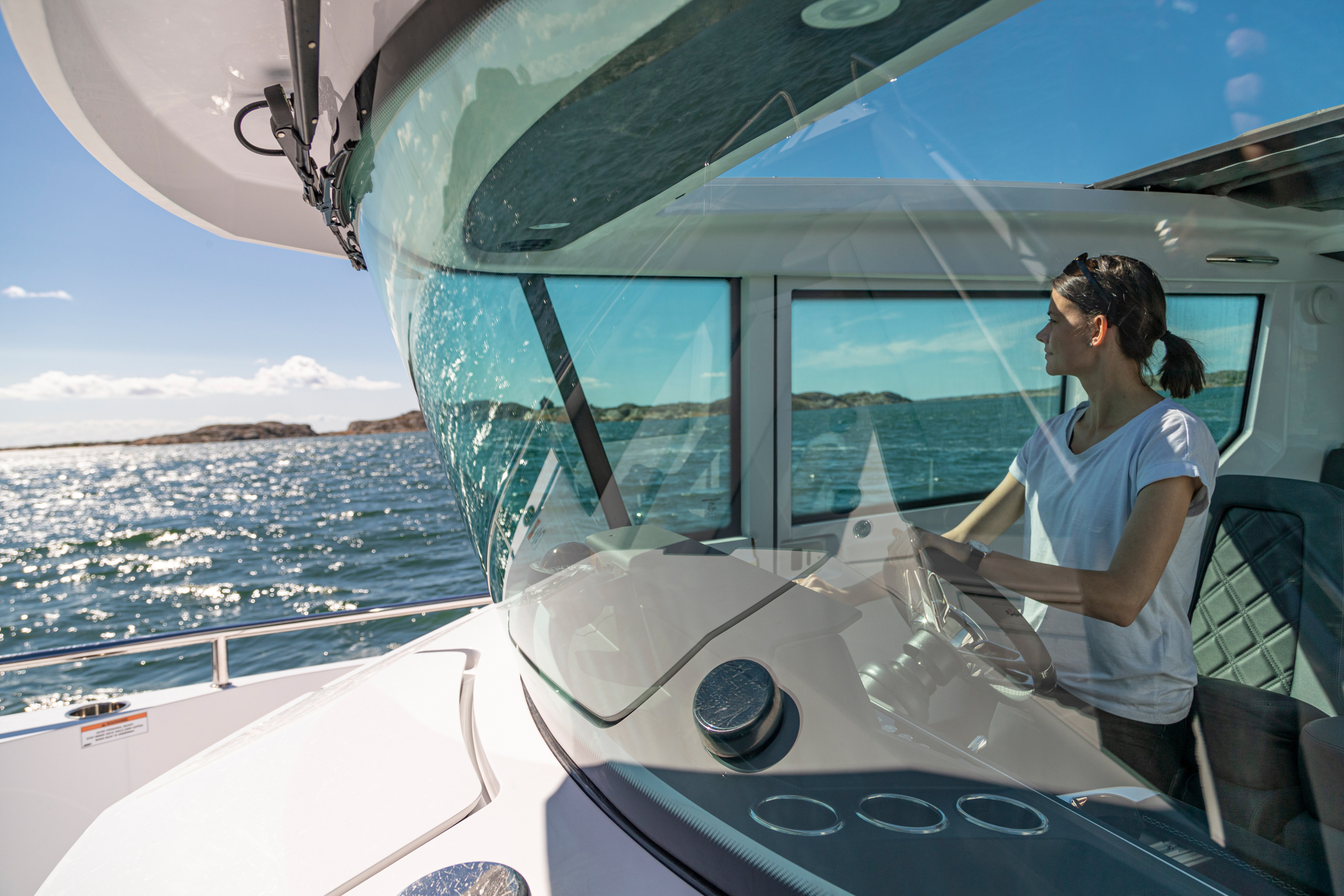

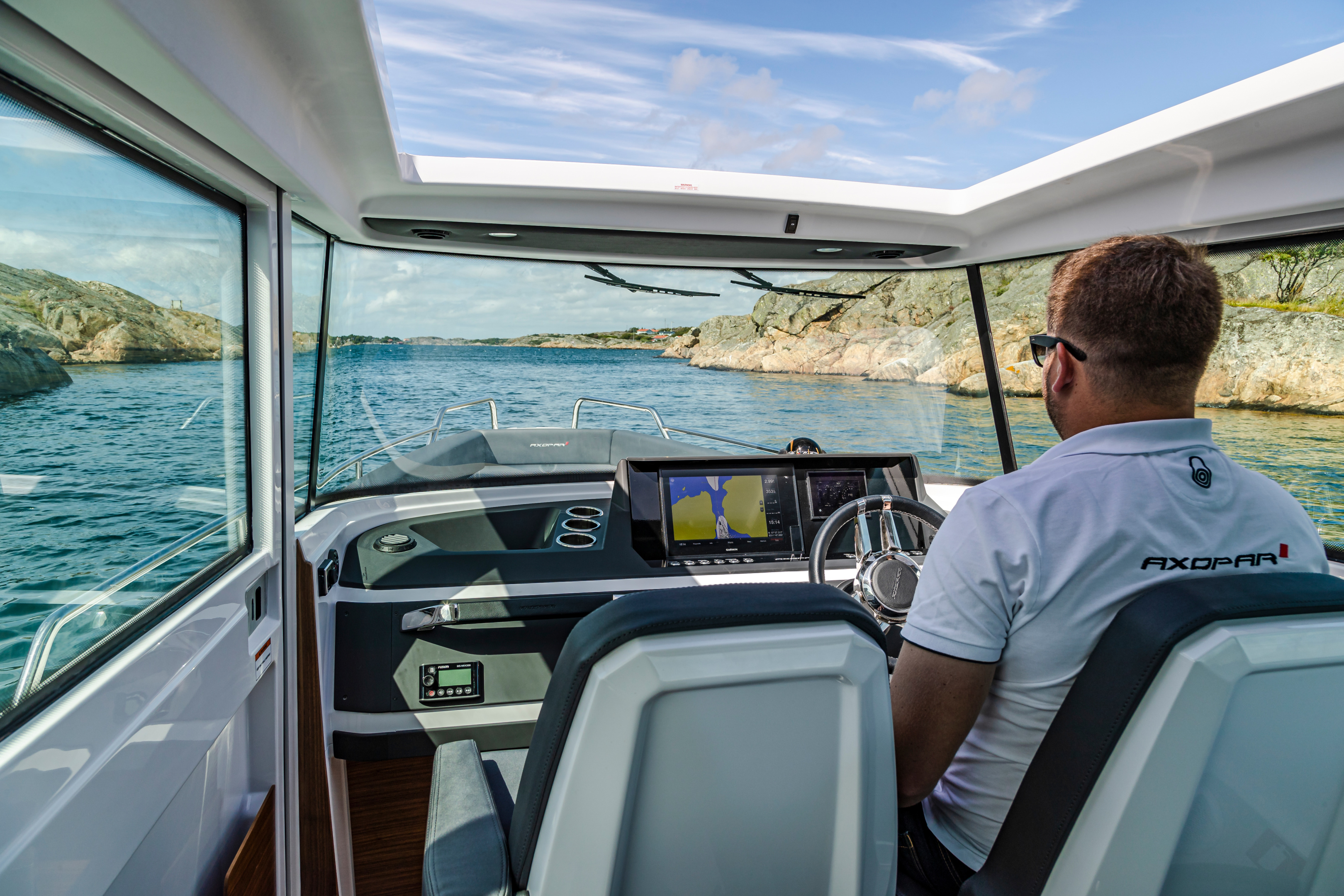

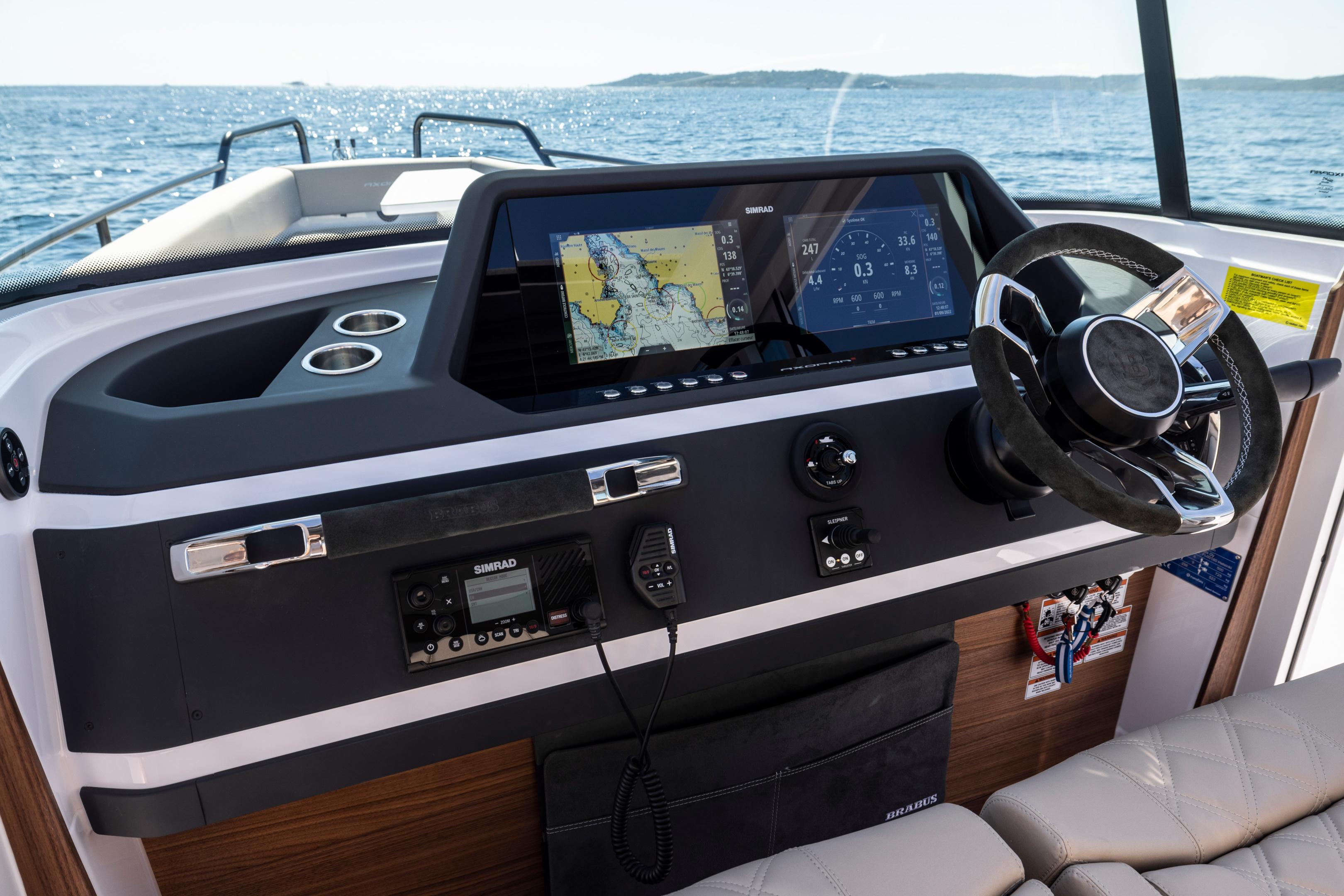

Helm console: Soft Touch painted dashboard and console panel, helm panel with passenger side grab rail, Illuminated push buttons and Axopar logo on glass panel, high-gloss helm exclusively in conjunction with factory-installed GPS and Mercury Pre-rig, Leather steering wheel with Axopar logo, 2 x cup holders, 12V power outlet, Compass, Fabric document pocket on console wall, Walnut foot rest.

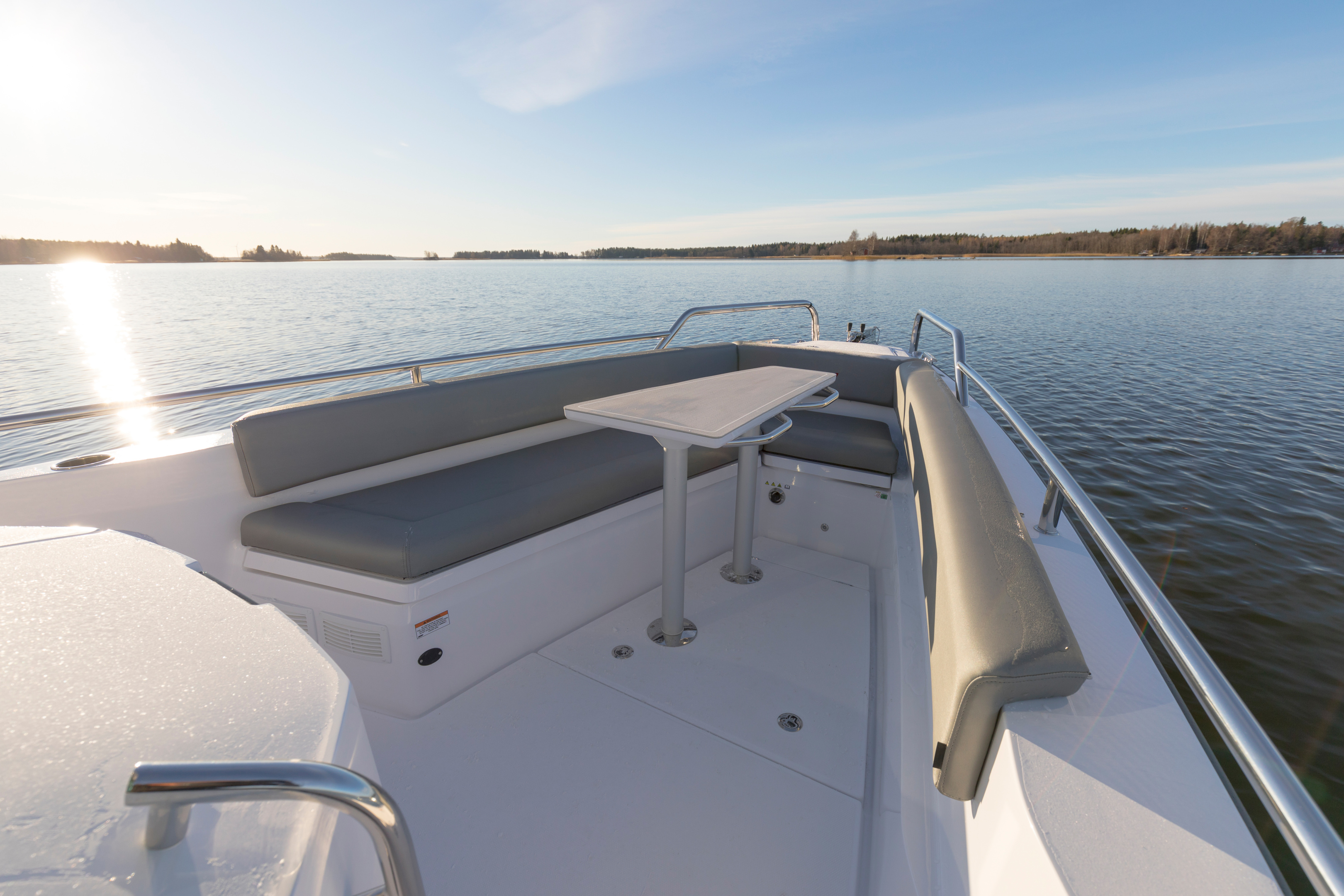

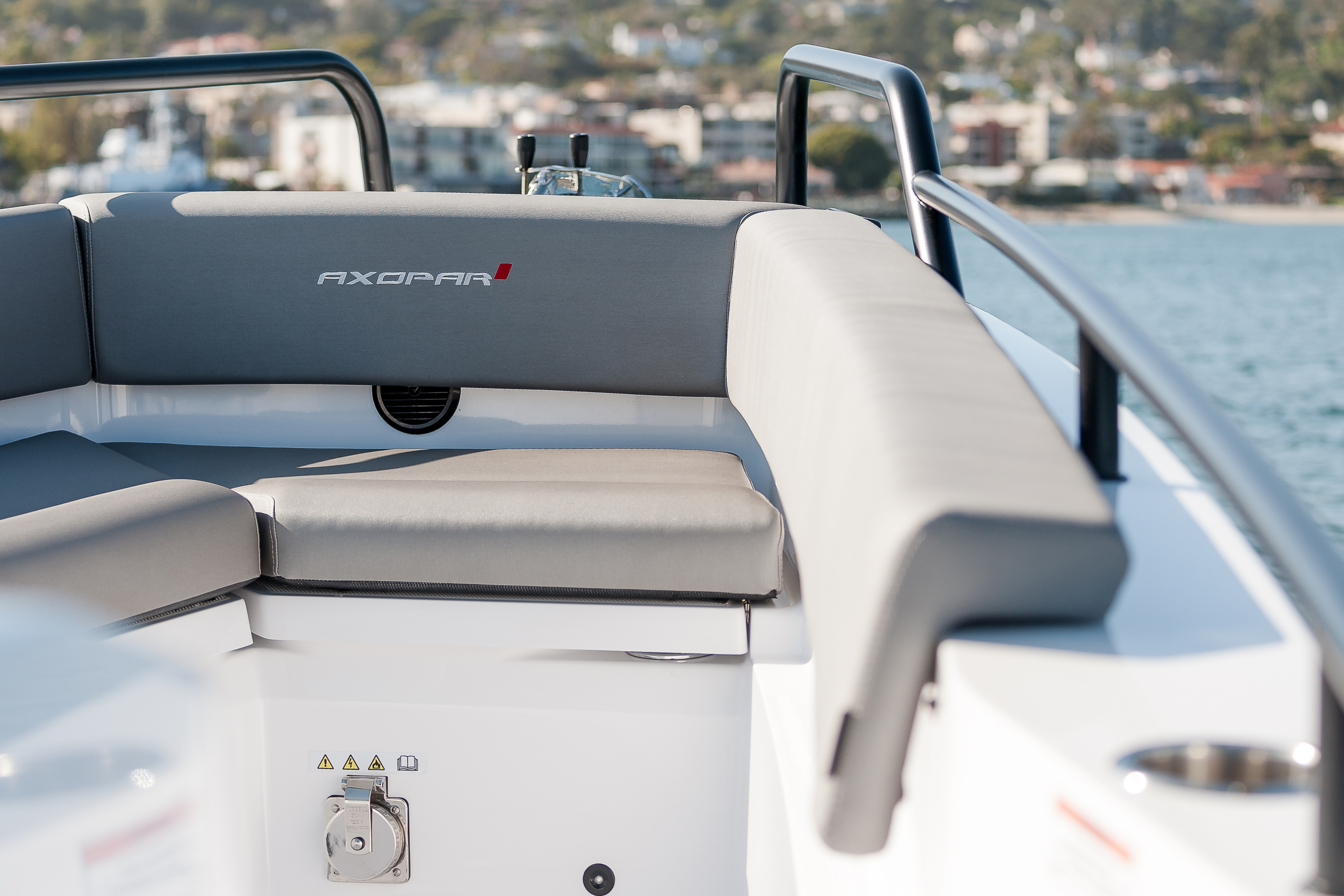

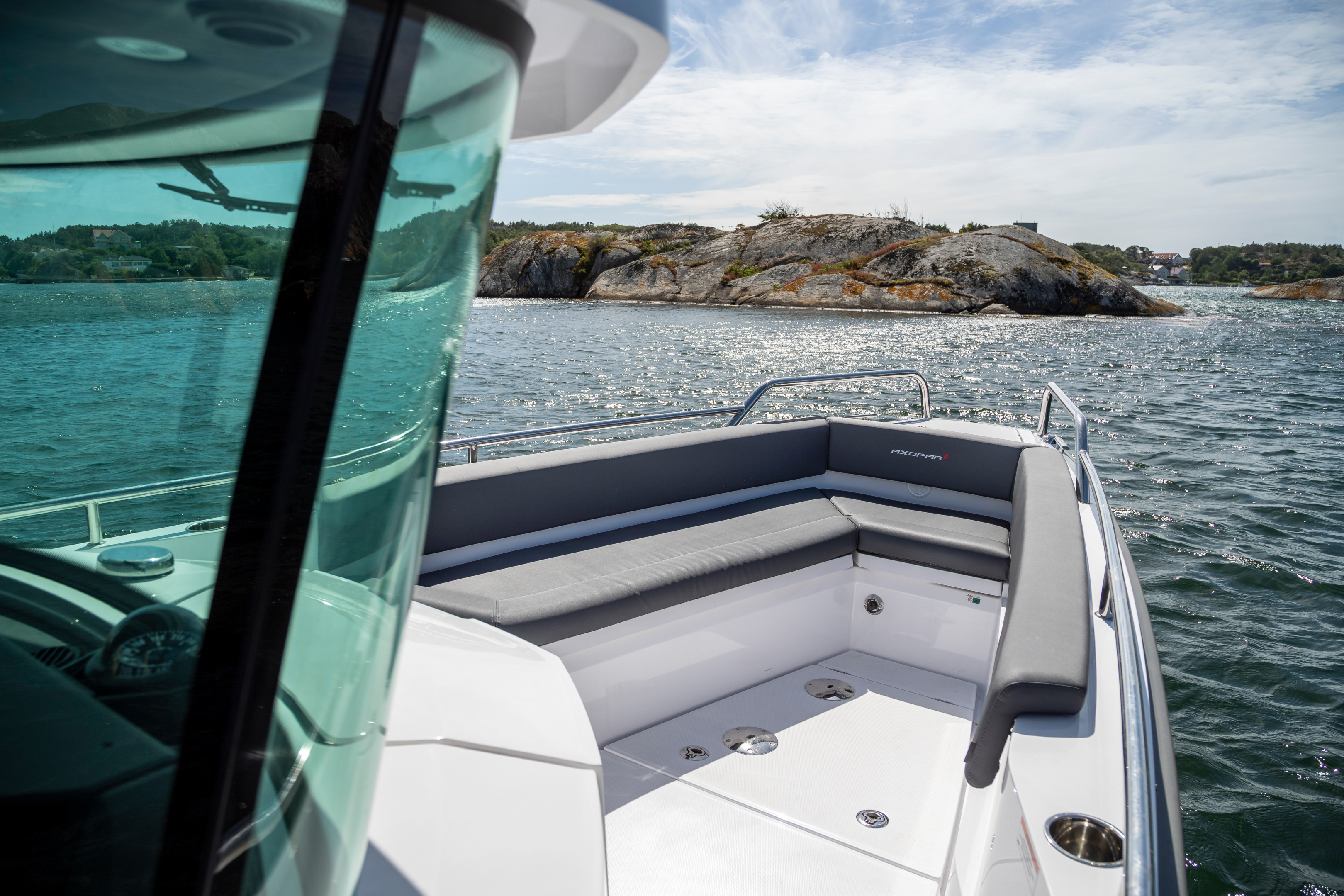

Lay-out and seating: Walk-around deck with sociable reshaped L-sofa on foredeck and open aft deck area with enlarged storage under deck with integrated locker for windlass / bow thruster battery, Lowered floor level in cockpit for driving while standing, Driver and co-pilot seats with flip-up front / swivel function and outer armrests, Storage locker under co-pilot seat, ”Silvertex” Taupe, Graphite, Sterling and Cobre material on driver/co-pilot seats and aft sofa.

Electrics: Main control panel with twin battery switches and automatic fuses for direct supply and 12V outlet located in cockpit, Main fuse panel with automatic fuses and 12V outlet located in Deck stowage / toilet area, Led roof spot lights 4pcs, 2 LED spot lights in Deck stowage / toilet, Light mast with anchor light and integrated loops for courtesy flags, Integrated LED navigation lights, Windscreen linked dual wiper arms, Electric bilge pumps x 2, Signal horn. Carbon monoxide detector in cabin, Fire alarm in cabin, Fuel sensor Vema

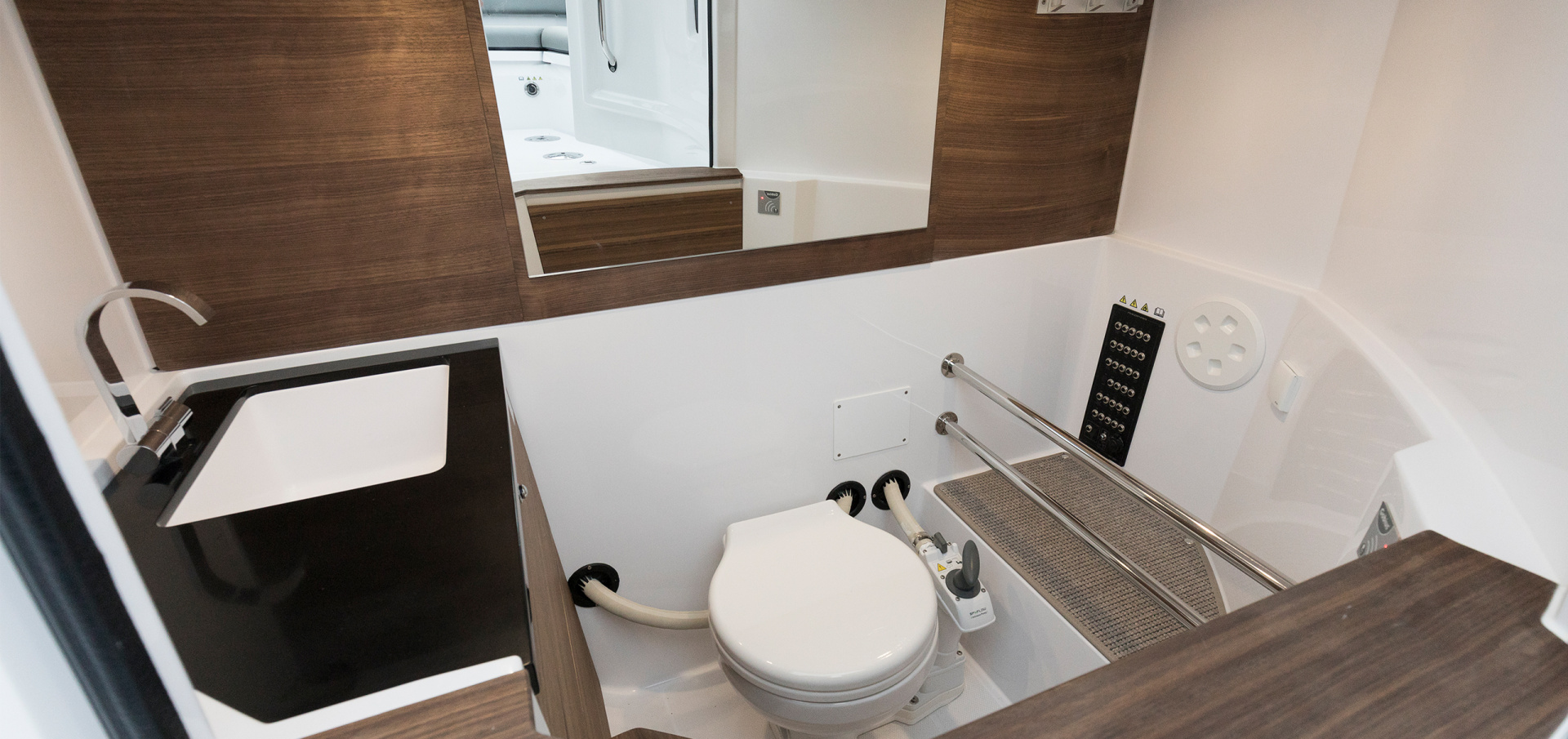

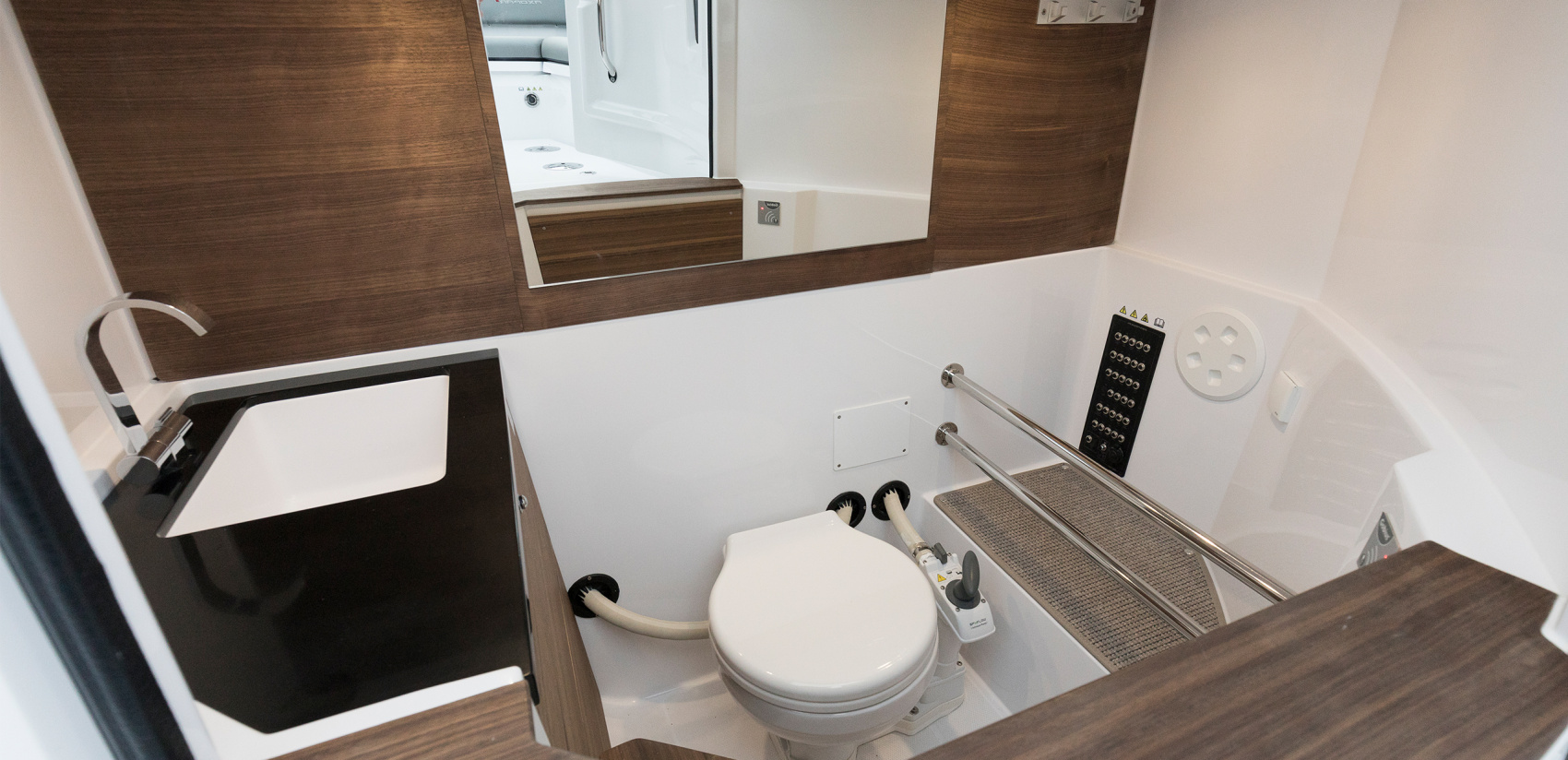

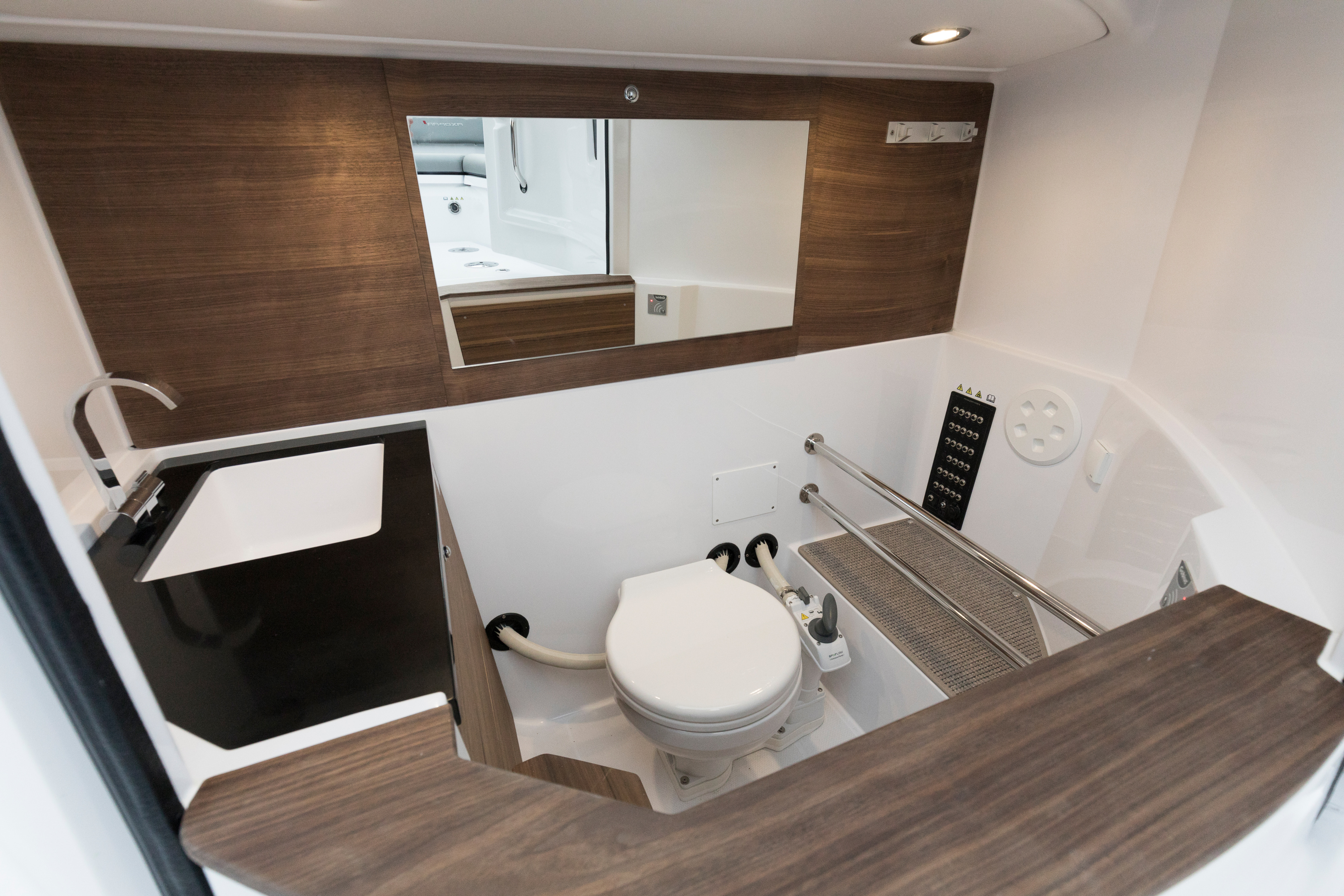

Front deck stowage area / toilet: Enlarged stovage area in center console / optional toilet with raised interior finish with headliner and toiled door in double mold integrated window, warnished oak back panel with integrated mirror

Other: Aluminium fuel tank 300l (/240 EPA)l, 2 kg fire extinguisher, Manual bilge pump, Harbor cover for canvas roof, Flagpole.

Optional packages

BRABUS Line Trim Package

BRABUS LINE COLOR UPGRADE Blue (Only w. BL)

BRABUS LINE COLOR UPGRADE Grey (Only w. BL)

Premium Package, Silvertex
• Table in Esthec Platinum on foredeck • Foredeck seat cushions and back rest • Sun bed on foredeck • Harbour cover for foredeck • Mooring package: incl. 4 x fenders, 4 x fender covers with axopar logo, 4 x fender ropes, 4 x mooring ropes 14mm/10m, 5kg Anchor, 30m Anchor rope

Premium Package, Niroxx

DayCruiser Aft Cabin (not availalble with Wetbar)

Wetbar (only with freshwater option, not available with DC Cabin )

Toilet Package, Electric FW flush

Lighting Package(LED deck lights, Comform Lighting in Saloon, Illuminated 28 log

Toilet Package, Manual seawater flush
• Seawater flush, 40l septic tank, macerator, overboard discharge and dockside pump-out,

Complete Esthec package - Platinum/White
• Esthec platinum complete exterior flooring in platinum colour with white caulking

Optional equipment

Options
• Aft deck bench with stowage with cushion (not av. With: Wetbar and Day Cruiser)
• Antifouling, Grey or White
• Bowthruster Side-Power SE40
• Cooler in aft port storage
• Electric grill 220V (only with wet bar and shore power 220V)
• Electric windlass in bow, Engbo Midi 201 + remote control
• Electrical roof system Webasto
• Esthec only on aft cabin roof, Platinum/White, avalaible with DayDruiser Cabin
• Extended wood floor in cabin, Walnut
• Fore deck cushions incl. backrest, Niroxx
• Fore deck cushions incl. backrest, Silvertex
• Freshwater system+45l tank
• Harbor cover for aft deck, Sunbrella Plus RED(av.Only w. DayCruiser Cabin)
• Harbor cover for fore deck, RED (incl. in premium pckg)
• Heater Webasto AT3900
• Hull color Grey
• Interior, Seats Niroxx
• Protective window covers
• Refrigerator in aft port storage (n.a. with Audio upgr.2)
• Search light
• Shore power 230v with 20Ah charger
• Shower on aft deck (only w. freshwater option)
• Side rails
• Sun shade on foredeck, for stationary use
• Sundeck cushions for aft deck, Niroxx(av. Only with DayCruiser Cabin)
• Sundeck cushions for aft deck, Silvertex (Only w DayCruiser Cabin
• Sundeck cushions on fore deck, Niroxx (only w. table)
• Sundeck cushions on fore deck, Silvertex (only w. table)
• Table on foredeck, (incl. in premium package)
• Targa Arch with rodholders and roof rails
• Targa arch with roof rails
• Top loading refrigerator, Dometic CM 42l
• Trim tabs with joystick
• Two aft deck folding seats with table
• Underwater Lights
• Waterski pole

Pre-rigging
• Mercury upgrade package, Active Trim, VV Mobile, TDS

Electronics
• Chartplotter Garmin GPSMap 1222 Touch
• Chartplotter Garmin GPSmap 922
• Communication Garmin VHF 115i
• Intelliducer
• Radar GMR18 18HD
• Sonar module Garmin GSD
• Twin Chartplotter Garmin GPSMap 1222 Touch
• Twin Chartplotter Garmin GPSmap 922

Audio options
• Audio upgrade1: 4 x speakers + 2ch amplifier
• Audio upgrade2: 1 x subwoofer + upgrade to 4ch amplifier
• Control unit for Fusion system, Helm
• Fusion Entertainment system, incl. 2 x speakers in cockpit

FULL PRICE LIST - DEALERS - CONFIGURATORS

There is a large amount of options to choose from when creating the ultimate Axopar boat to customers specific needs. Learn more about the different options available and their prices below.
