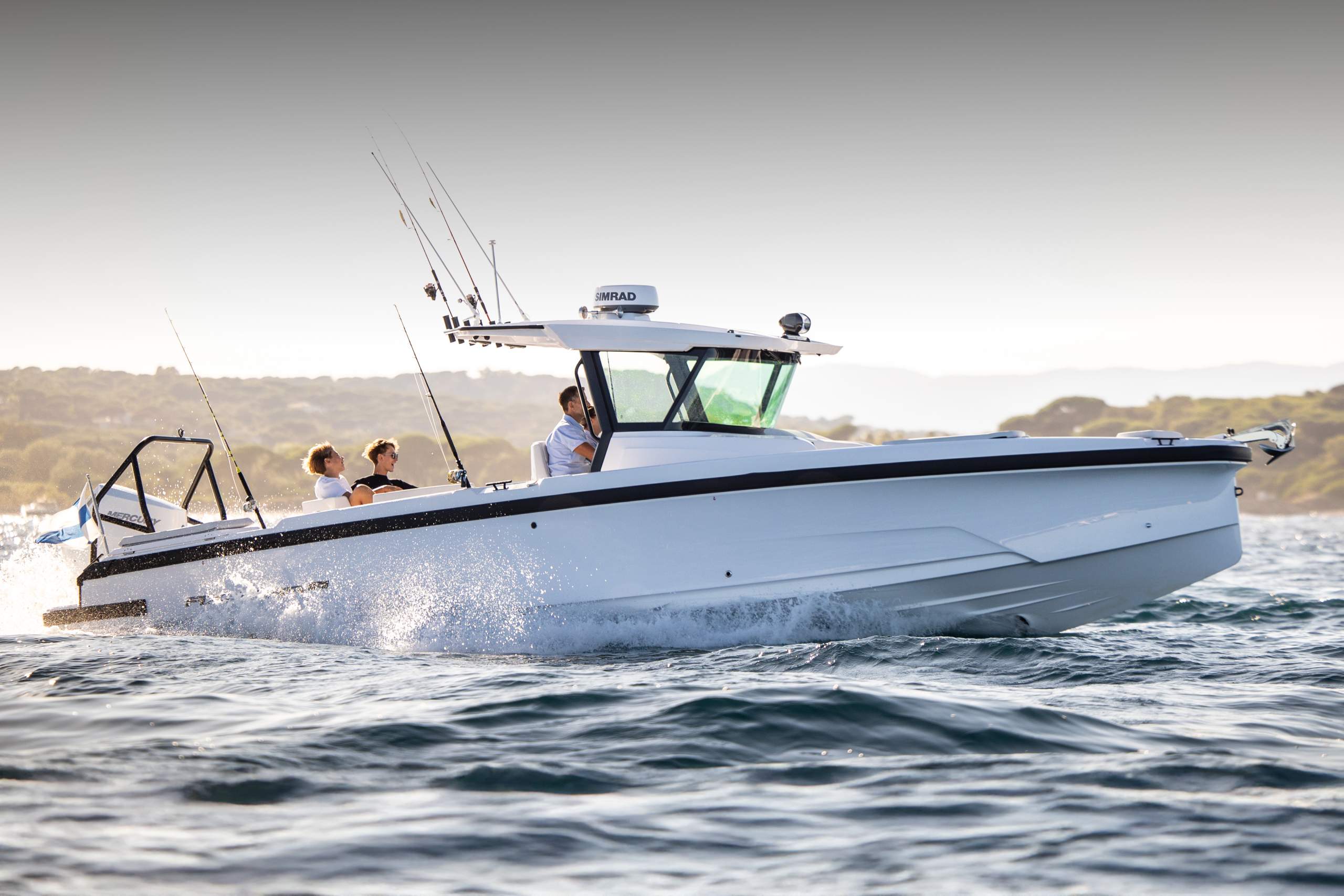

Axopar_29CCX-0287_Axedit_1.1

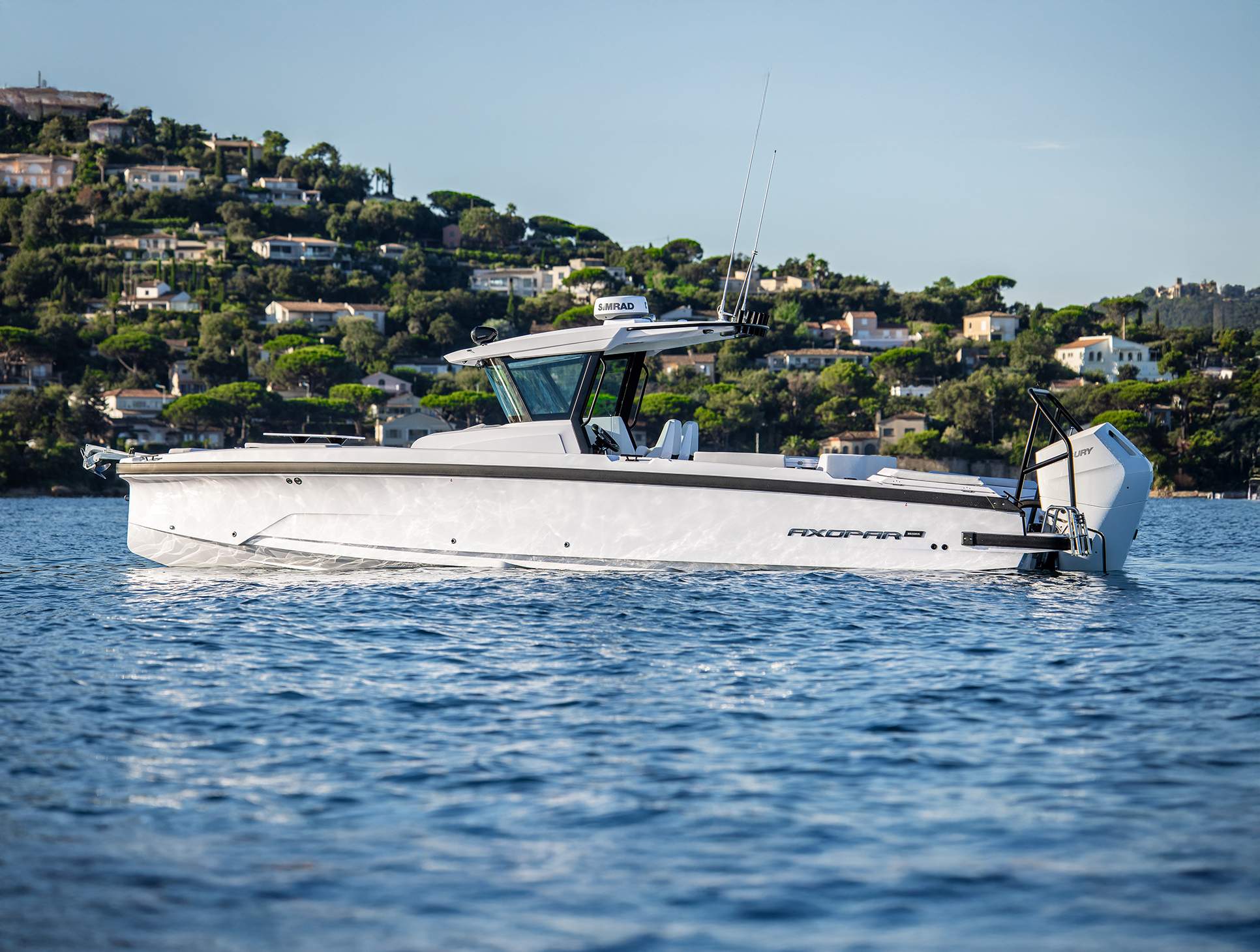

Axopar 29 CCX

The Axopar 29 CCX now caters to a wide range of boating enthusiasts, from seasoned adventurers to first-time boaters, with complete freedom to choose between going ‘full-on’ fishing or selecting between several of the most sociable layouts out there.

Highlights Tech Specs

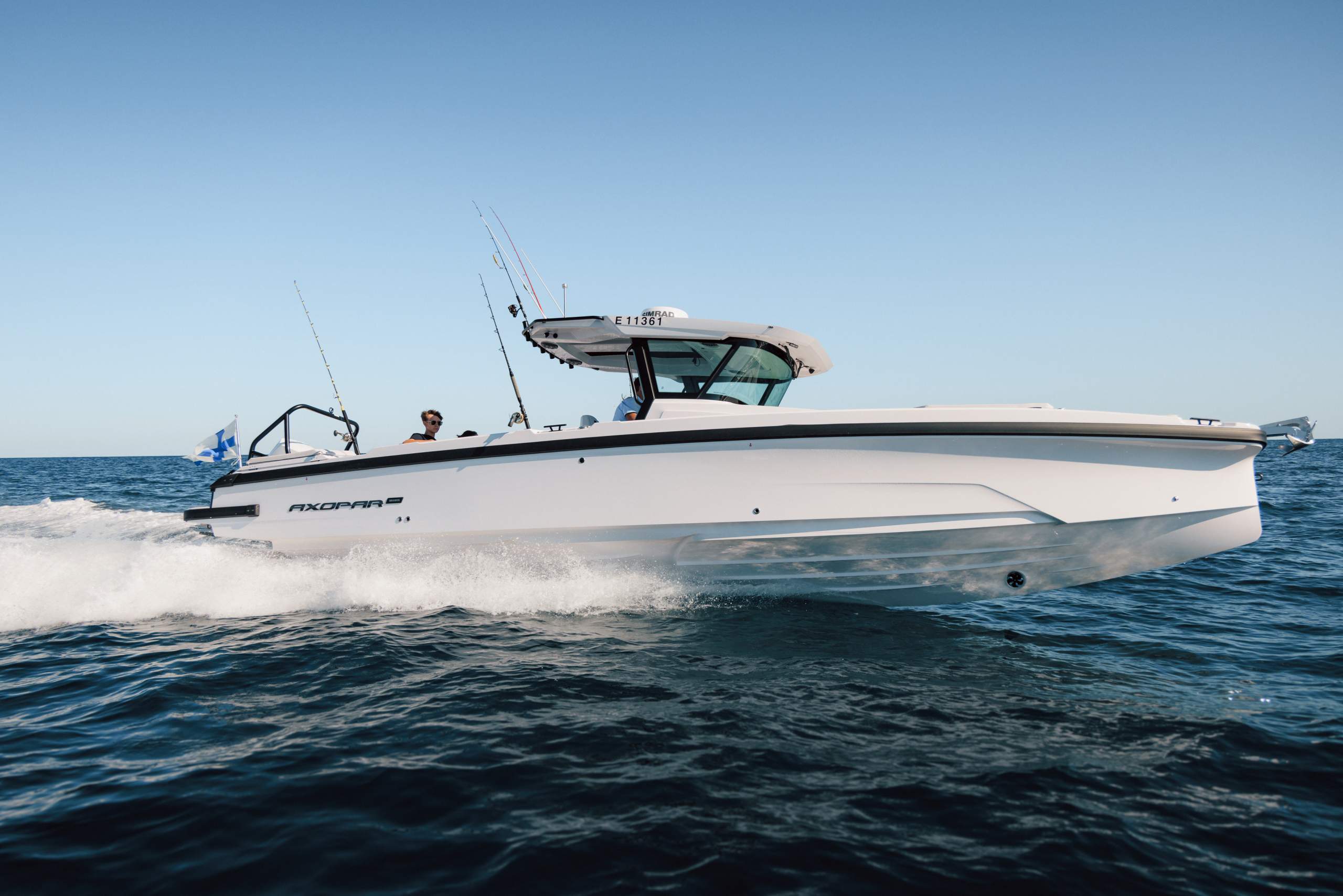

Axopar 29 CCX_099A5294

Integrating Sustainable Practices Into Design

Axopar boats are built for maximum efficiency and performance, making them lighter, faster and more sustainable. Our boats are constructed with up to 35-40 % less material than many traditional boats in their segments, using even up to 50 % less fuel and harnessing power more efficiently achieving speeds that many competitor boats require more power to reach. The hull of the Axopar 29 represents its third evolution since the original Axopar 28 was launched a decade ago. Hydrodynamic improvements have made it one of the most responsive, fuel-efficient, and best-handling hulls in its class today.

Aft Deck Layouts

WBG__0002_29CCX_Open_Aft_Bolsters_Baltic

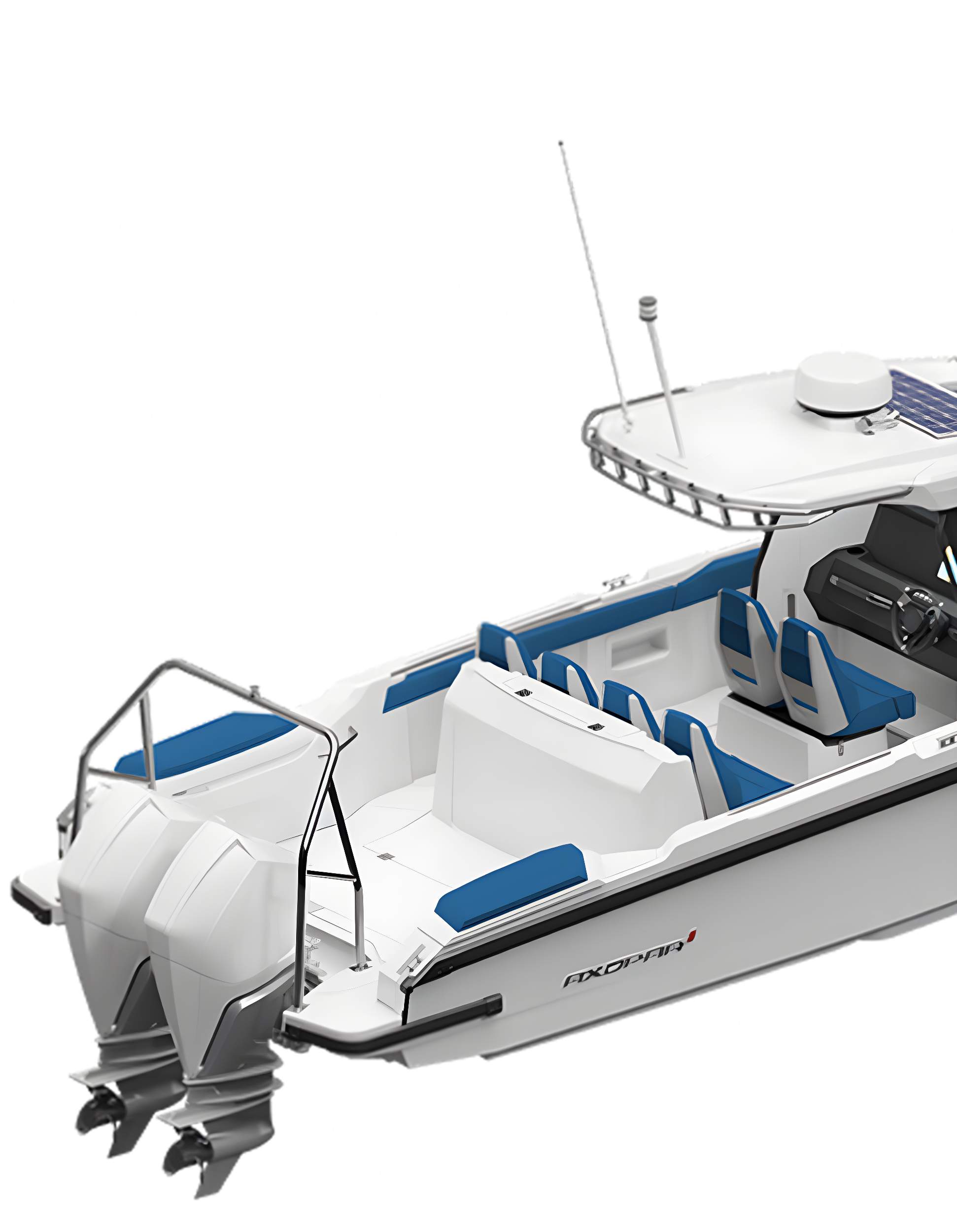

Open Aft

with optional Silvertex Baltic Color and Bolsters.

WBG__0005_29CCX_Aft_Deck_Bench_Bolsters_Sandstone

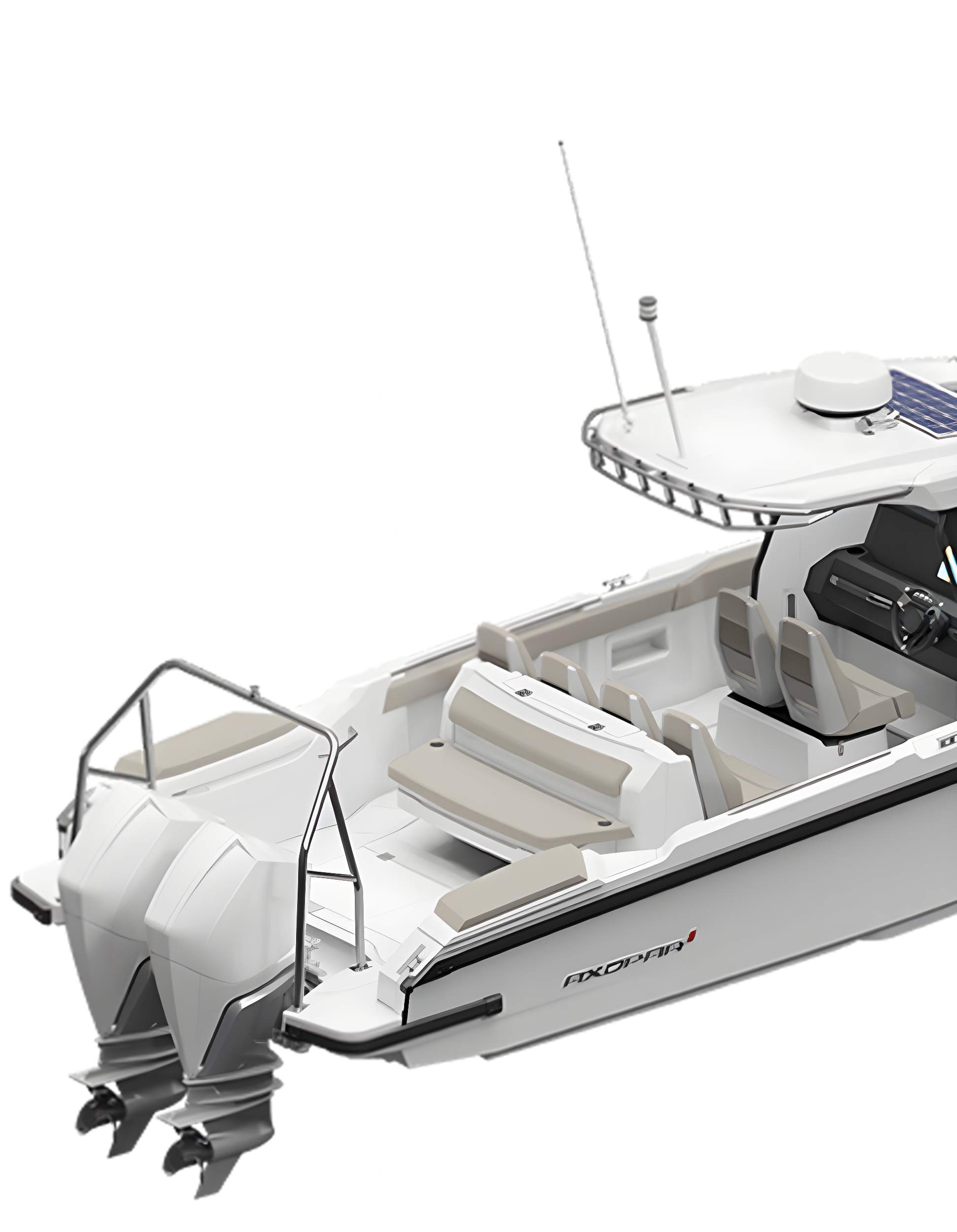

Aft Deck Bench

With optional Silvertex Sandstone Color and Bolsters.

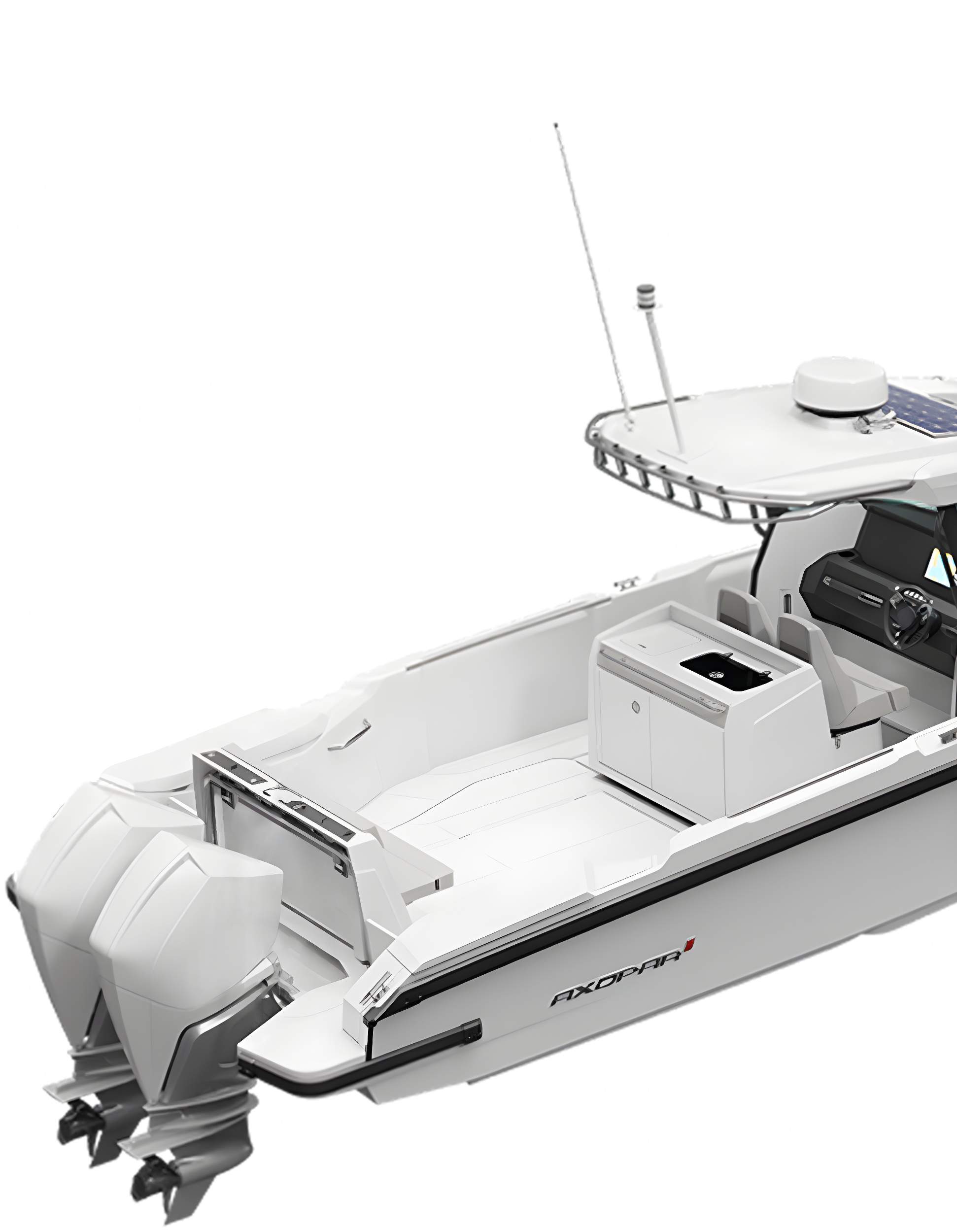

WBG__0004_29CCX_Main_Baitwell_Aft_Leaning_Post_Chalk_Axedit

Main Baitwell

with Aft Leaning Post and optional Linetex Chalk Upholstery.

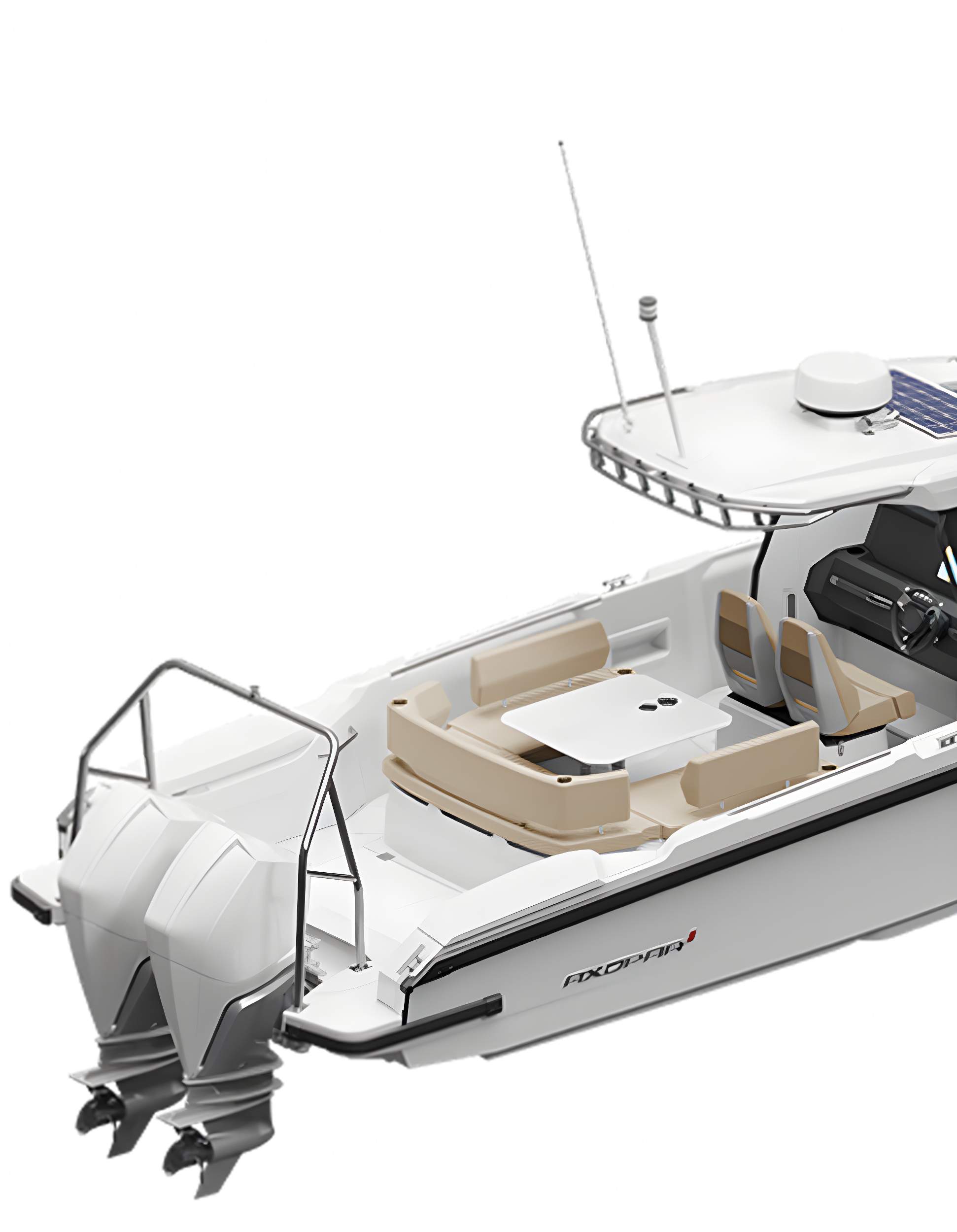

WBG__0001_29CCX_U-Sofa_Dust

U-Sofa

with optional Linetex Dust Upholstery.

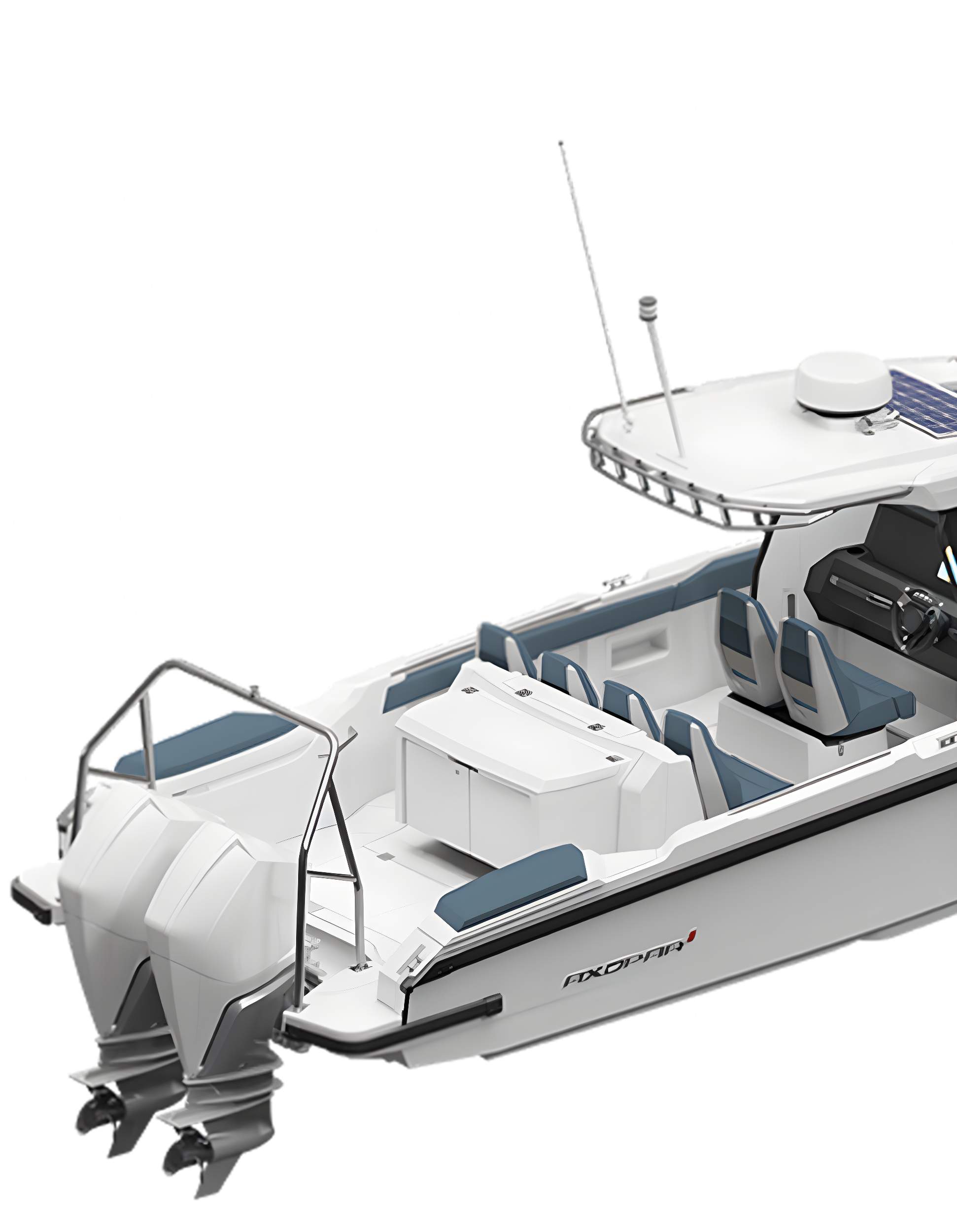

WBG__0000_29CCX_Wet_Bar_Bolsters_Petrol

Wet Bar

with standard Silvertex Petrol Upholstery and Bolsters.

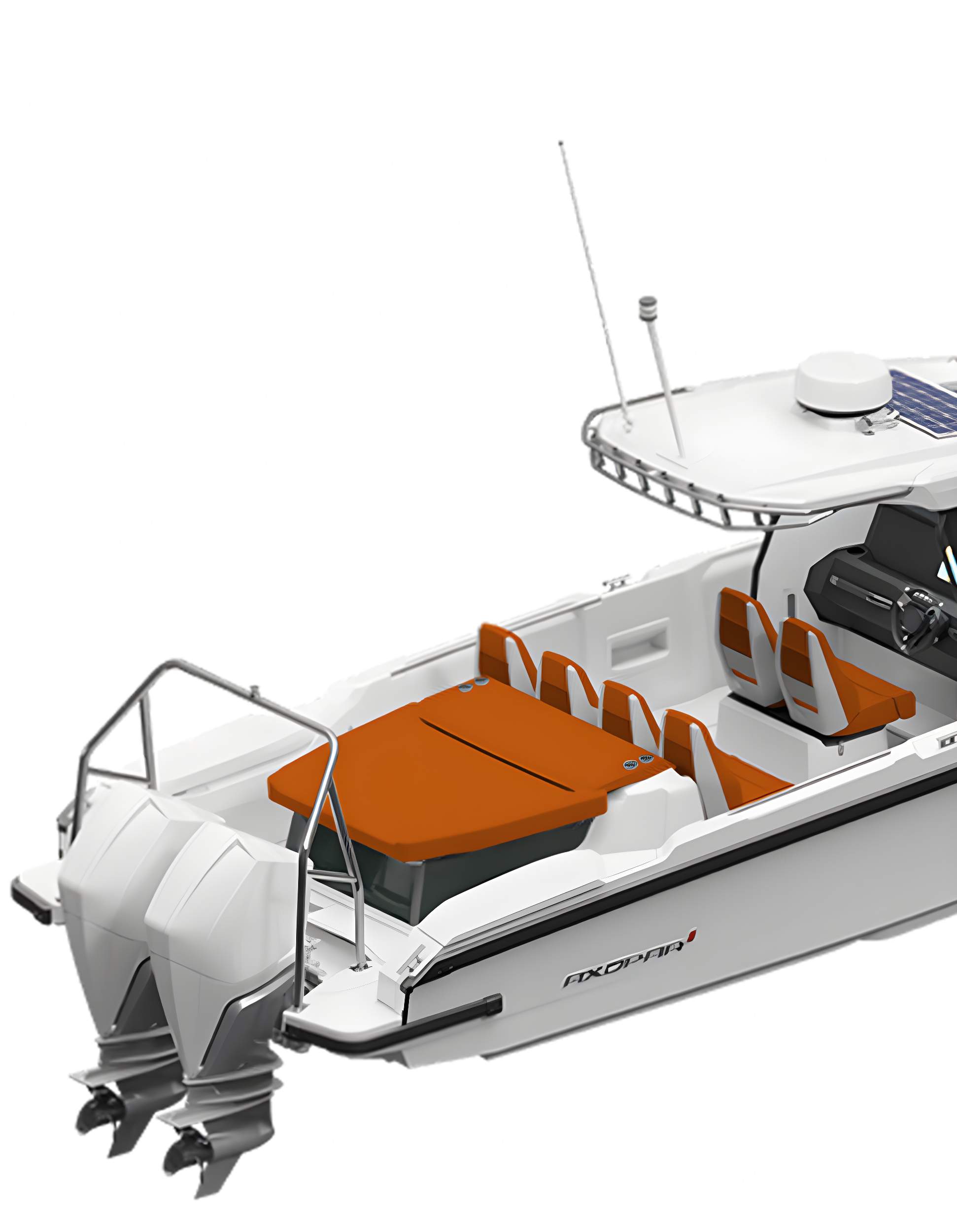

WBG__0006_29CCX_Aft_Cabin_Cobre

Aft Cabin

with Optional Silvertex Cobre Upholstery.

Feature Highlights

Option Highlights

Configurations & Layouts

We want to provide you with an extensively customizable, user-friendly boat that meets your everyday needs year-round and supports all your adventures. The configuration you choose will define the final layout of your boat. Below are a few examples of exterior and interior layouts available.

We want to provide you with an extensively customizable, user-friendly boat that meets your everyday needs year-round and supports all your adventures. The configuration you choose will define the final layout of your boat. Below are a few examples of exterior and interior layouts available.

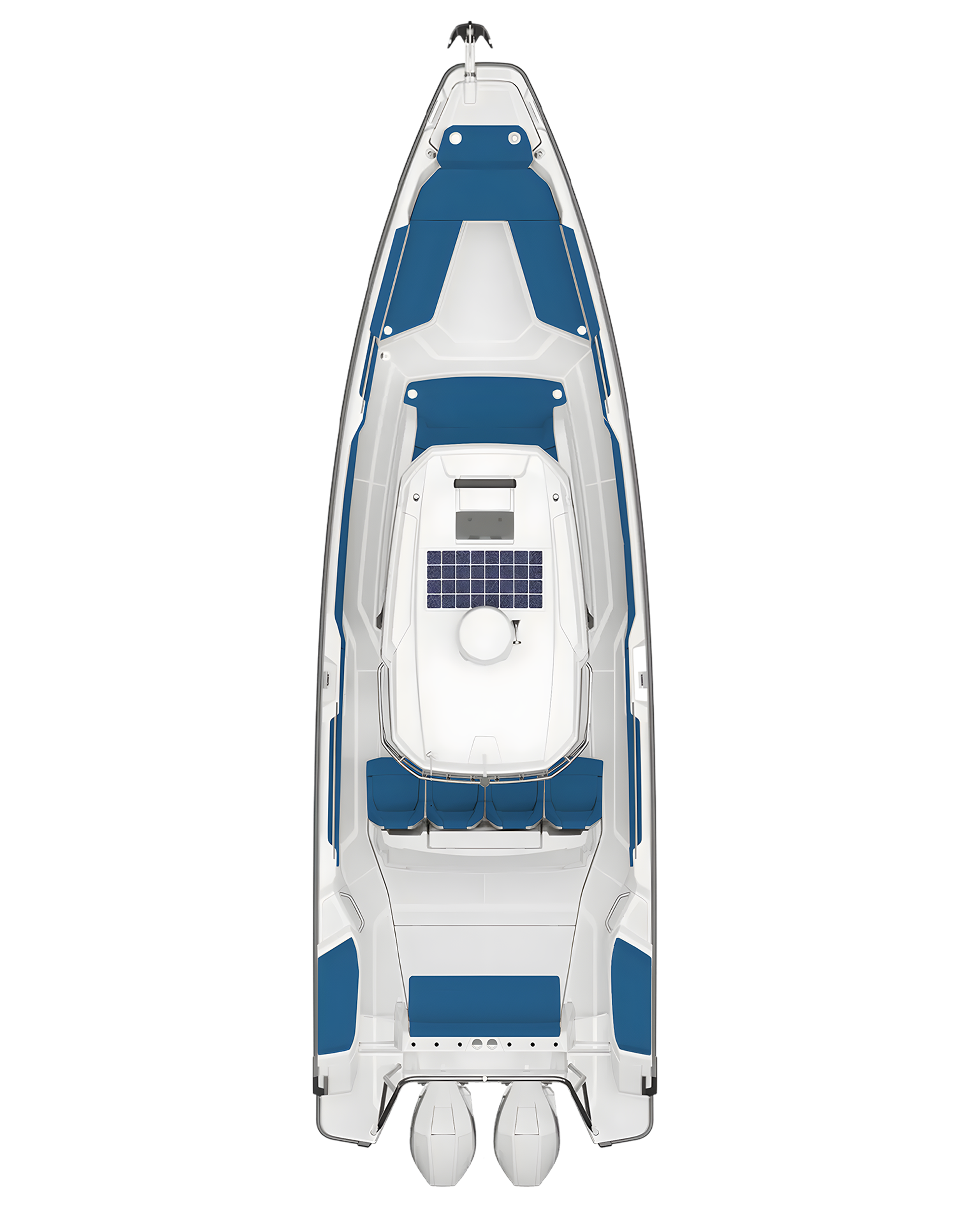

29CCX_Open_Aft_Aft_Leaning_Post_U-Sofa_Baltic

Standard Open Aft

With optional Aft Leaning Post and U-Sofa with Silvertex Baltic.

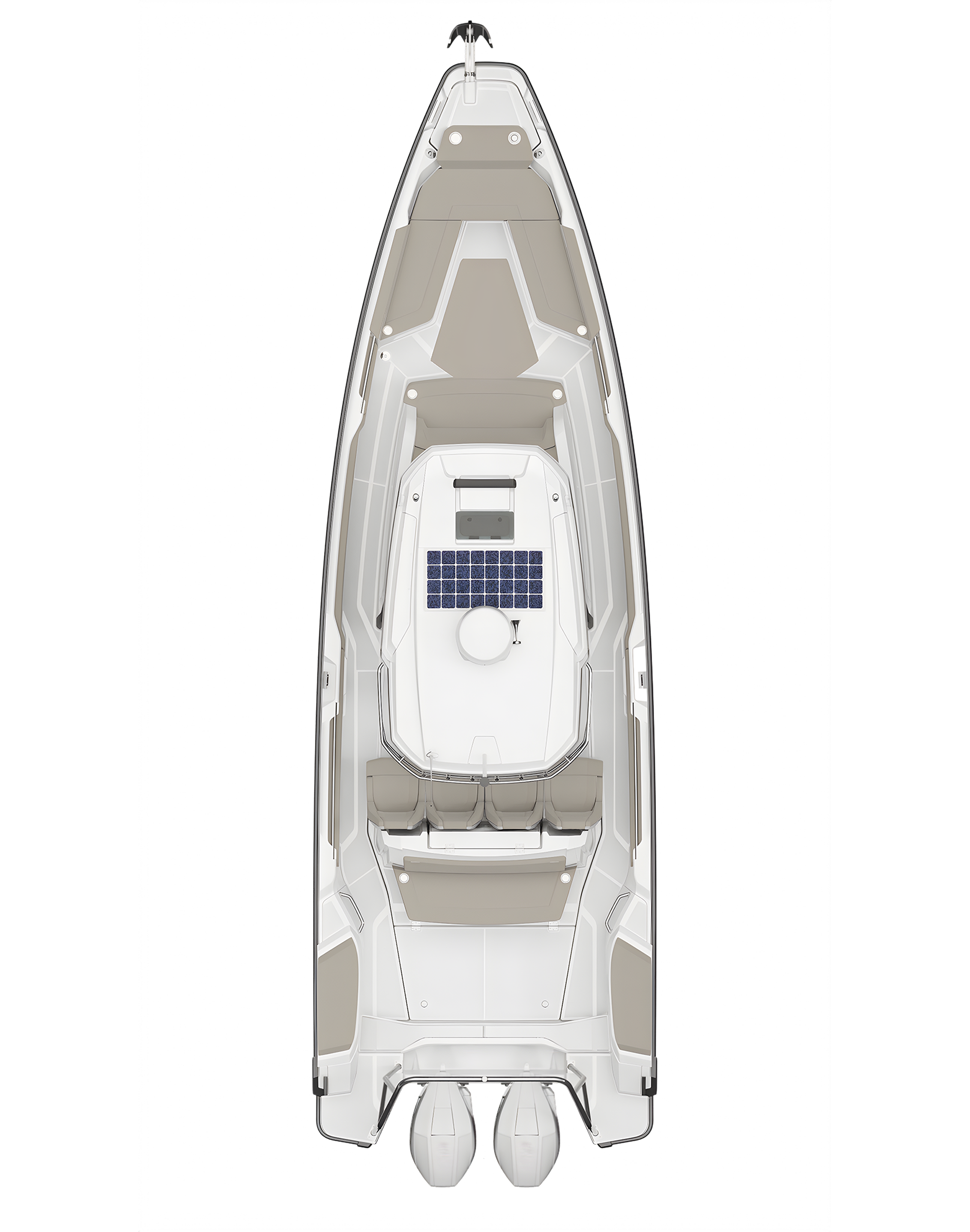

29CCX_Aft_Deck_Bench-Fwd_Facing_Sun_Lounge_Sandstone

Aft Deck Bench

With optional Fore Deck U-Sofa with Forward Facing Sun Lounge and optional Silvertex Sandstone Upholstery.

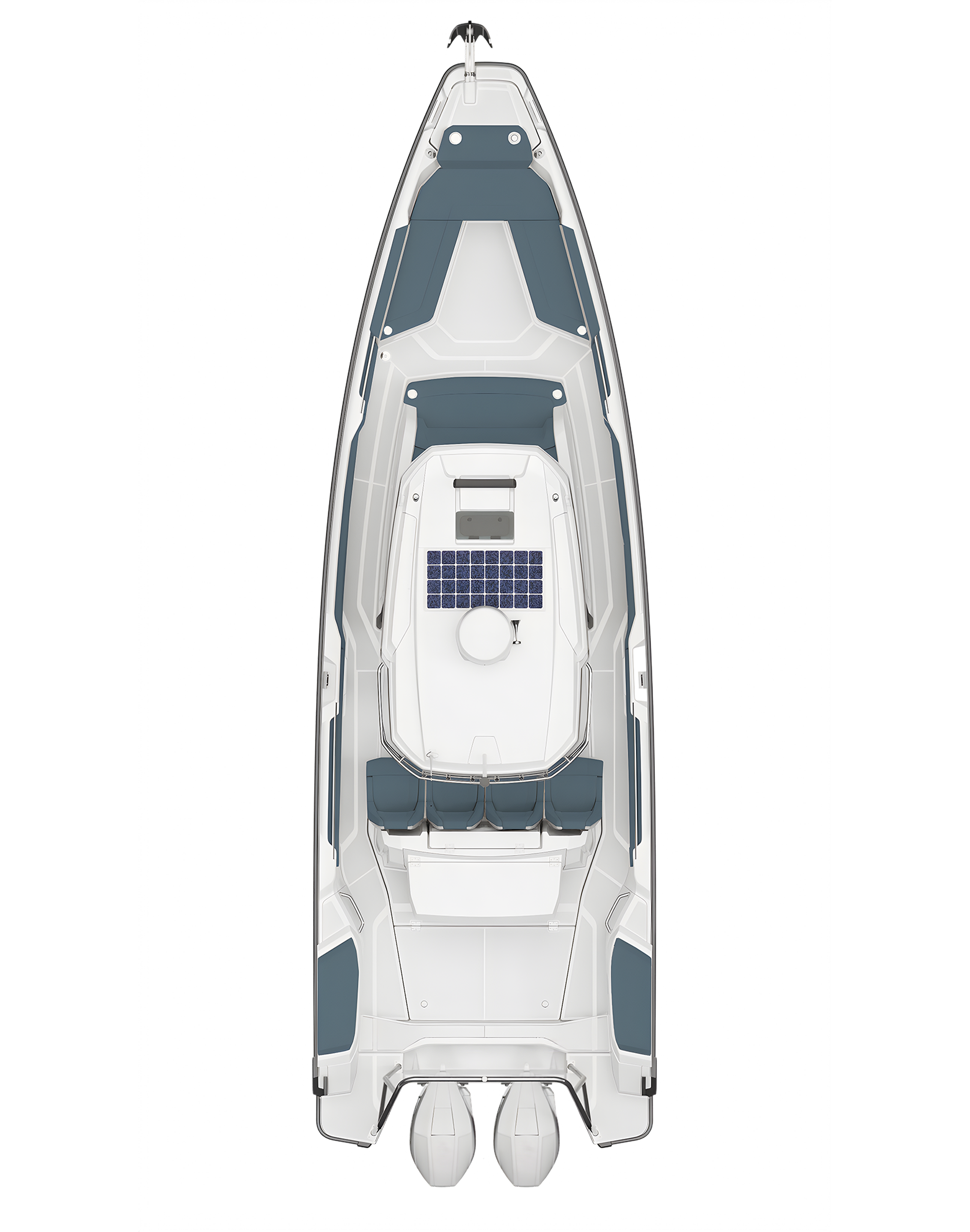

29CCX_Wetbar_U-Sofa_Petrol

Wet Bar

With optional U-Sofa and standard Silvertex Petrol Upholstery.

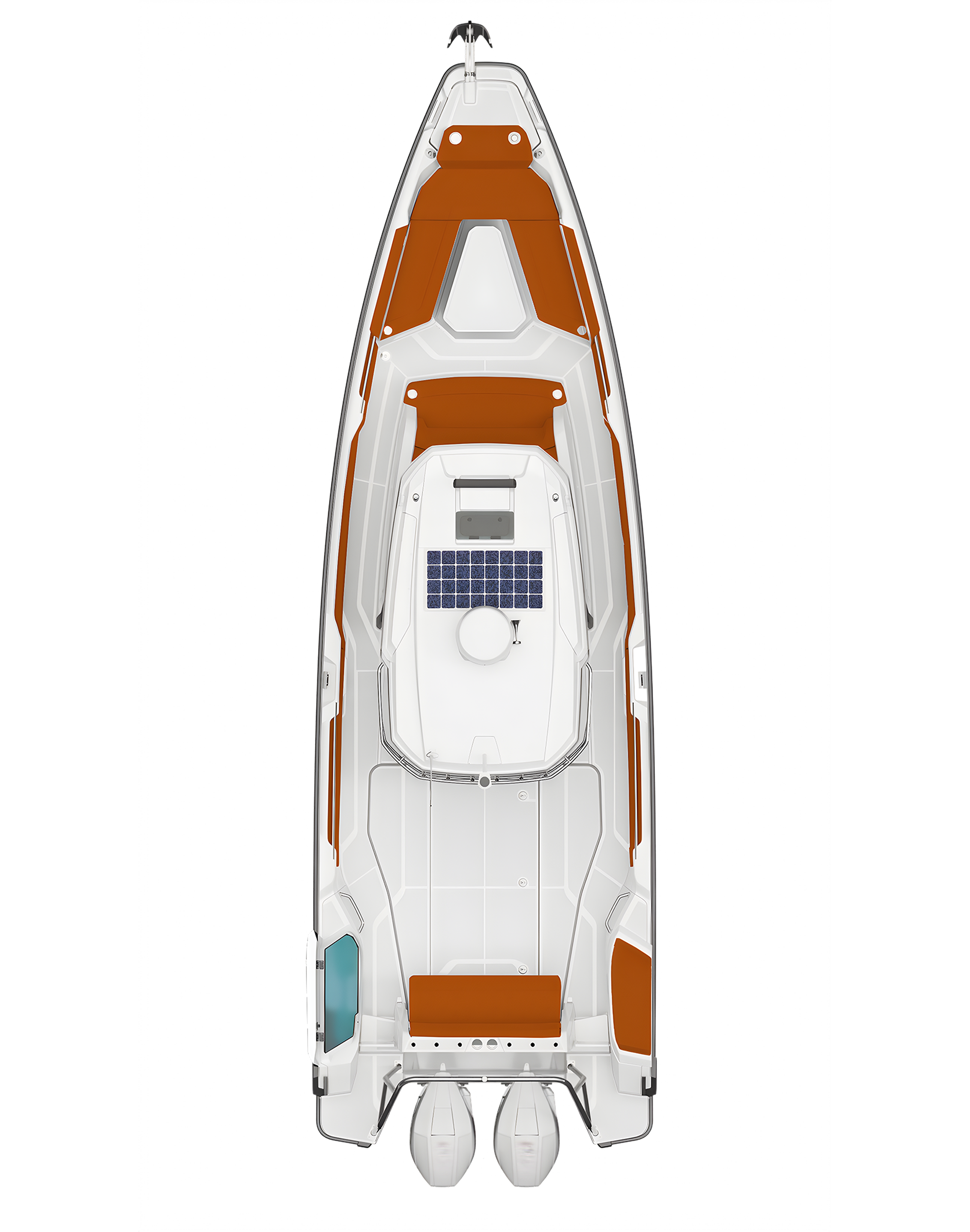

29CCX_Main_Baitwell_Aft_Leaning_Post_Livewell_U-Sofa_Table_Cobre

Aft Leaning Post

With optional Main Baitwell, Fenderbox Livewell, U-Sofa with Sunbed Cushions, and optional Silvertex Cobre.

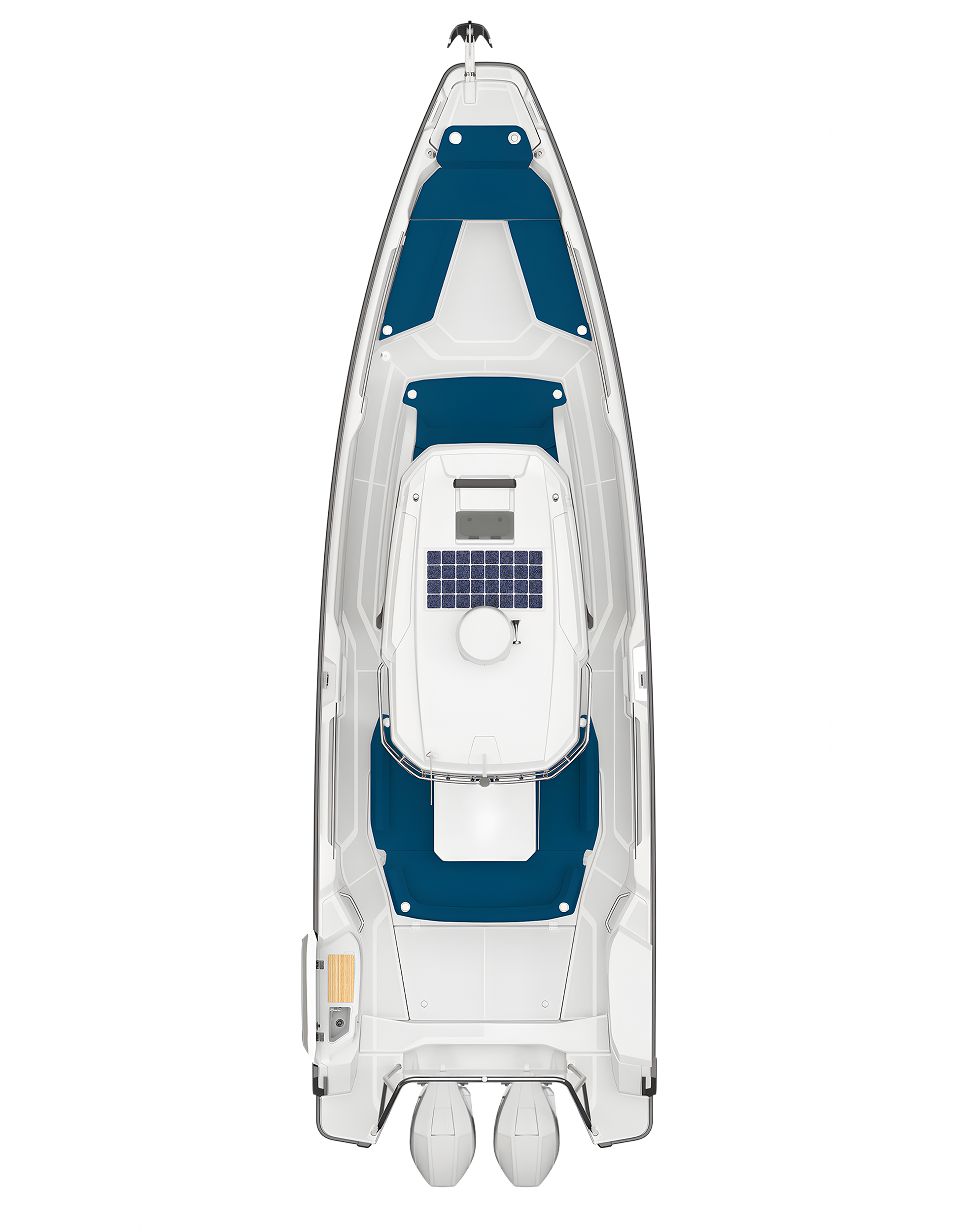

29CCX_Fenderbox_Wetbar_U-Sofa_U-Sofa_Sphere

U-Sofa

With optional Fenderbox Wet Bar, U-Sofa with Optional Linetex Sphere Upholstery.

29CCX_Aft_Cabin_L-Sofa_Table_Dust

Aft Cabin

With L-Sofa and table, with optional Linetex Dust.

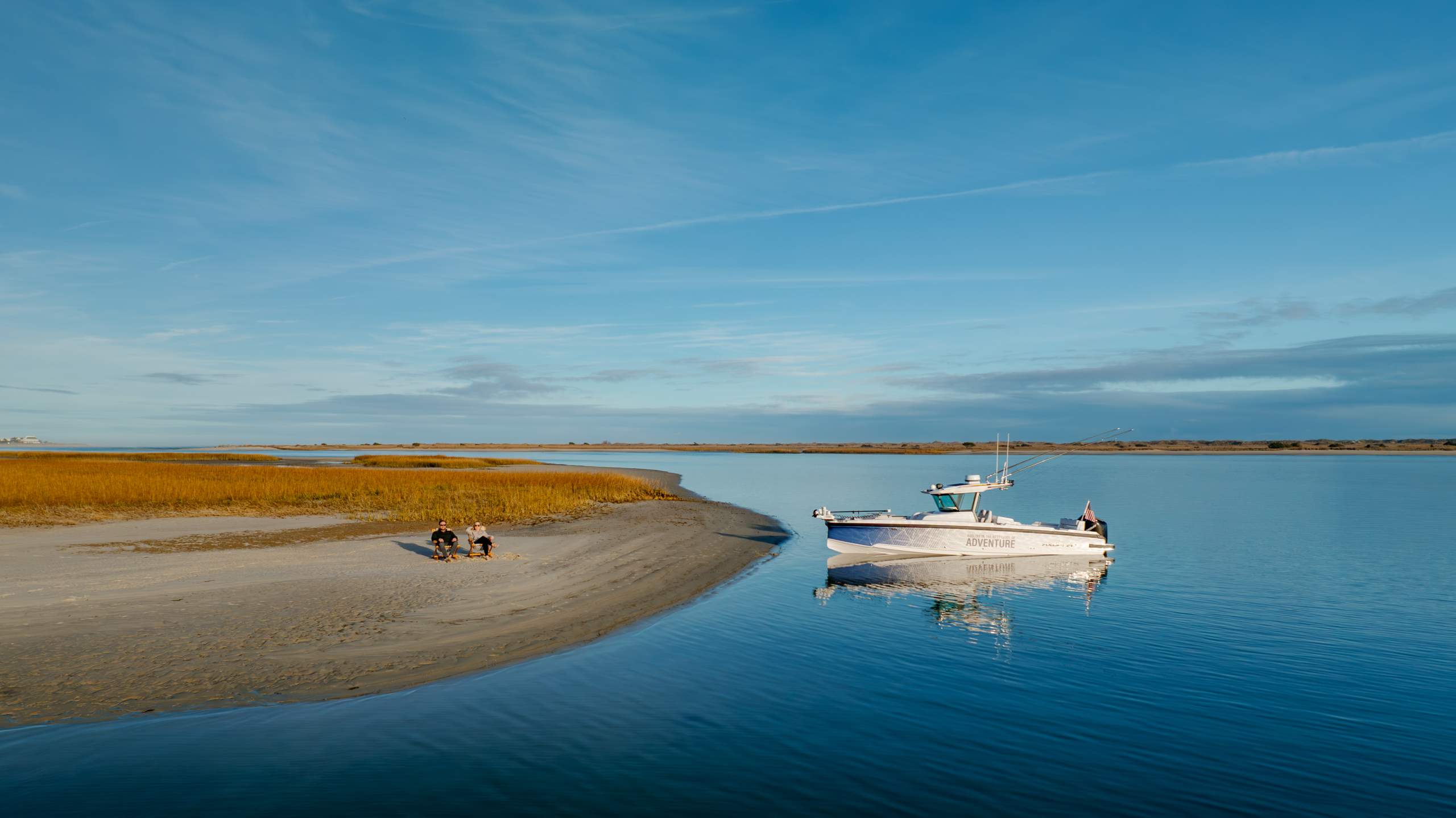

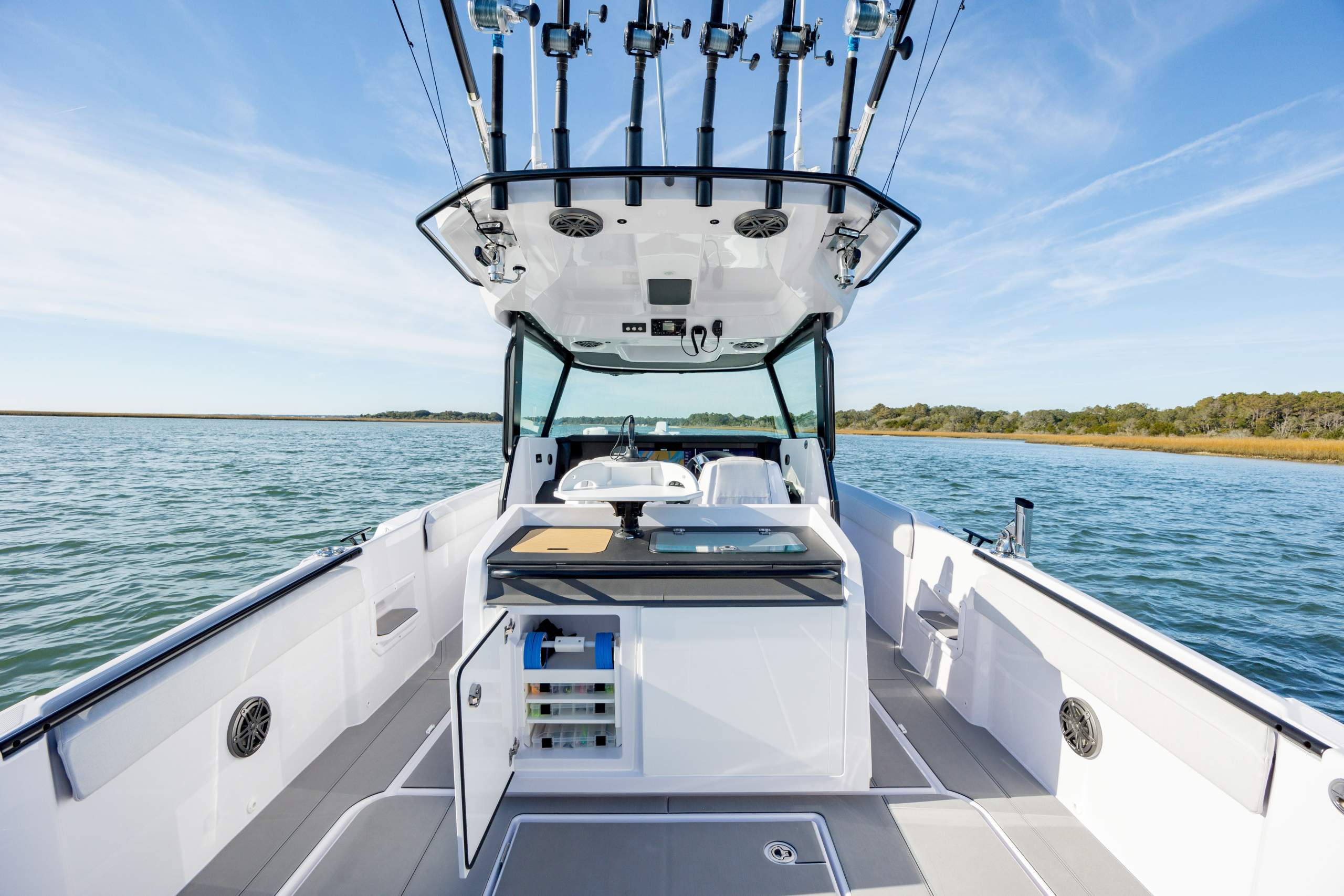

Axopar 29 CCX Fishing edition_DD8A9442

Axopar 29 CCX Fishing edition_DD8A9087

Axopar_29CCX-6030

Axopar_29CCX-6731

Axopar_29CCX-4712

A more athletic appearance, with raised bulwarks, enhances offshore capability and safety while moving around the deck, even during intense fishing sessions. The integrated handrails help prevent fishing lines from snagging, and the optional coaming pads offer increased comfort.

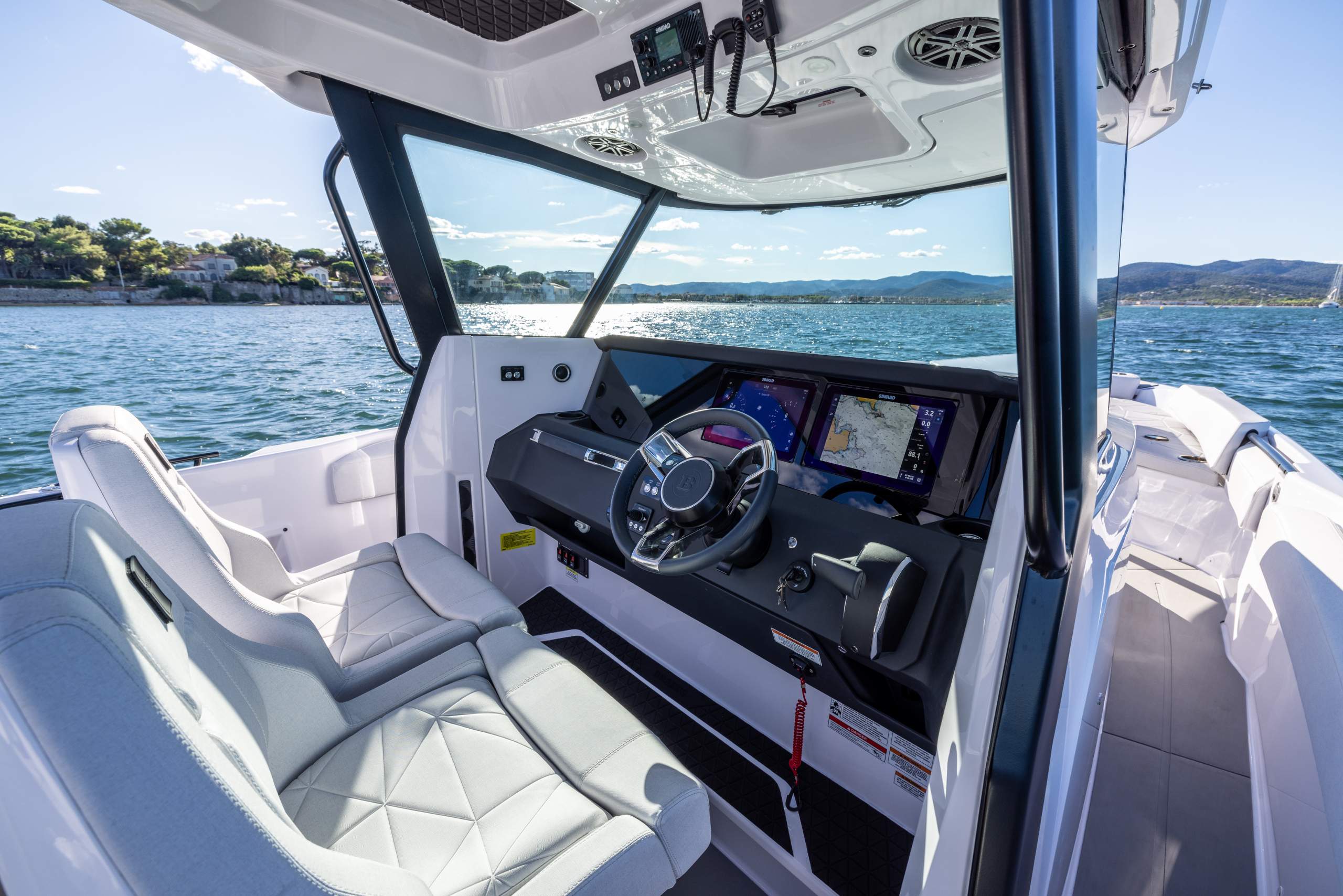

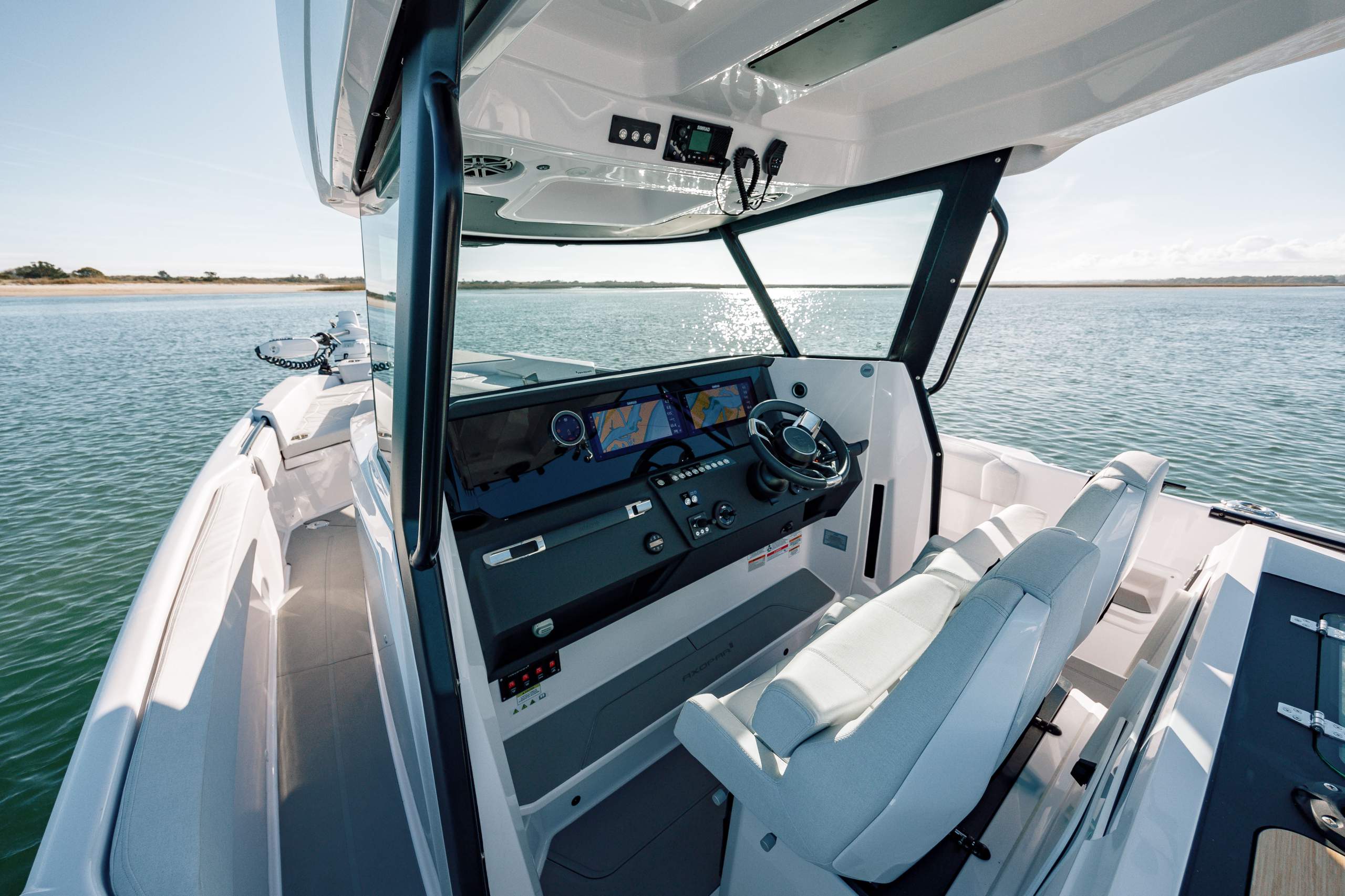

The console features a forward-tilting, fully enclosed, toughened glass windshield and side windows, offering excellent protection from wind chill, spray, and rain, reducing glare and displacing rain and spray very effectively, so wipers are rarely needed.

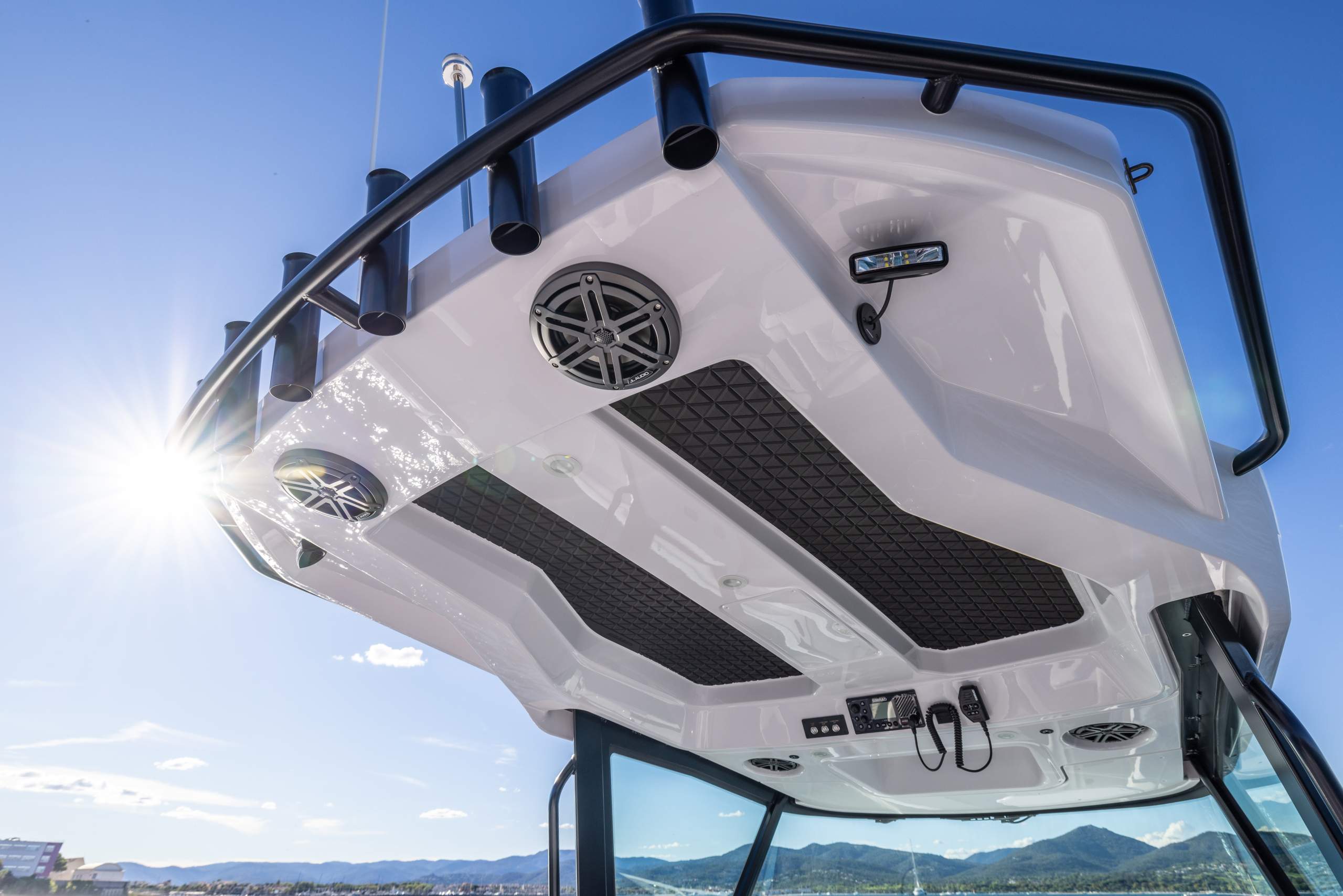

The forward-extending hardtop contributes to the boat’s modern look, offering better sun protection and when needed, airflow for the driver through its integrated skylight located in front of the helm.

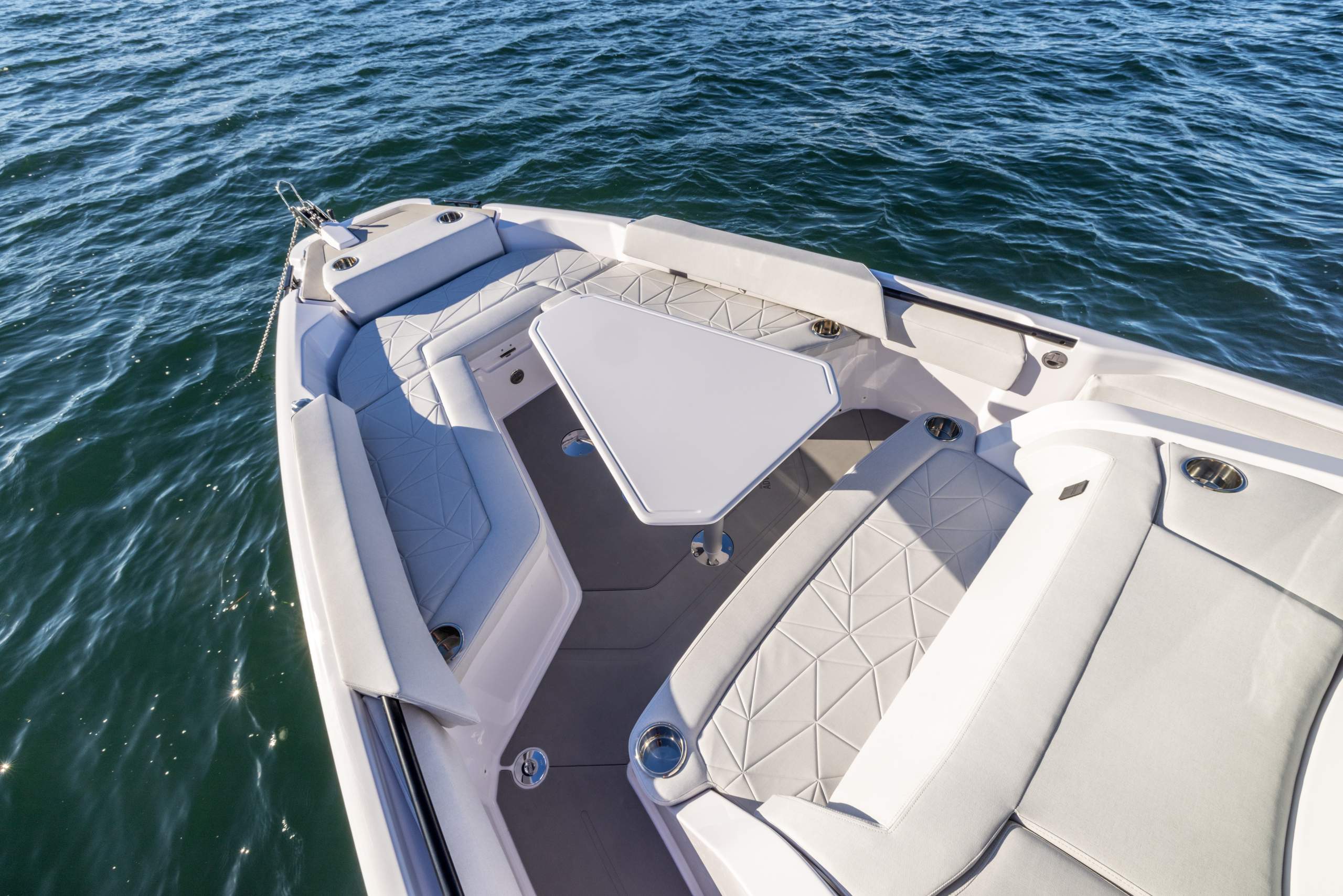

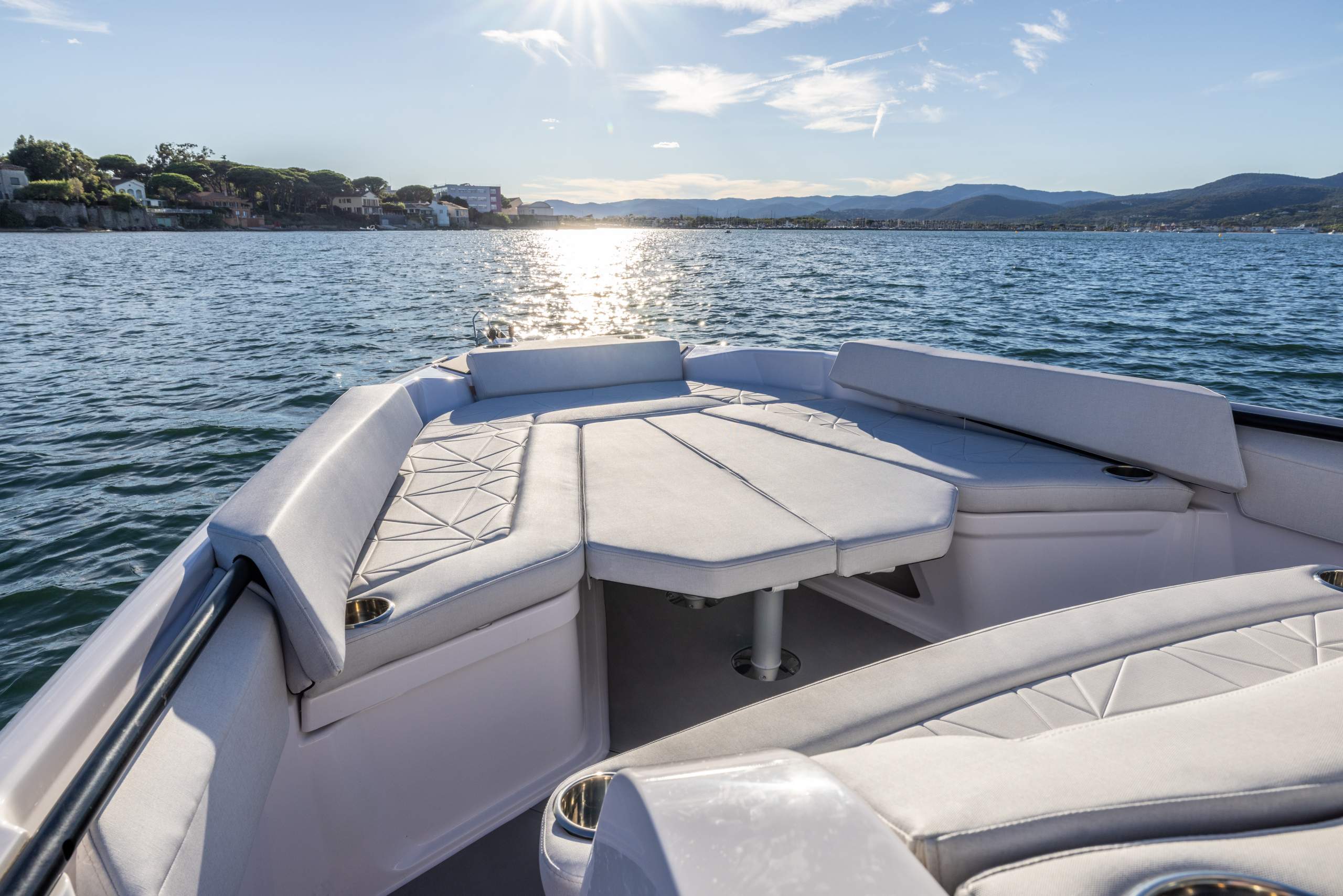

The familiar foredeck from the 29-range is carried over, seating up to eight people around an optional U-sofa extension and hi-lo table, which can be converted into a sunbed. Additionally, a fish box option is available on the CCX fore deck.

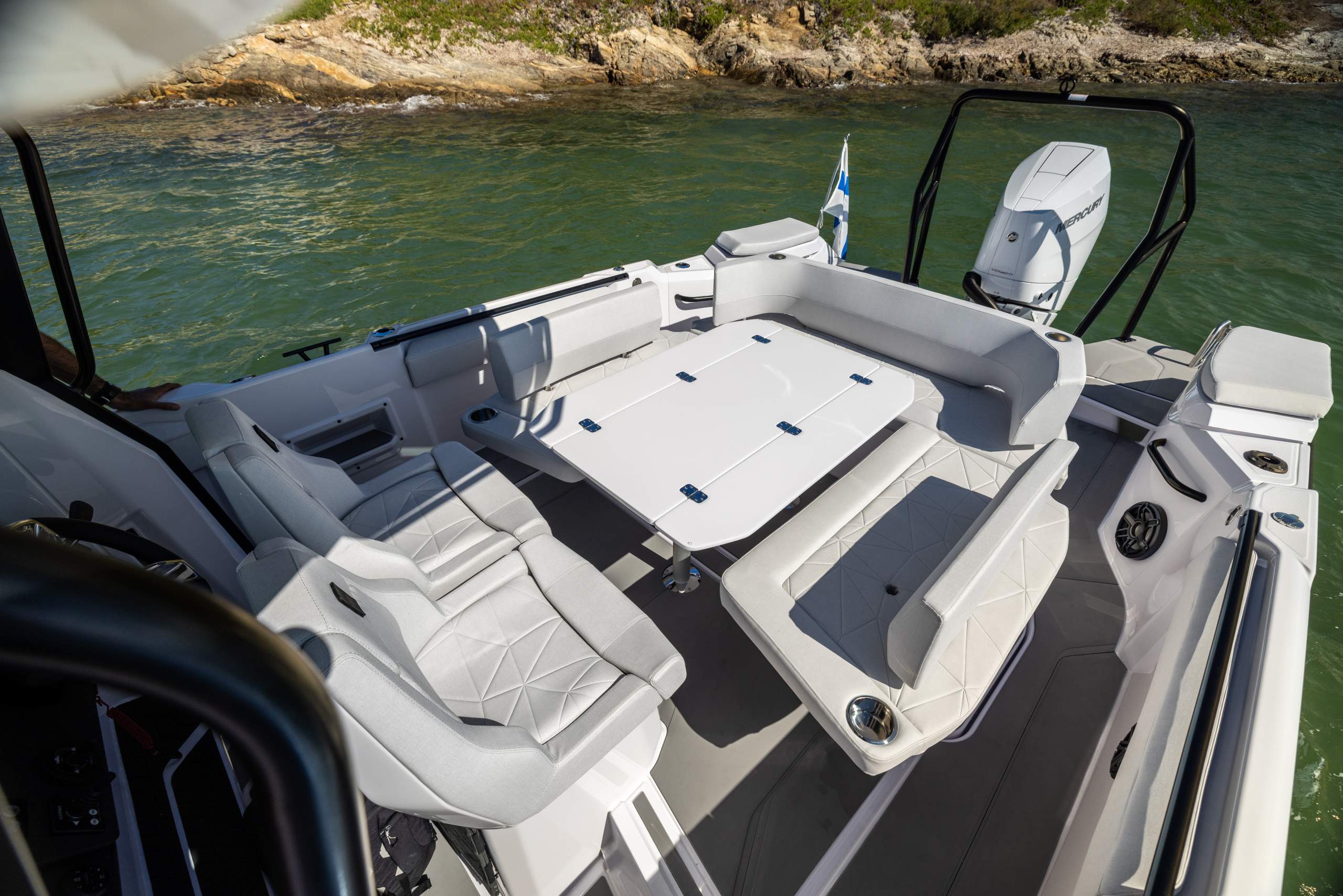

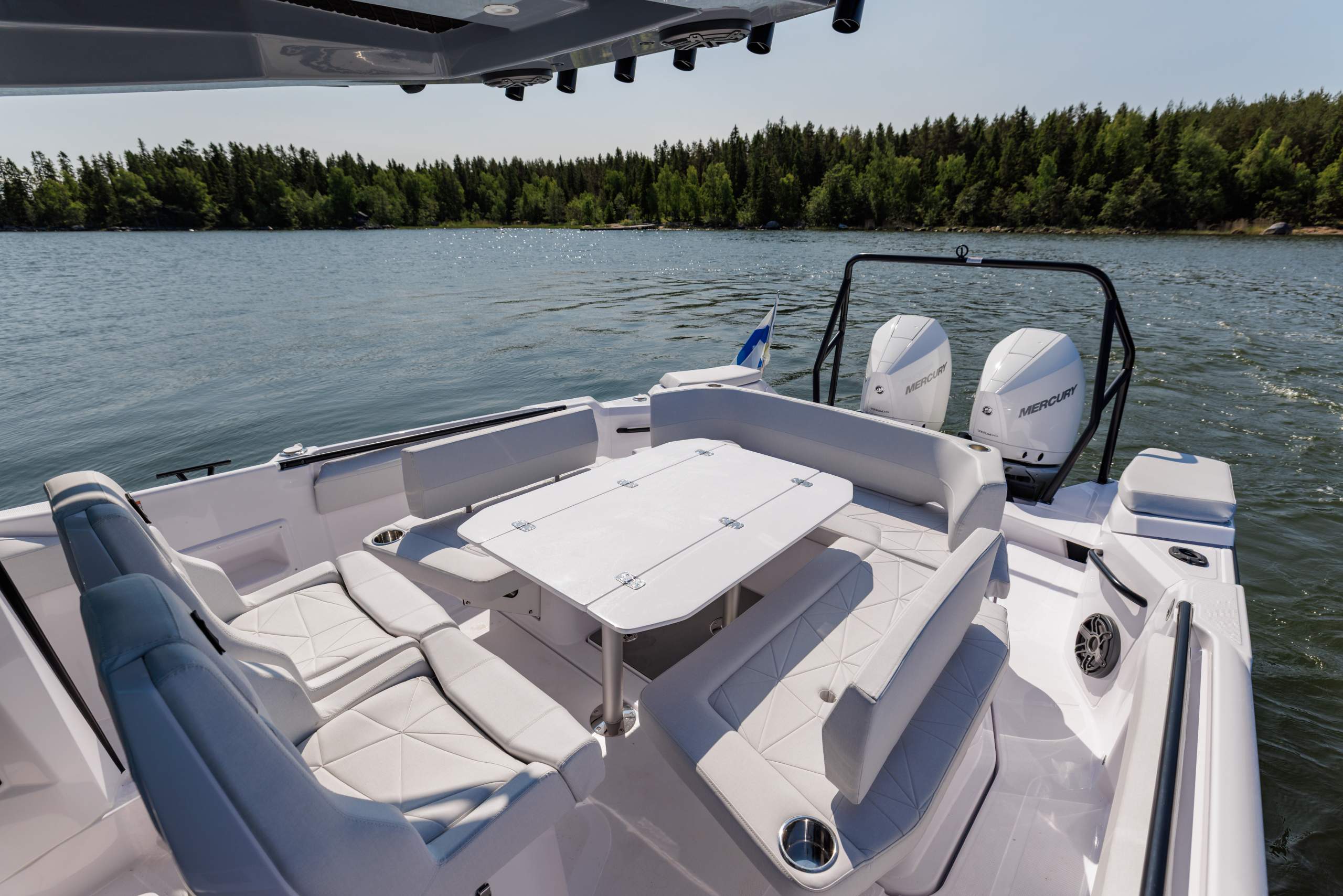

Together with a large, foldable table, the U-sofa option creates an immersive, sociable, multi seating arrangement around the cockpit.

Videos Featuring the Axopar 29 CCX

Upholstery Colors

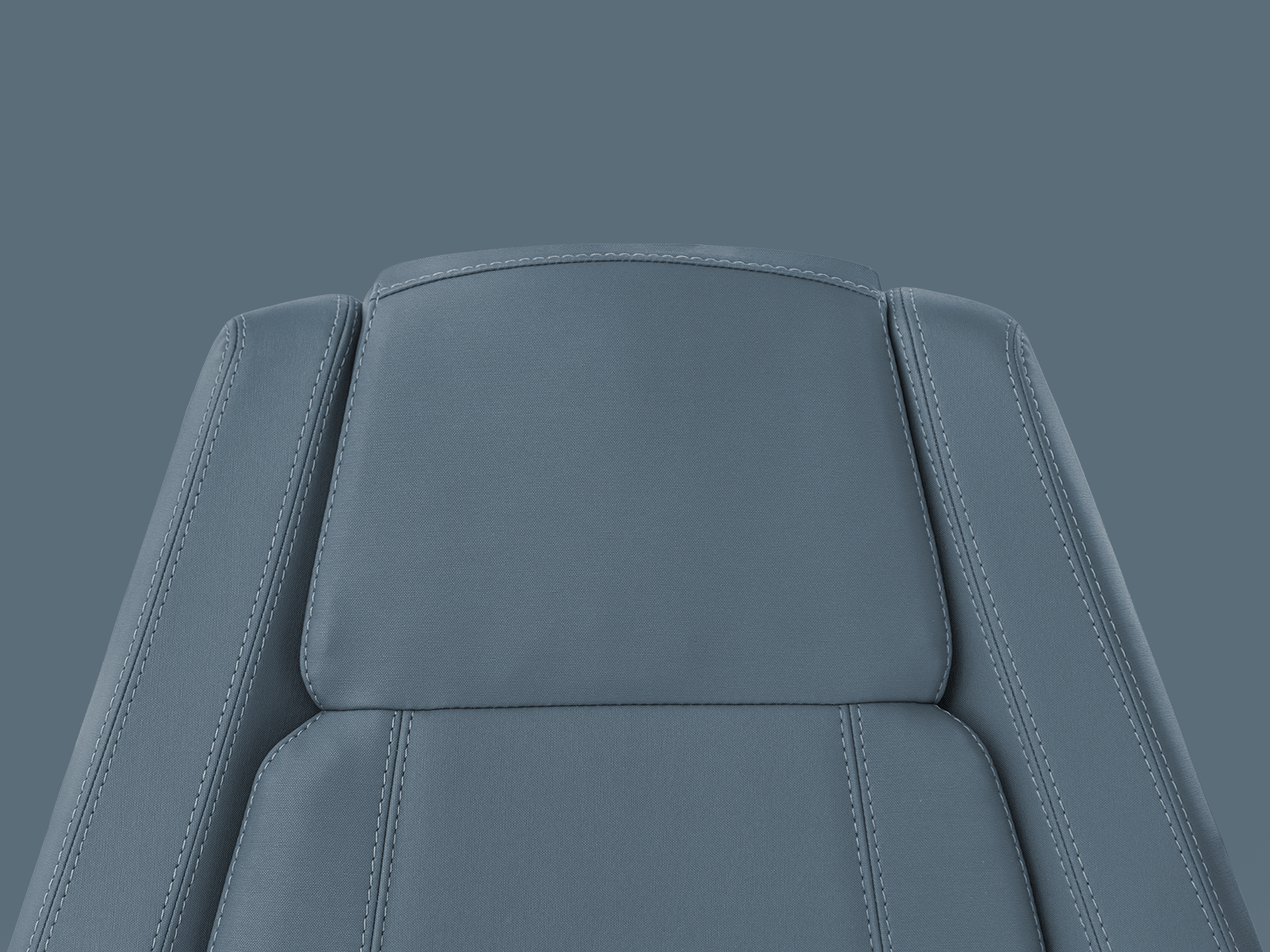

Silvertex_Petrol_BG

Silvertex Petrol

Standard

Silvertex_Sandstone_BG

Silvertex Sandstone

Silvertex_Baltic_BG

Silvertex Baltic

Silvertex_Cobre_BG

Silvertex Cobre

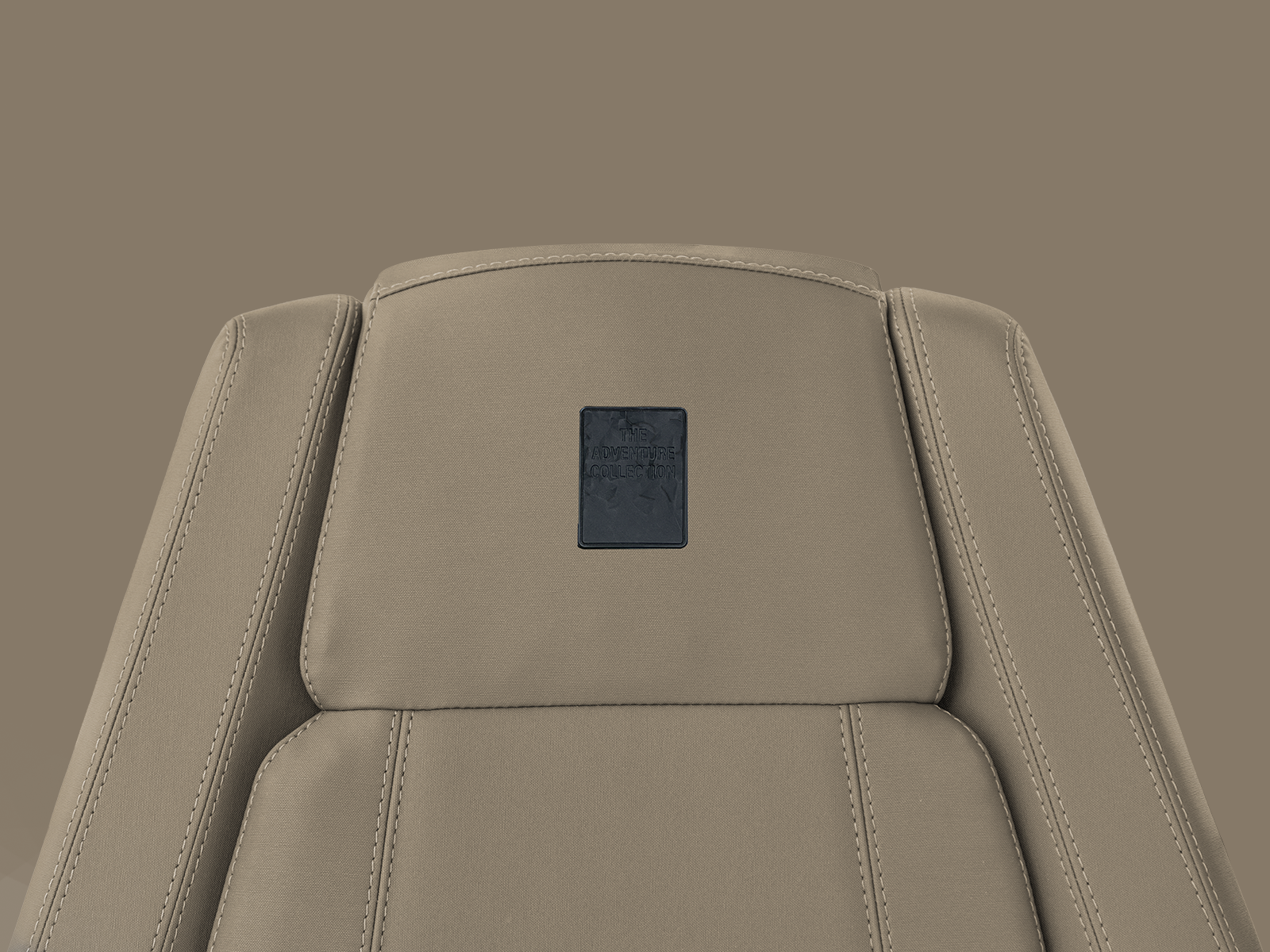

Linetex_Dust_BG

Linetex Dust

Linetex_Sphere_BG

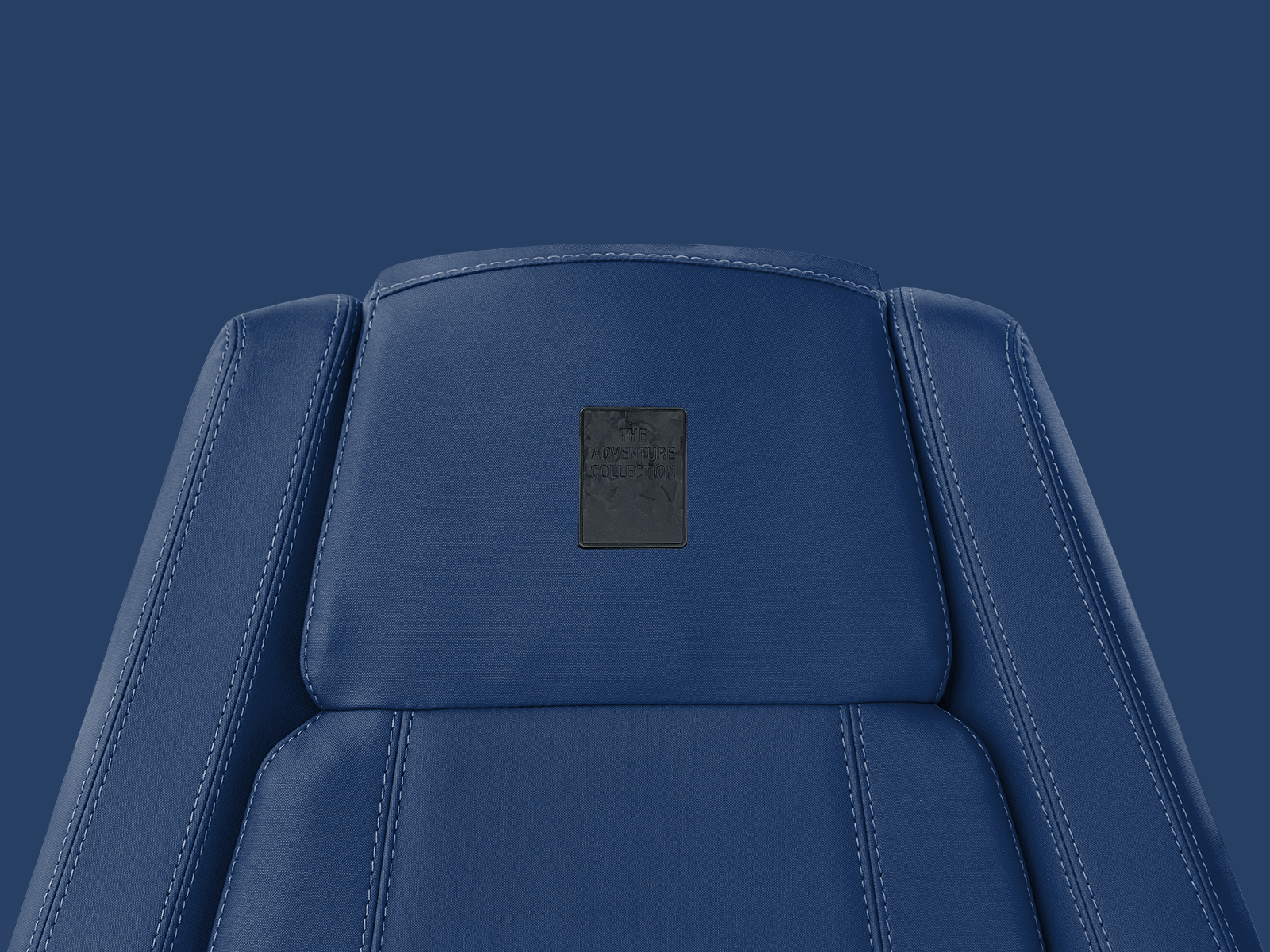

Linetex Sphere

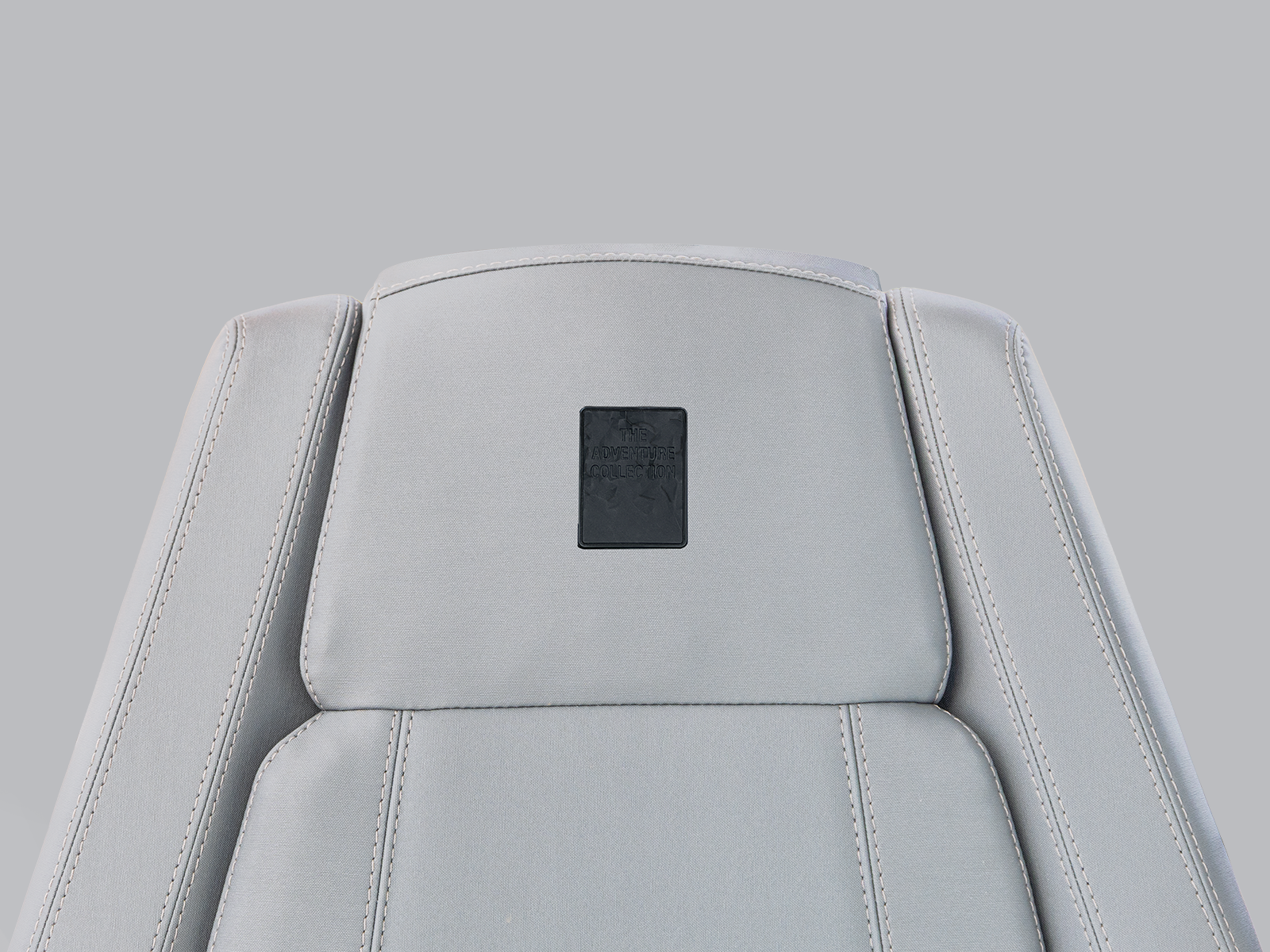

Linetex_Chalk_BG

Linetex Chalk

Taupe

Seine PE Taupe

- Mediterrana Edition Upholstery Option

Natural

Seine PE Natural

- Mediterrana Edition Upholstery Option

Antracite

Seine PE Antracite

- Mediterrana Edition Upholstery Option

Technical Specifications

Hull design Twin stepped 22 degree V "Sharp entry hull"
Outboard engines 300 - 500 hp
Max speed range 50 knots
Category B - Offshore / C - Coastal
Fuel capacity 600l (158,5 gal)
Berths 2 (+2)* persons
Passengers B: 6 persons / C: 9 persons
Draft to props 1,05m (3ft 5.34in)
Overall Length (excl. Engine) 9,31 (30ft 7in)
Beam 3m (9ft 10in)
Construction GRP
Fuel consumption, cruise cruise - 1,8l / nm (1x400hp @ 26 kts)
Weight (excl. Engine) with average options: 2900 kg (6173 lbs)

Equipment

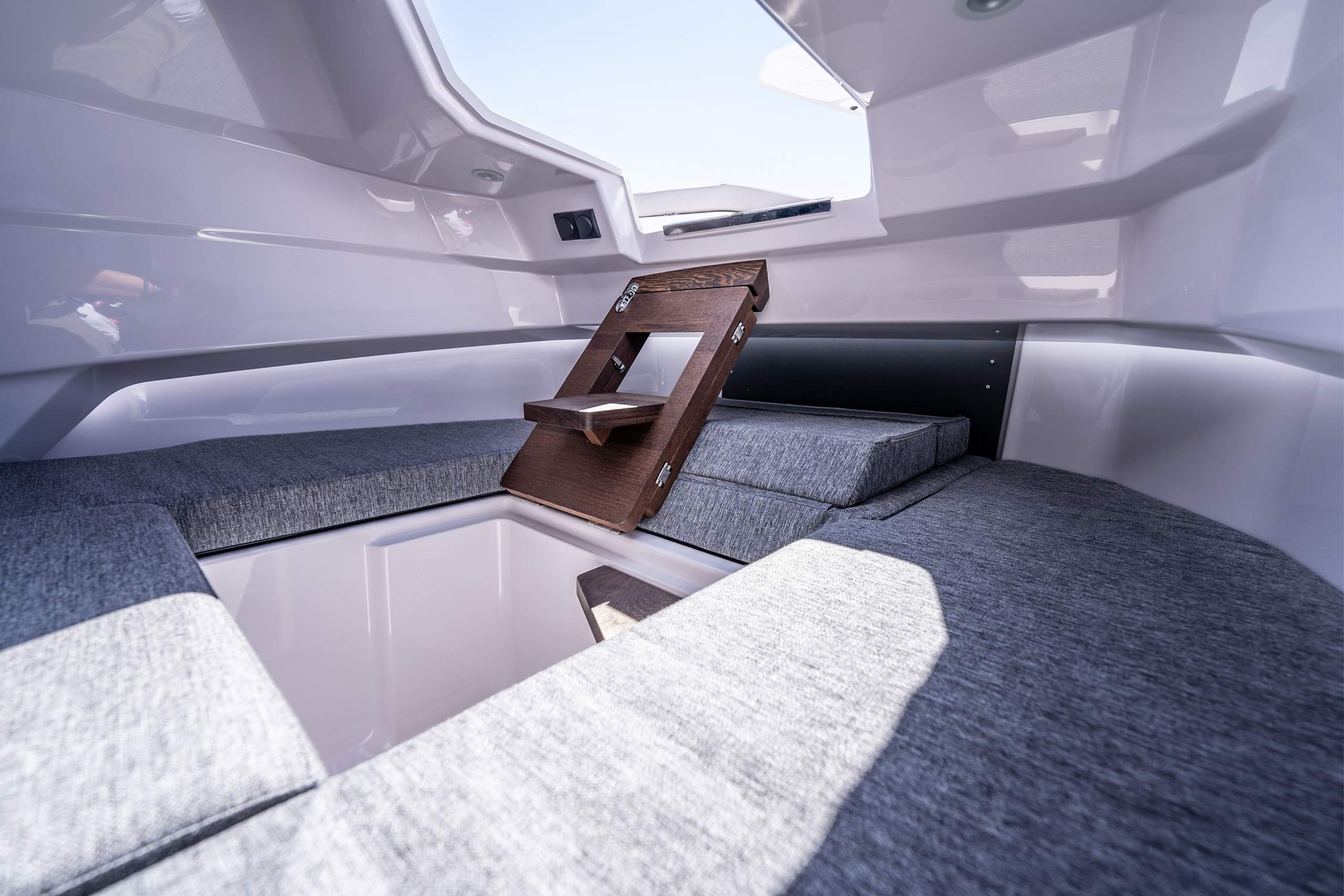

Multicabin
Storage space with skylight and mirror.
Main fuse panel with automatic fuses.
12V USB outlet.
Fire & CO alarms.
2x roof spotlights.
Ventilation grills.
Helm & cockpit
Centered console with side windows and negative windshield.
Stiff laminated roof with reinforcements for outriggers.
Seating area with 6 seats in Silvertex Petrol.
Pilot and co-pilot seats with flip-up bolsters on rotating and sliding swivels.
Storage compartment under aft seats.
4x recessed LED roof lights.
Harbor covers for seats and console.
Integrated windscreen wipers and washer with separate reservoir.
Openable skylight in helm for air circulation.
Foldable anchor light and horn on roof.
Clean helm layout with control switch panel in glass with illuminated buttons.
Steering wheel in leather with Axopar logo.
USB outlet in helm.
Hull & deck
Higher bulwarks compared to the rest of the range.
Hand laminated, twin-stepped hull in Vinyl ester resin for the first coat for osmosis prevention.
Stiffer and more rigid construction compared to previous models
Reduced weight by optimized glass fiber layup.
All PVC sandwich material is replaced by PET recycled materials
No plywood used for constructural purposes.
Hull design with “sharp entry bow” and integrated engine brackets.
Sound insulated hull.
Grey rub rail with rubber end caps.
Axopar 3D signature chrome logo on both sides of hull.
Bow thruster tunnel preparation.
LED navigation lights.
Anchor box in bow.
Walk-around deck layout with open aft deck
Anti-skid finishing on self-draining working deck.
L-sofa bench in bow area with storage space underneath.
All pulpits, side rails, locks, hinges, filler caps & cockpit grab rails in 316 stainless steel
6x cleats around deck.
Hooking points for safety harness around side deck areas
Pulpits on fore deck.
Twin large fender storages on aft deck
Battery / electrical compartment under aft deck storage.
Flagpole.
Fixed 600l fuel tank w. level sensor.
2x electric auto bilge pumps and 2x manual bilge pumps.
